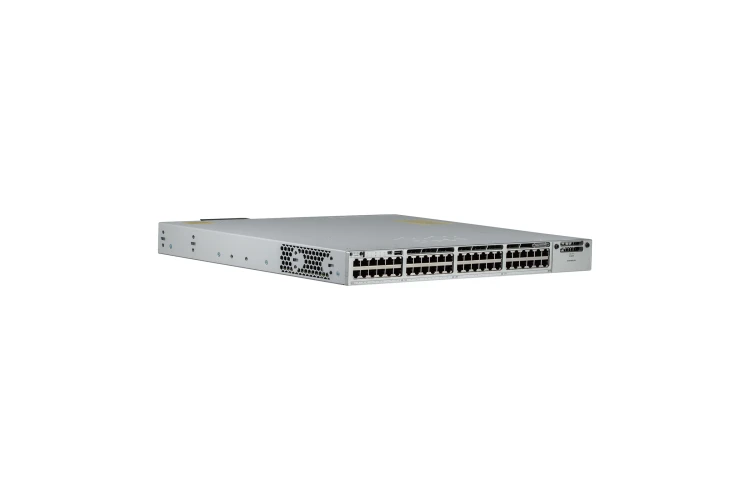

Cisco Catalyst 9300 Series 48 Port UPoE Switch, C9300-48U-E

Model: C9300-48U-E
Cisco Catalyst 9300 Series 48 Port UPoE Switch, C9300-48U-E
Condition
Refurbished $3,519.99
Factory Sealed $7,699.99
Ships In 6 - 7 Business Days
100% Satisfaction Guarantee
Free Returns
Same Day Shipping till 6pm
Quick Specs
Port Quantity48SeriesCatalyst 9300
Rack Units1RUSoftwareCisco IOS XE - Network Essentials
StackingStackWise-480 and StackPowerDeployment PackNo
Hot Swappable ModulesYesHot Swappable FansYes
Hot Swappable Power SupplyYesEnergy EfficientYes
PoE CompatibilityUPoEPort Speed10/100/1000
Ram8 GBGroup OnCondition
Flash16 GBMin Operating Temp23° F
Max Operating Temp113°FJumbo Frame Support9,198 byte
Mac Addresses32KVlan Ids4094
Min Storage Temp-40°FMax Storage Temp158ºF
Operating Humidity5 - 90% (non-condensing)Storage Humidity5 - 90% (non-condensing)
Fans3 Total, RedundantStacking Bandwidth480 Gbps
Unicast Routes24K IPv4 direct routes; 16K iPv6 entriesAvailable PoE Power822W
Forwarding Rate Based On 64-Byte Packets190.47 mppsPower Specifications100-240VAC, 50-60Hz
Operating Temp23°F to 113°FUplink InterfacesModular Uplinks
Max Active VLANS1000Switched Virtual Interfaces (SVI's)1000
BrandCiscoTotal Multi-Gigabit Ethernet PortsNone
Switching Capacity256 GbpsSwitching Capacity W/Stacking736 Gbps
Forwarding Rate W/Stacking547.62 MppsQoS Scale Entries5120
ACL Scale Entries5120
Description

Cisco Catalyst 9300 Series Switch | (48) 10/100/1000 UPOE | Modular Uplinks | Network Essentials | Factory Sealed | C9300-48U-E

Switch comes with power supply and 9300 Series Accessory kit including rack mount kit, power cord, and console cable.

Quick Specs:

Manufacturer Cisco
Model # C9300-48U-E
Condition Factory Sealed
Ports (48) 10/100/1000 UPOE
Rack Units 1RU
Port Speed 10/100/1000
Switching Capacity 256 Gbps
Switching Capacity w/Stacking 736 Gbps
Forwarding Rate 190.48 Mpps
PoE Spec UPOE
Stacking Bandwidth 480 Gbps
Uplink Ports Modular Uplinks
Flash 16GB Flash
MAC Address Table Size 32k
PoE Wattage 822W (default); 1800W (max)
DRAM 8GB DRAM (standard)
Stacking Support StackWise®-480
Fans 3 Field Replacable, Redundant
VLAN IDs available 4094 VLANs
Max Active VLANs 1000
Max Stacking Units 8
Total SVIs 1000
Energy Energy Efficient Ethernet (EEE)
Software Network Essentials
Operating System Cisco IOS XE
Predicted Reliability 227,410 hrs MTBF (Mean Time Before Fail)
Forwarding Rate w/Stacking 547.62 Mpps
Warranty Lifetime


Compatible Accessories:
Modules:

C9300-NM-4G Compatible Transceivers:
C9300-NM-8X Compatible Transceivers:
C9300-NM-2Q Compatible Transceivers:

Transform your network with highly scalable Cisco Catalyst 9300 Series switches. These enterprise class stackable access switches were built with renewed focus on hybrid work. They were designed to provide the power and scale needed for a converged IoT network, to allow for end-to-end visibility, to optimize for mobility, and to allow for proactive management. The innovation in these switches reinforce security and elevate the experience for hybrid workforces.

Features:

  • Up to 1TB of Stacking Bandwidth - The 9300 series of switches feature an incredibly flexible uplink architecture and the industry's highest density stacking bandwidth solution with the inclusion of StackWise-1T which is featured on 9300X switches.
  • Wide Variety of Uplinks - The 9300 switches allow you to have complete flexibility in building your network with flexible and dense uplink offerings. Options include: 100G, 40G, 25G, Multigigabit, 10G, and 1G modular uplinks.
  • Mixed Stacking with Backward Compatibility - The 9300 series of switches allow for mixed stacking with Catalyst 9300X fiber switches as well as 9300X Multigigabit switches.
  • High Volume of Multigigabit Ports - Catalyst 9300X models enable up to 48 mGig ports in standalone and up to 448 mGig ports with an 8 member stack.
