Cisco Catalyst 9000 Series – Reimagine connections, reinforce security, redefine experience

Strengthen your network with scalable, cost-efficient and secure switching from the Cisco Catalyst 9000 series, built for the future of hybrid work.

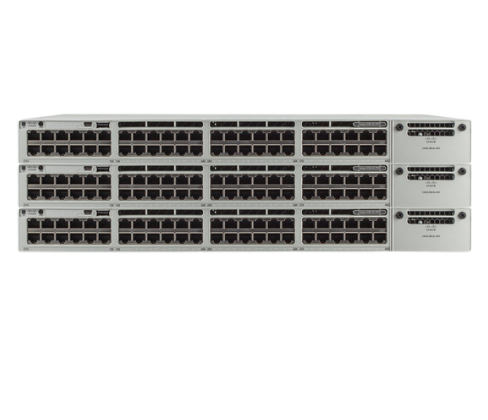

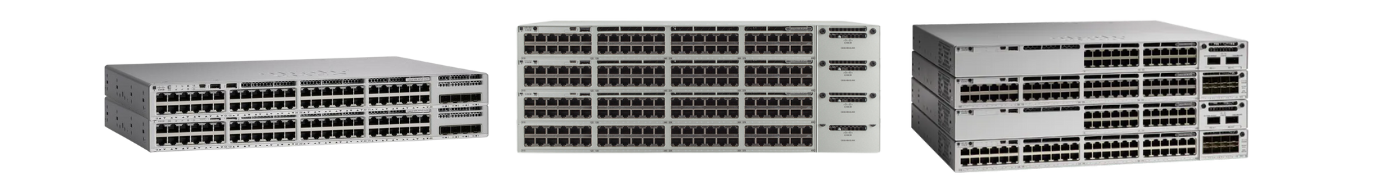

Cisco Catalyst 9000 Series switches stacked

One family, two license tiers

The Catalyst 9000 family is the next generation of enterprise-class switching, designed for security, the Internet of Things (IoT), mobility and multi-cloud. Every 9000 series switch comes with a perpetual license inherent to the device, in one of two flavors.

Network Essentials icon
Network Essentials

A simple but powerful tier with the basics done right: enough bandwidth, security, reliability and management tools to connect employees to the resources they need while keeping costs low. It includes an augmented Network OS license with full Layer 2 and routed access.

Network Advantage icon
Network Advantage

Built for cloud-ready environments, with value-added differentiators: enhanced visibility, automation, management and agility, plus full Layer 3 functionality, segmentation and resiliency.

You can also add a subscription DNA license to unlock DNA Center features. The switch's perpetual license features keep working whether or not a DNA license is claimed.Ask about licensing

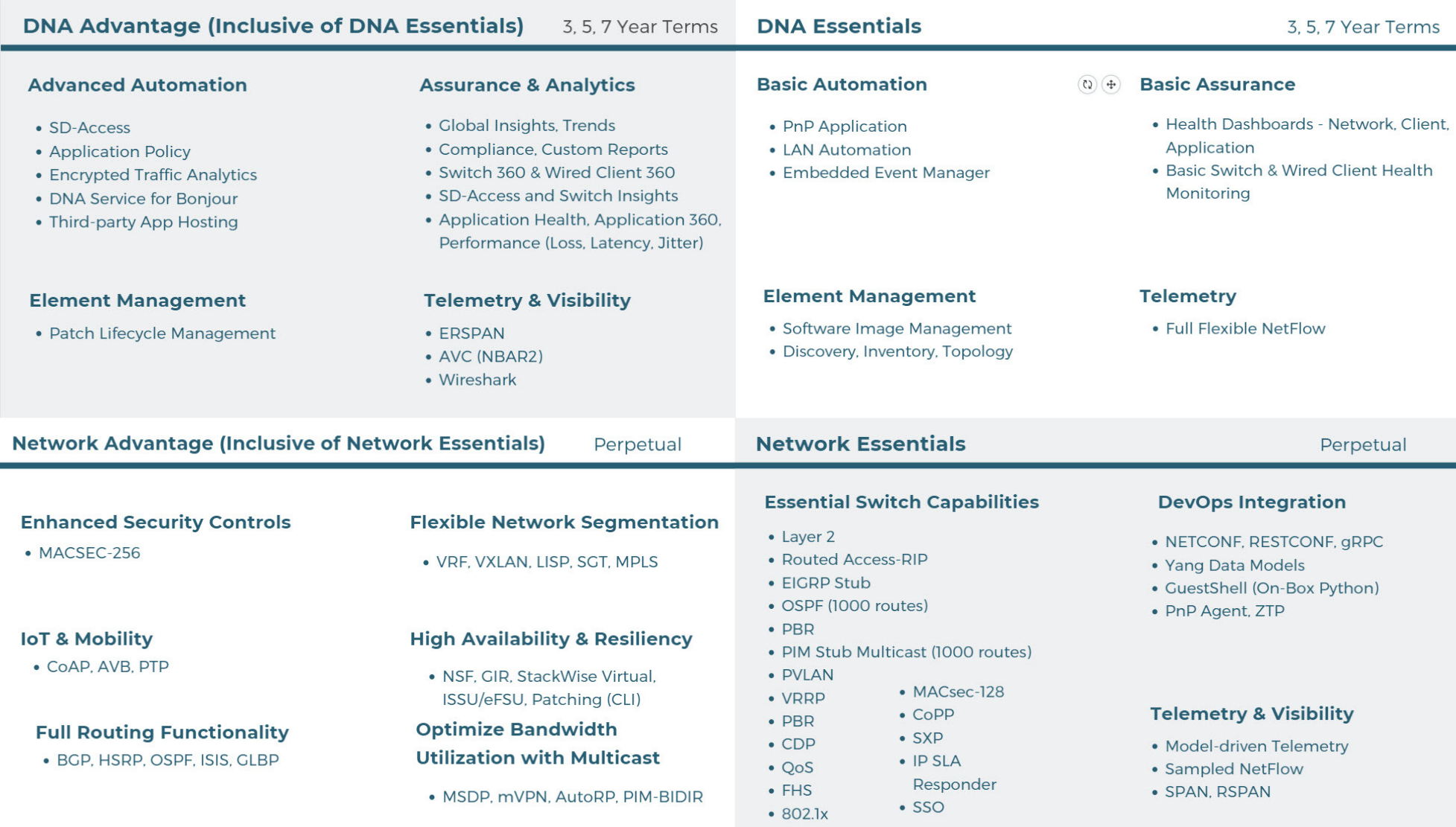

License comparison

Cisco Catalyst 9000 Network Essentials vs Network Advantage license comparison chart
Cisco Catalyst 9000 series switches lineup

Catalyst 9300 series

Cisco's lead stackable enterprise access platform, built for a hybrid world where the workplace is anywhere, endpoints could be anything and applications live all over the place.

Up to 1TB of stacking bandwidth

9300X models feature StackWise-1T, the industry's highest-density stacking bandwidth with the most flexible uplink architecture. Standard 9300 switches offer up to 480 Gbps, and 9300L switches up to 320 Gbps.

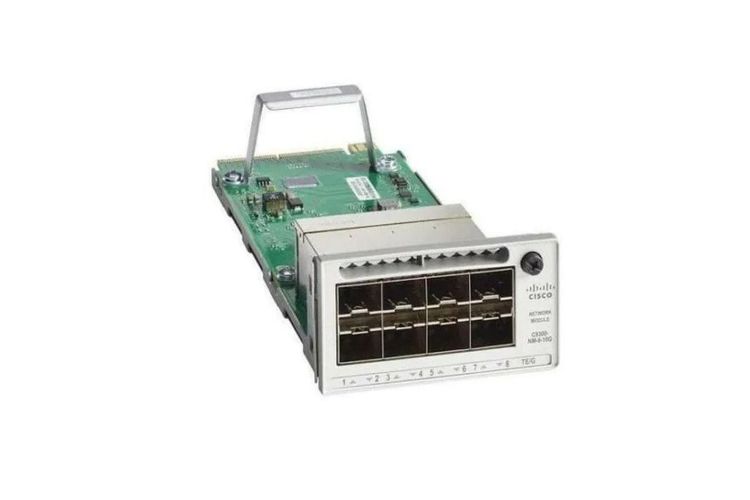

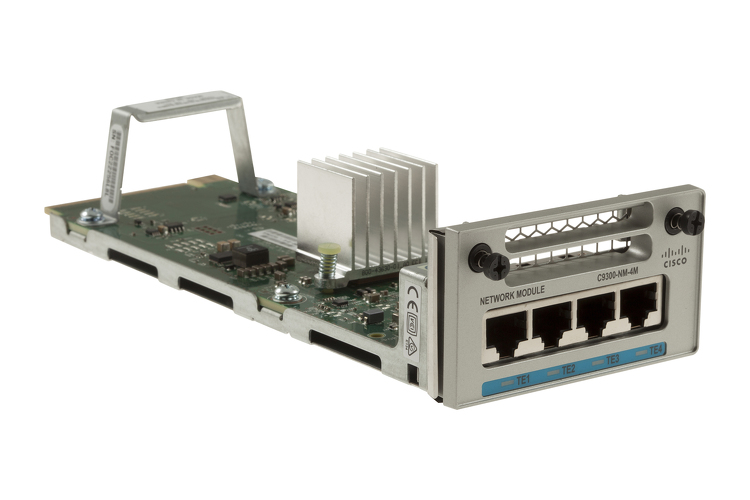

Flexible, dense uplinks

Modular uplinks come in 100G, 40G, 25G, Multigigabit, 10G and 1G.

Most Multigigabit ports

Catalyst 9300X models give you 48 mGig ports standalone and up to 448 mGig ports in an 8-member StackWise-1T stack.

Highest 90W UPOE+ density

Select models deliver 90W UPOE+ on 36 ports standalone and up to 288 ports in an 8-member stack. Great for powering things like LED lighting.

WiFi 6 and 802.11ac Wave 2

Select models support the highest wireless scale for WiFi 6 and 802.11ac Wave 2 access points on a single switch.

Perpetual PoE

PoE power stays on during a switch reboot, so PoE-powered lights, phones, access points and other IoT endpoints stay up.

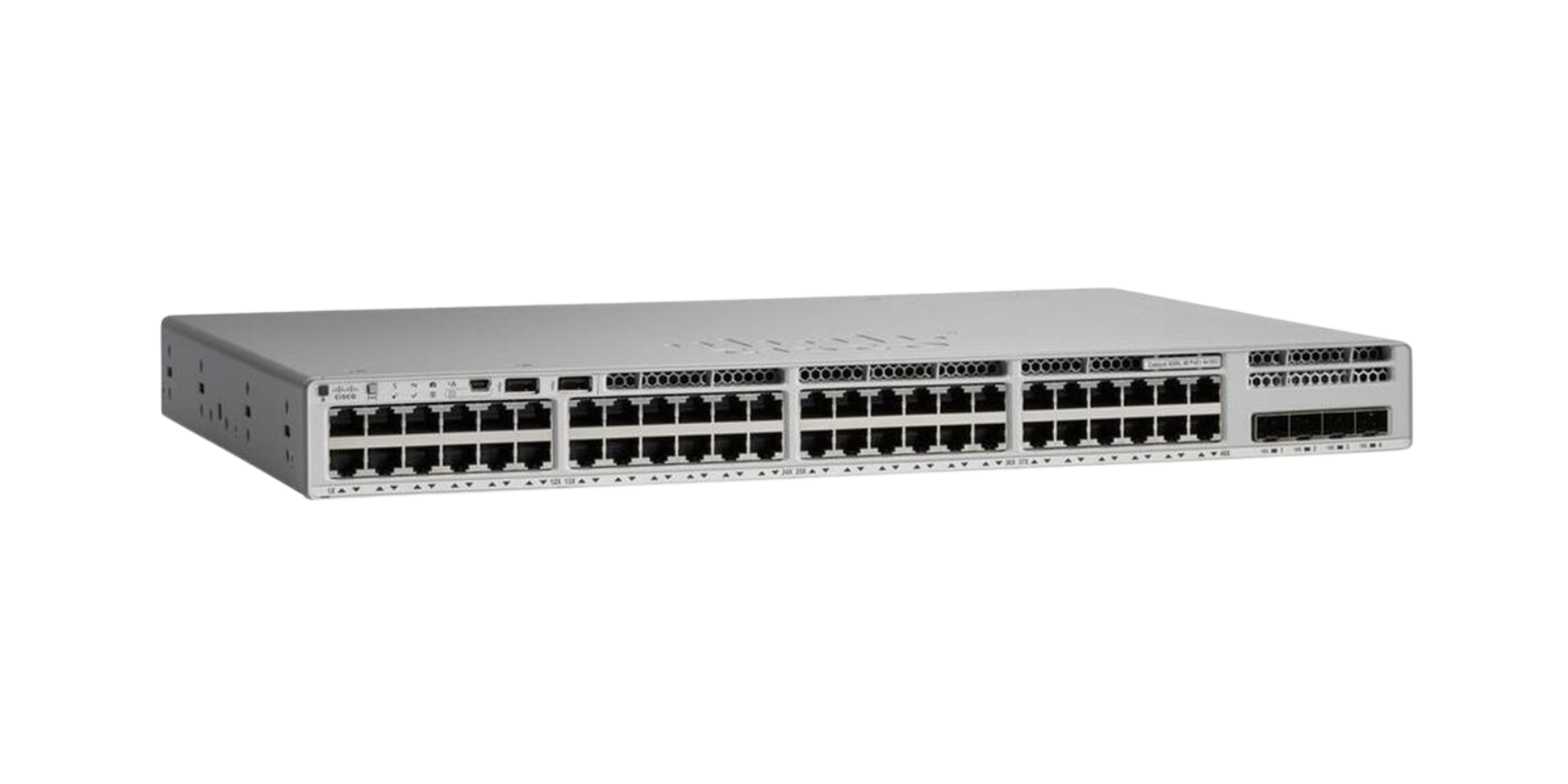

Cisco Catalyst 9300 switch front panel

Pick your 9300

Modular uplinks and big stacking bandwidth, or fixed uplinks for mission-critical branch sites.

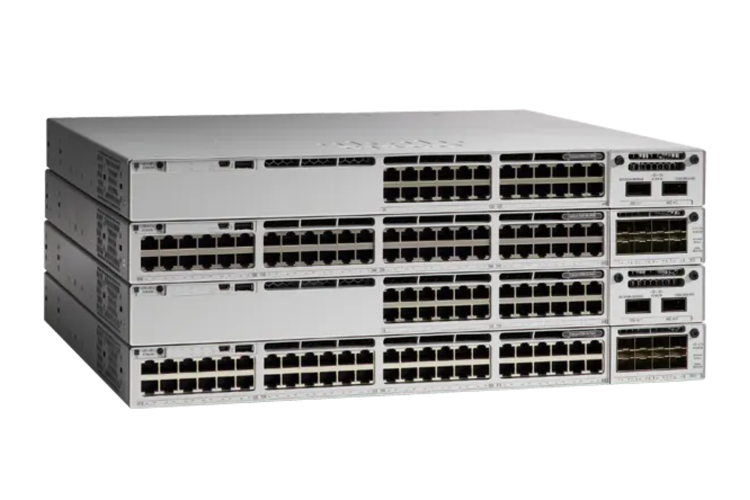

Stack of Cisco Catalyst 9300 switches
Catalyst 9300 switches

The next generation of access-layer stackable switching. Modular uplinks, 480 Gbps stacking bandwidth, StackWise and StackPower, mixed stacking with 9300X, 16GB flash and 8GB DRAM.

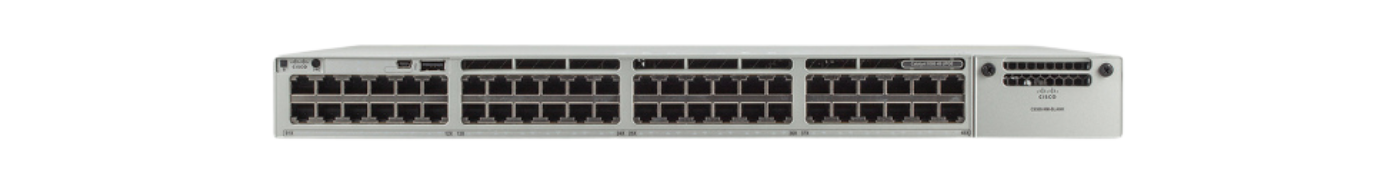

Cisco Catalyst 9300L switch
Catalyst 9300L switches

Excellent for mission-critical branch use. 24 or 48 ports with fixed uplinks, StackWise and 320 Gbps of stacking bandwidth.

Catalyst 9300 model comparison

Ports, PoE budget, switching capacity and forwarding rate for every 9300 model.

C9300-24T
Ports
24 Ports 1G Copper Data Only
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
208 Gbps
Switching Cap. w/Stack
688 Gbps
Forwarding Rate
154.76 Mpps
Fwd. Rate w/Stack
511.9 Mpps
Default AC Power Supply
350W AC
C9300-48T
Ports
48 Ports 1G Copper Data Only
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
256 Gbps
Switching Cap. w/Stack
736 Gbps
Forwarding Rate
190.47 Mpps
Fwd. Rate w/Stack
547.62 Mpps
Default AC Power Supply
350W AC
C9300-24P
Ports
24 Ports 1G Copper Full PoE+
Available PoE (default)
445W
Max PoE
720W
Switching Capacity
208 Gbps
Switching Cap. w/Stack
688 Gbps
Forwarding Rate
154.76 Mpps
Fwd. Rate w/Stack
511.90 Mpps
Default AC Power Supply
715W AC
C9300-48P
Ports
48 Ports 1G Copper Full PoE+
Available PoE (default)
437W
Max PoE
1440W
Switching Capacity
256 Gbps
Switching Cap. w/Stack
736 Gbps
Forwarding Rate
190.47 Mpps
Fwd. Rate w/Stack
547.62 Mpps
Default AC Power Supply
715W AC
C9300-24U
Ports
24 Ports 1G Copper UPOE
Available PoE (default)
830W
Max PoE
1440W
Switching Capacity
208 Gbps
Switching Cap. w/Stack
688 Gbps
Forwarding Rate
154.76 Mpps
Fwd. Rate w/Stack
511.90 Mpps
Default AC Power Supply
1100W AC
C9300-48U
Ports
48 Ports 1G Copper UPOE
Available PoE (default)
822W
Max PoE
1800W
Switching Capacity
256 Gbps
Switching Cap. w/Stack
736 Gbps
Forwarding Rate
190.48 Mpps
Fwd. Rate w/Stack
547.62 Mpps
Default AC Power Supply
1100W AC
C9300-24H
Ports
24 Ports 1G Copper UPOE+
Available PoE (default)
830W
Max PoE
2160W
Switching Capacity
208 Gbps
Switching Cap. w/Stack
688 Gbps
Forwarding Rate
154.76 Mpps
Fwd. Rate w/Stack
511.90 Mpps
Default AC Power Supply
1100W AC
C9300-48H
Ports
48 Ports 1G Copper UPOE+
Available PoE (default)
822W
Max PoE
2722W
Switching Capacity
256 Gbps
Switching Cap. w/Stack
736 Gbps
Forwarding Rate
190.48 Mpps
Fwd. Rate w/Stack
547.62 Mpps
Default AC Power Supply
1100W AC
C9300-24UX
Ports
24 Ports Multigig UPOE (10G/5G/2.5G/1G/100M)
Available PoE (default)
560W
Max PoE
1440W
Switching Capacity
640 Gbps
Switching Cap. w/Stack
1120 Gbps
Forwarding Rate
476.19 Mpps
Fwd. Rate w/Stack
833.33 Mpps
Default AC Power Supply
1100W AC
C9300-48UXM
Ports
48 Ports Multigig UPOE (10G/5G/2.5G/1G/100M)
Available PoE (default)
490W
Max PoE
1590W
Switching Capacity
580 Gbps
Switching Cap. w/Stack
1060 Gbps
Forwarding Rate
431.54 Mpps
Fwd. Rate w/Stack
788.69 Mpps
Default AC Power Supply
1100W AC
C9300-48UN
Ports
48 Ports 5G Copper UPOE
Available PoE (default)
645W
Max PoE
1745W
Switching Capacity
640 Gbps
Switching Cap. w/Stack
1120 Gbps
Forwarding Rate
476.19 Mpps
Fwd. Rate w/Stack
833.33 Mpps
Default AC Power Supply
1100W AC
C9300-24S
Ports
24 Ports 1G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
208 Gbps
Switching Cap. w/Stack
688 Gbps
Forwarding Rate
154.76 Mpps
Fwd. Rate w/Stack
511.90 Mpps
Default AC Power Supply
715W AC
C9300-48S
Ports
48 Ports 1G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
256 Gbps
Switching Cap. w/Stack
736 Gbps
Forwarding Rate
190.47 Mpps
Fwd. Rate w/Stack
547.62 Mpps
Default AC Power Supply
715W AC

Catalyst 9300L model comparison

Fixed-uplink 9300L models side by side.

C9300L-24T-4G
Ports
24 Ports 1G Copper Data Only
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
56 Gbps
Switching Cap. w/Stack
376 Gbps
Forwarding Rate
41.66 Mpps
Fwd. Rate w/Stack
279.76 Mpps
Default AC Power Supply
350W AC
C9300L-48T-4G
Ports
48 Ports 1G Copper Data Only
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
104 Gbps
Switching Cap. w/Stack
424 Gbps
Forwarding Rate
77.38 Mpps
Fwd. Rate w/Stack
315.48 Mpps
Default AC Power Supply
350W AC
C9300L-24T-4X
Ports
24 Ports 1G Copper Data Only
Fixed Uplinks
4 x 10G/1G SFP+
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
128 Gbps
Switching Cap. w/Stack
448 Gbps
Forwarding Rate
95.23 Mpps
Fwd. Rate w/Stack
333.33 Mpps
Default AC Power Supply
350W AC
C9300L-48T-4X
Ports
48 Ports 1G Copper Data Only
Fixed Uplinks
4 x 10G/1G SFP+
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
176 Gbps
Switching Cap. w/Stack
496 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
369.05 Mpps
Default AC Power Supply
350W AC
C9300L-24P-4G
Ports
24 Ports 1G Copper Full PoE+
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
505W
Max PoE
720W
Switching Capacity
56 Gbps
Switching Cap. w/Stack
376 Gbps
Forwarding Rate
41.66 Mpps
Fwd. Rate w/Stack
279.76 Mpps
Default AC Power Supply
715W AC
C9300L-48P-4G
Ports
48 Ports 1G Copper Full PoE+
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
505W
Max PoE
1440W
Switching Capacity
104 Gbps
Switching Cap. w/Stack
424 Gbps
Forwarding Rate
77.38 Mpps
Fwd. Rate w/Stack
315.48 Mpps
Default AC Power Supply
715W AC
C9300L-24P-4X
Ports
24 Ports 1G Copper Full PoE+
Fixed Uplinks
4 x 10G/1G SFP+
Available PoE (default)
505W
Max PoE
720W
Switching Capacity
128 Gbps
Switching Cap. w/Stack
448 Gbps
Forwarding Rate
95.23 Mpps
Fwd. Rate w/Stack
333.33 Mpps
Default AC Power Supply
715W AC
C9300L-48P-4X
Ports
48 Ports 1G Copper Full PoE+
Fixed Uplinks
4 x 10G/1G SFP+
Available PoE (default)
505W
Max PoE
1440W
Switching Capacity
176 Gbps
Switching Cap. w/Stack
496 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
369.05 Mpps
Default AC Power Supply
715W AC
C9300L-24UXG-4X
Ports
24 Ports Cisco UPOE, 8 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 16 Ports 1G
Fixed Uplinks
4 x 10G/1G SFP+
Available PoE (default)
880W
Max PoE
1440W
Switching Capacity
272 Gbps
Switching Cap. w/Stack
592 Gbps
Forwarding Rate
202.38 Mpps
Fwd. Rate w/Stack
440.47 Mpps
Default AC Power Supply
1100W AC
C9300L-48UXG-4X
Ports
48 Ports Cisco UPOE, 12 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 36 Ports 1G
Fixed Uplinks
4 x 10G/1G SFP+
Available PoE (default)
675W
Max PoE
1775W
Switching Capacity
392 Gbps
Switching Cap. w/Stack
712 Gbps
Forwarding Rate
291.66 Mpps
Fwd. Rate w/Stack
529.76 Mpps
Default AC Power Supply
1100W AC
C9300L-24UXG-2Q
Ports
24 Ports Cisco UPOE, 8 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 16 Ports 1G
Fixed Uplinks
2 x 40G
Available PoE (default)
722W
Max PoE
1440W
Switching Capacity
352 Gbps
Switching Cap. w/Stack
672 Gbps
Forwarding Rate
261.90 Mpps
Fwd. Rate w/Stack
500.00 Mpps
Default AC Power Supply
1100W AC
C9300L-48UXG-2Q
Ports
48 Ports Cisco UPOE, 12 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 36 Ports 1G
Fixed Uplinks
2 x 40G
Available PoE (default)
675W
Max PoE
1025W
Switching Capacity
472 Gbps
Switching Cap. w/Stack
792 Gbps
Forwarding Rate
351.19 Mpps
Fwd. Rate w/Stack
589.28 Mpps
Default AC Power Supply
1100W AC

Popular 9300 models

C9300-48P-A: 48 ports PoE+, modular uplinks, Network Advantage. C9300L-48P-4G-E: 48 ports PoE+, 4x1G SFP uplinks, Network Essentials. C9300L-24P-4G-A: 24 ports PoE+, 4x1G fixed uplinks, Network Advantage.

Building out a 9300 stack?

Tell us the port count, PoE budget and uplinks you need and we will quote the whole stack.

Catalyst 9200 series

Simplicity without compromise. The 9200 series helps you simplify complexity, optimize IT and cut operating costs, and it is a natural fit for small to medium and branch deployments.

Up to 160 Gbps stacking

9200 models feature StackWise-160 for up to 160 Gbps of stacking bandwidth. 9200L switches offer up to 80 Gbps.

IEEE 802.3at PoE+

Up to 30W per port. Power devices over the data cable and skip costly extra cabling and circuits.

Fast PoE

Power reaches endpoints as soon as power is restored to the switch, without waiting for the operating system to fully load, so endpoints start up faster.

Pick your 9200

Next-level functionality and scalability for small to medium deployments.

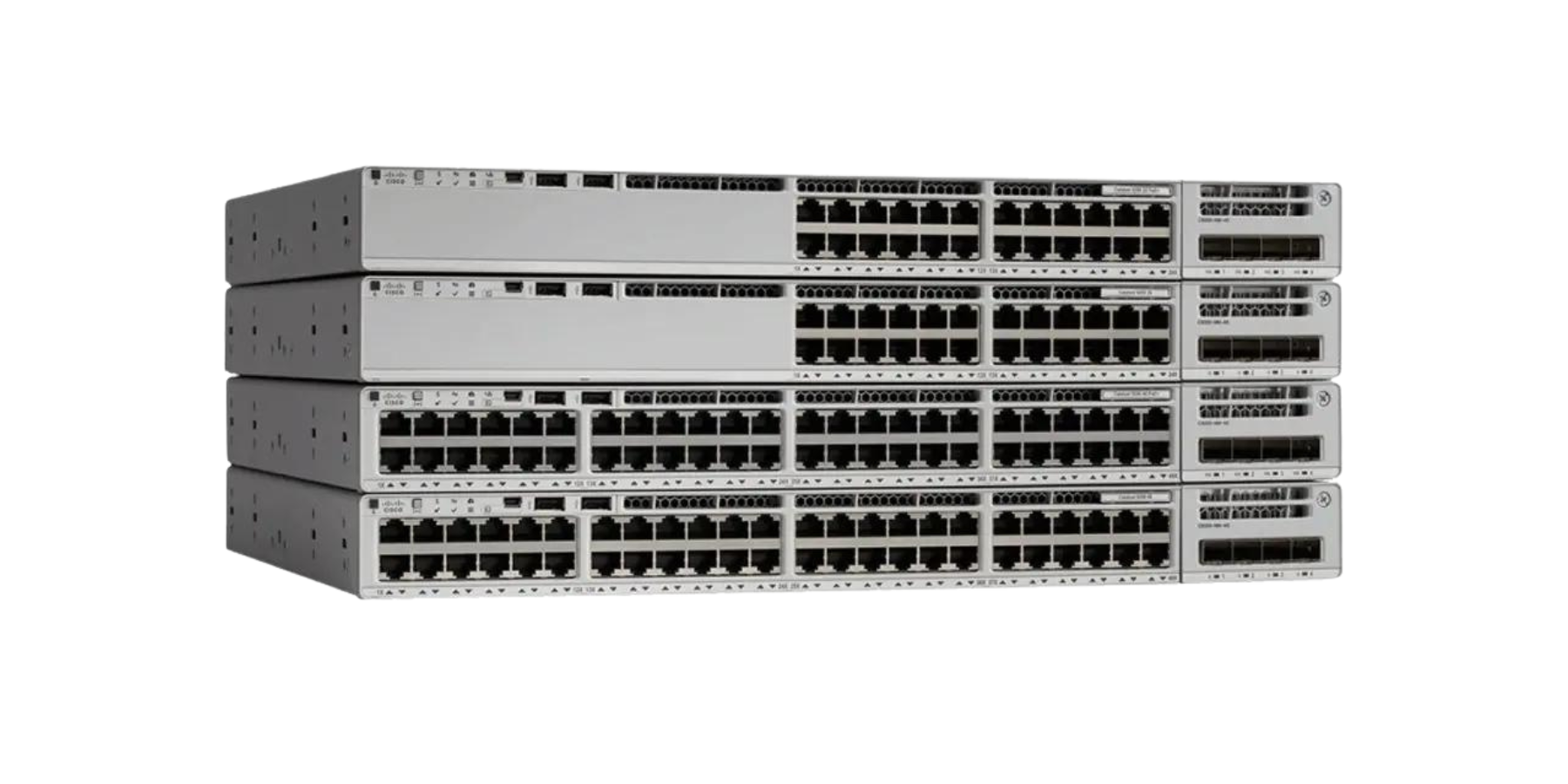

Stack of Cisco Catalyst 9200 switches
Catalyst 9200 switches

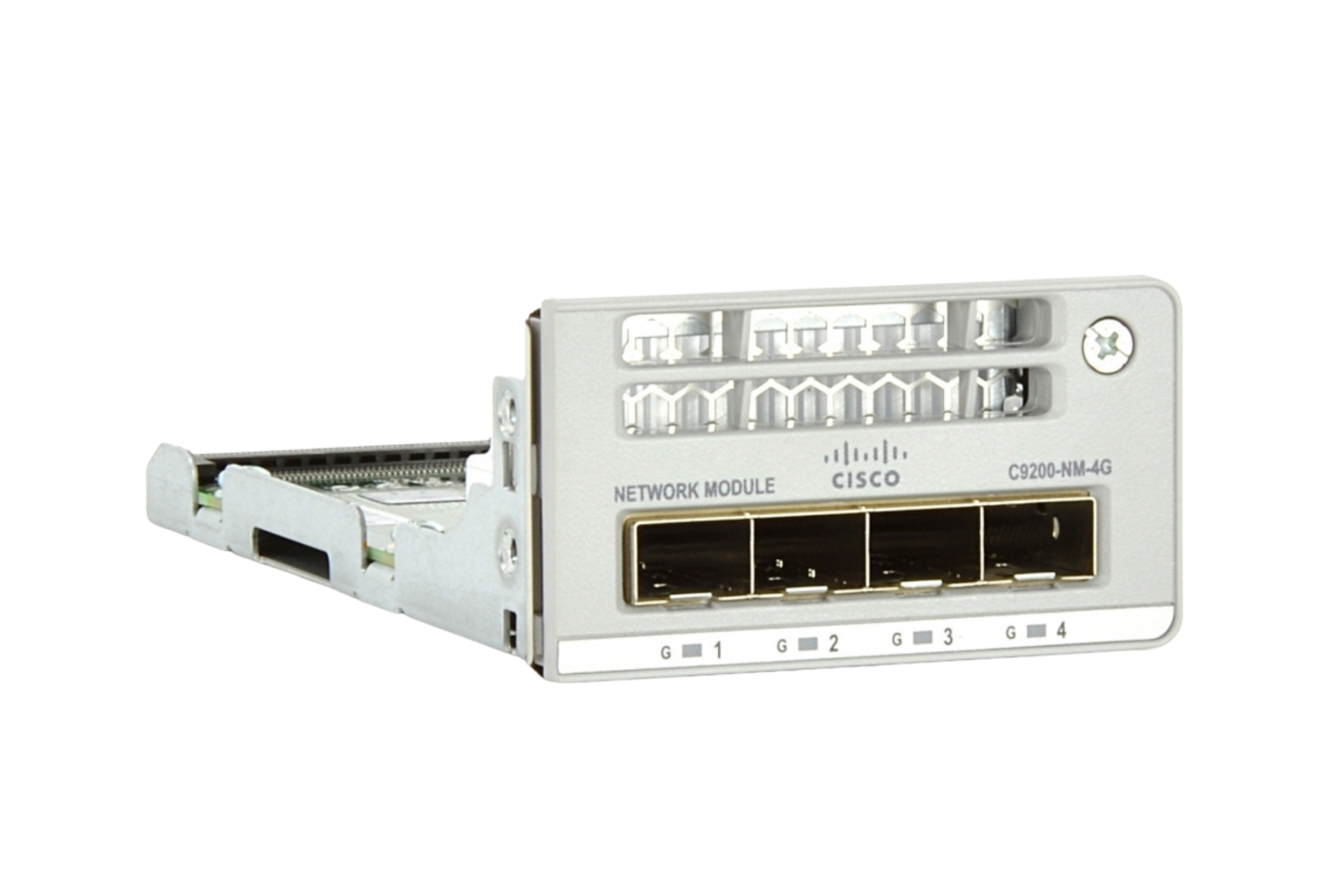

160 Gbps stacking bandwidth, 4GB flash and 4GB DRAM, with modular uplinks.

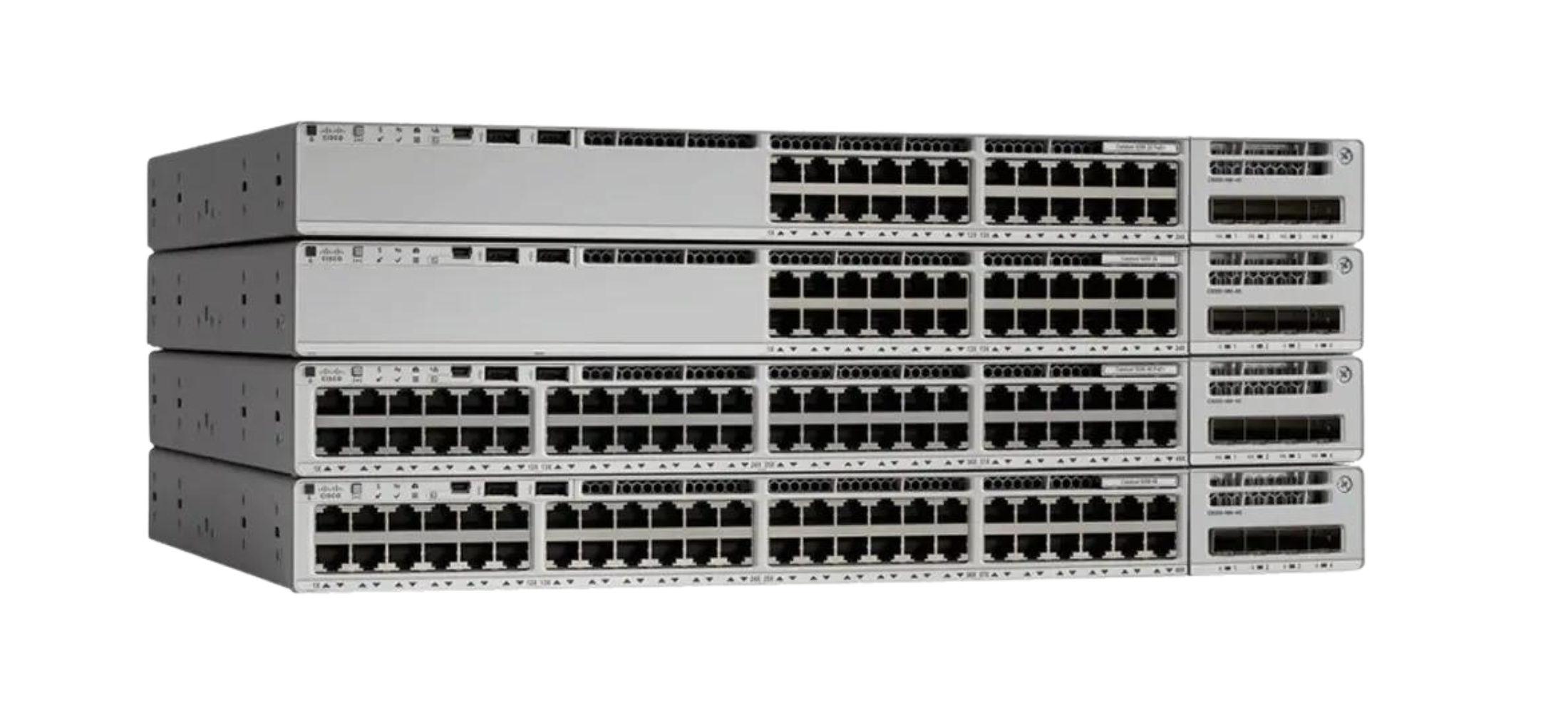

Cisco Catalyst 9200L switches
Catalyst 9200L switches

Fixed uplinks with StackWise-80 and 80 Gbps of stacking bandwidth.

Catalyst 9200 model comparison

Ports, PoE budget, switching capacity and forwarding rate for every 9200 model.

C9200-24T
Ports
24 Ports 1G Copper Data Only
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
128 Gbps
Switching Cap. w/Stack
288 Gbps
Forwarding Rate
95.23 Mpps
Fwd. Rate w/Stack
214 Mpps
Default AC Power Supply
125W AC
C9200-48T
Ports
48 Ports 1G Copper Data Only
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
176 Gbps
Switching Cap. w/Stack
336 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
250 Mpps
Default AC Power Supply
125W AC
C9200-24P
Ports
24 Ports 1G Copper Full PoE+
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
128 Gbps
Switching Cap. w/Stack
288 Gbps
Forwarding Rate
95.23 Mpps
Fwd. Rate w/Stack
214 Mpps
Default AC Power Supply
600W AC
C9200-48P
Ports
48 Ports 1G Copper Full PoE+
Available PoE (default)
740W
Max PoE
1440W
Switching Capacity
176 Gbps
Switching Cap. w/Stack
336 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
250 Mpps
Default AC Power Supply
1000W AC
C9200-24PXG
Ports
24 Ports; 8 x mGig, 16 x 1G, PoE+
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
352 Gbps
Switching Cap. w/Stack
532 Gbps
Forwarding Rate
261.90 Mpps
Fwd. Rate w/Stack
395 Mpps
Default AC Power Supply
600W AC
C9200-48PXG
Ports
48 Ports; 8 x mGig, 40 x 1G, PoE+
Available PoE (default)
740W
Max PoE
1440W
Switching Capacity
400 Gbps
Switching Cap. w/Stack
580 Gbps
Forwarding Rate
297.61 Mpps
Fwd. Rate w/Stack
431 Mpps
Default AC Power Supply
1000W AC
C9200-48PL
Ports
48 Ports 1G Copper Partial PoE+
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
176 Gbps
Switching Cap. w/Stack
336 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
250 Mpps
Default AC Power Supply
600W AC

Catalyst 9200L model comparison

Fixed-uplink 9200L models side by side.

C9200L-24T-4G
Ports
24 Ports 1G Copper Data Only
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
56 Gbps
Switching Cap. w/Stack
136 Gbps
Forwarding Rate
41.66 Mpps
Fwd. Rate w/Stack
101 Mpps
Default AC Power Supply
125W AC
C9200L-48T-4G
Ports
48 Ports 1G Copper Data Only
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
104 Gbps
Switching Cap. w/Stack
184 Gbps
Forwarding Rate
77.38 Mpps
Fwd. Rate w/Stack
137 Mpps
Default AC Power Supply
125W AC
C9200L-24P-4G
Ports
24 Ports 1G Copper PoE+
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
56 Gbps
Switching Cap. w/Stack
136 Gbps
Forwarding Rate
41.66 Mpps
Fwd. Rate w/Stack
101 Mpps
Default AC Power Supply
600W AC
C9200L-48P-4G
Ports
48 Ports 1G Copper Full PoE+
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
740W
Max PoE
1440W
Switching Capacity
104 Gbps
Switching Cap. w/Stack
184 Gbps
Forwarding Rate
77.38 Mpps
Fwd. Rate w/Stack
137 Mpps
Default AC Power Supply
1000W AC
C9200L-48PL-4G
Ports
48 Ports 1G Copper Partial PoE+
Fixed Uplinks
4 x 1G SFP
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
104 Gbps
Switching Cap. w/Stack
184 Gbps
Forwarding Rate
77.38 Mpps
Fwd. Rate w/Stack
137 Mpps
Default AC Power Supply
600W AC
C9200L-24T-4X
Ports
24 Ports 1G Copper
Fixed Uplinks
4 x 10G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
128 Gbps
Switching Cap. w/Stack
208 Gbps
Forwarding Rate
95.23 Mpps
Fwd. Rate w/Stack
155 Mpps
Default AC Power Supply
125W AC
C9200L-48T-4X
Ports
48 Ports 1G Copper
Fixed Uplinks
4 x 10G SFP
Available PoE (default)
No PoE
Max PoE
No PoE
Switching Capacity
176 Gbps
Switching Cap. w/Stack
256 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
190 Mpps
Default AC Power Supply
125W AC
C9200L-24P-4X
Ports
24 Ports 1G Copper Full PoE+
Fixed Uplinks
4 x 10G SFP+
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
128 Gbps
Switching Cap. w/Stack
208 Gbps
Forwarding Rate
95.23 Mpps
Fwd. Rate w/Stack
155 Mpps
Default AC Power Supply
600W AC
C9200L-48P-4X
Ports
48 Ports 1G Copper Full PoE+
Fixed Uplinks
4 x 10G SFP+
Available PoE (default)
740W
Max PoE
1440W
Switching Capacity
176 Gbps
Switching Cap. w/Stack
256 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
190 Mpps
Default AC Power Supply
1000W AC
C9200L-48PL-4X
Ports
48 Ports 1G Copper Partial PoE+
Fixed Uplinks
4 x 10G SFP+
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
176 Gbps
Switching Cap. w/Stack
256 Gbps
Forwarding Rate
130.95 Mpps
Fwd. Rate w/Stack
190 Mpps
Default AC Power Supply
600W AC
C9200L-24PXG-4X
Ports
24 Ports Full PoE+, 8 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 16 Ports 1G
Fixed Uplinks
4 x 10G SFP+
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
272 Gbps
Switching Cap. w/Stack
352 Gbps
Forwarding Rate
214.28 Mpps
Fwd. Rate w/Stack
262 Mpps
Default AC Power Supply
600W AC
C9200L-48PXG-4X
Ports
48 Ports Full PoE+, 12 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 36 Ports 1G
Fixed Uplinks
4 x 10G SFP+
Available PoE (default)
740W
Max PoE
1440W
Switching Capacity
392 Gbps
Switching Cap. w/Stack
472 Gbps
Forwarding Rate
291.66 Mpps
Fwd. Rate w/Stack
351 Mpps
Default AC Power Supply
1000W AC
C9200L-24PXG-2Y
Ports
24 Ports Full PoE+, 8 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 16 Ports 1G
Fixed Uplinks
2 x 25G
Available PoE (default)
370W
Max PoE
740W
Switching Capacity
292 Gbps
Switching Cap. w/Stack
372 Gbps
Forwarding Rate
229.16 Mpps
Fwd. Rate w/Stack
589.28 Mpps
Default AC Power Supply
600W AC
C9200L-48PXG-2Y
Ports
48 Ports Full PoE+, 8 Ports Multigigabit (10G/5G/2.5G/1G/100M) + 40 Ports 1G
Fixed Uplinks
2 x 25G
Available PoE (default)
740W
Max PoE
1440W
Switching Capacity
340 Gbps
Switching Cap. w/Stack
420 Gbps
Forwarding Rate
252.97 Mpps
Fwd. Rate w/Stack
313 Mpps
Default AC Power Supply
1000W AC

Popular 9200 models

C9200-24T-E: 24 data ports, modular uplinks, Network Essentials. C9200L-48T-4X-E: 48 data ports, 4x10G SFP+ uplinks, Network Essentials. C9200L-48P-4X-E: 48 ports PoE+, 4x10G SFP+ uplinks, Network Essentials.

9000 series network modules

C9300-NM-8X: 8-port SFP+ expansion module. C9300-NM-4M: 4-port Multigigabit expansion module. C9200-NM-4G: 4-port 1G SFP expansion module.

Why buy from CK?

Risk-free purchase, hassle-free returns. Awesome is guaranteed.

Lifetime warranty

Everything you buy from CablesAndKits is covered by a lifetime warranty, including a lifetime advance replacement guarantee.

Same-day shipping

Orders are processed and shipped the same day.

30-day money-back guarantee

Take a full month to try your order. If you are not completely satisfied in every way, we will take it back and refund your money.

Ready to move to Catalyst 9000?
Lifetime warranty on every switch, module and cable.
Consent Preferences
