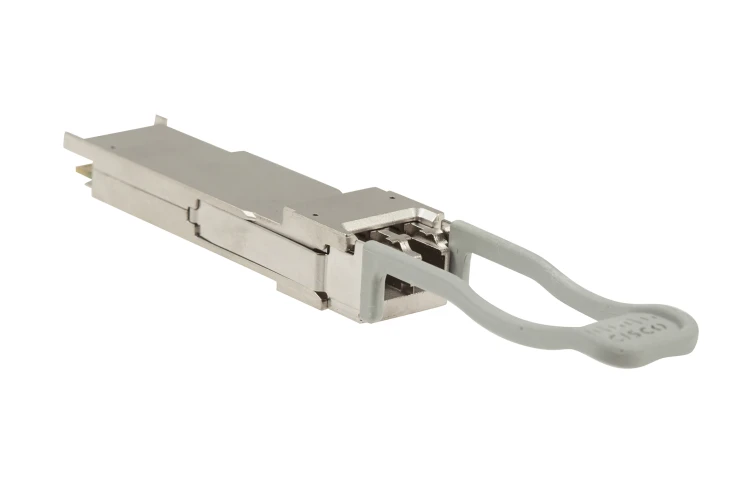

Cisco 40GBase-SR Bi-Directional QSFP Module, QSFP-40G-SR-BD
click here to chat with a CK representative.
DescriptionBack to top
Cisco Original | 40 Gig | Base-SR | QSFP+ | BiDi | Hot-Swappable | QSFP-40G-SR-BD
The QSFP-40G-SR-BD Quad Small Form-Factor Pluggable (QSFP) bi-directional transceiver module is one of Cisco's most innovative products to date. The technology leveraged in these modules allows for 40Gbps of bidirectional connectivity over OM3 or OM4 multimode fiber. These modules utilize two 20Gbps channels which transmit and receive on the same strand at the same time using your existing MMF strand.
|Manufacturer Part #||QSFP-40G-SR-BD|
|Cable Type||Multimode Fiber (MMF)|
|Min Operating Temp||50?? F|
|Max Operating Temp||158?? F|
|Transmit Power||2.4dBm +5 per lane; -7.6 -4 per lane|
|Cabling Distance (MAX)||150m (OM4)|
|Data Transfer Rate||40 Gbps|
|Min Required Fiber Cable||OM3|
|Total Loss Budget||-1.9dB (OM3); 1.5dB (OM4)|
DetailsBack to top
|Data Transfer Rate:||40 Gbps|
