Cisco Catalyst 9300 Switch, Network Essentials, C9300-24T-E

Model: C9300-24T-E

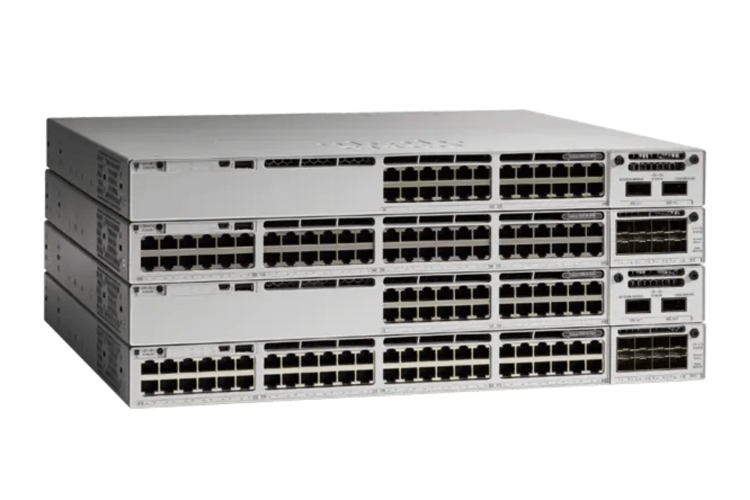

Cisco Catalyst 9300 Switch, Network Essentials, C9300-24T-E
Refurbished $1,799.99
Factory Sealed $3,499.99
Ships In 6 - 7 Business Days

Free Shipping
Free Returns
Same Day Shipping till 6pm
Quick Specs
Port Quantity24SeriesCatalyst 9300
SoftwareCisco IOS XE - Network EssentialsOSI LayerL2/L3
Power Rating350WDimensions1.73 x 17.5 x 17.7
StackingStackWise-480 and StackPowerDeployment PackNo
Hot Swappable ModulesYesHot Swappable FansYes
Hot Swappable Power SupplyYesEnergy EfficientYes
PoE CompatibilityNo PoEPort Speed10/100/1000
Ram8 GBGroup OnCondition
Poe BudgetNo PoEFlash16 GB
Min Operating Temp23° FMax Operating Temp113°F
Switching Bandwidth128 GbpsTotal Vlans4094
Jumbo Frame Support9,198 bytePredicted Reliability314,790 hours
Mac Addresses32KVlan Ids4094
Min Storage Temp-40°FMax Storage Temp158ºF
Operating Humidity5 - 90% (non-condensing)Storage Humidity5 - 90% (non-condensing)
Ac Input Voltage120-230 VACSubtypeGigabit Ethernet
Fans3 Total, RedundantStacking Bandwidth480 Gbps
Unicast Routes24K IPv4 direct routes; 16K iPv6 entriesAvailable PoE PowerNo PoE
Forwarding Rate Based On 64-Byte Packets154.76 mppsPower Specifications100-240VAC, 50-60Hz
Operating Temp23°F to 113°FUplink InterfacesModular Uplinks
Max Active VLANS1000Switched Virtual Interfaces (SVI's)1000
BrandCiscoTotal Multi-Gigabit Ethernet PortsNone
Max PoE PowerNo PoESwitching Capacity208 Gbps
Switching Capacity W/Stacking688 GbpsForwarding Rate W/Stacking511.90 Mpps
QoS Scale Entries5120ACL Scale Entries5120
Rack Units Consumed1RU

Cisco Catalyst 9300 Series Switch | (24) 10/100/1000 | Modular Uplinks | Network Essentials | Factory Sealed | C9300-24T-E

Switch comes with power supply and 9300 Series Accessory kit including rack mount kit, power cord, and console cable.

Lifetime Warranty Badge

Quick Specs:

Manufacturer Cisco
Model # C9300-24T-E
Condition Factory Sealed
Ports (24) 10/100/1000
Rack Units 1RU
Port Speed 10/100/1000
Switching Capacity 208 Gbps
Switching Capacity w/Stacking 688 Gbps
Forwarding Rate 154.76 Mpps
PoE Spec No PoE
Stacking Bandwidth 480 Gbps
Uplink Ports Modular Uplinks
Flash 16GB Flash
MAC Address Table Size 32k
PoE Wattage No PoE
DRAM 8GB DRAM (standard)
Stacking Support StackWise®-480
Fans 3 Field Replacable, Redundant
VLAN IDs available 4094 VLANs
Max Active VLANs 1000
Max Stacking Units 8
Virtual Networks 256
Energy Energy Efficient Ethernet (EEE)
Software Network Essentials
Operating System Cisco IOS XE
Predicted Reliability 314,790 hrs MTBF (Mean Time Before Fail)
Forwarding Rate w/Stacking 511.90 Mpps
Warranty Lifetime

Compatible Accessories:

C9300-NM-4G Compatible Transceivers:
C9300-NM-8X Compatible Transceivers:
C9300-NM-2Q Compatible Transceivers:

Transform your network with highly scalable Cisco Catalyst 9300 Series switches. These enterprise class stackable access switches were built with renewed focus on hybrid work. They were designed to provide the power and scale needed for a converged IoT network, to allow for end-to-end visibility, to optimize for mobility, and to allow for proactive management. The innovation in these switches reinforce security and elevate the experience for hybrid workforces.


  • Up to 1TB of Stacking Bandwidth - The 9300 series of switches feature an incredibly flexible uplink architecture and the industry's highest density stacking bandwidth solution with the inclusion of StackWise-1T which is featured on 9300X switches.
  • Wide Variety of Uplinks - The 9300 switches allow you to have complete flexibility in building your network with flexible and dense uplink offerings. Options include: 100G, 40G, 25G, Multigigabit, 10G, and 1G modular uplinks.
  • Mixed Stacking with Backward Compatibility - The 9300 series of switches allow for mixed stacking with Catalyst 9300X fiber switches as well as 9300X Multigigabit switches.
  • High Volume of Multigigabit Ports - Catalyst 9300X models enable up to 48 mGig ports in standalone and up to 448 mGig ports with an 8 member stack.


Cisco Catalyst 9000 Series Overview
All About Cisco Catalyst 9200 Series Switches
Difference Between Cisco 9200 and 9300 Series Switches
