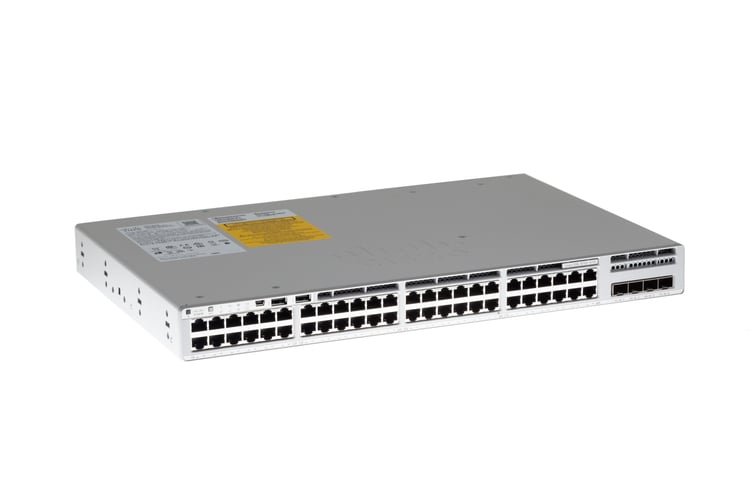

Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials, Refurbished, C9200L-48P-4X-E
|Port Quantity||48||Series||Catalyst 9200|
|Rack Units||1RU||Software||Cisco IOS XE - Network Essentials|
|OSI Layer||L2||Stacking||Data Only (StackWise)|
|Deployment Pack||No||Hot Swappable Modules||No|
|Hot Swappable Fans||No||Hot Swappable Power Supply||No|
|Energy Efficient||Yes||PoE Compatibility||PoE+|
|Port Speed||10/100/1000||Ram||2 GB|
|Min Operating Temp||23° F||Max Operating Temp||113°F|
|Jumbo Frame Support||9,198 byte||Predicted Reliability||346,270 hours|
|Mac Addresses||16K||Vlan Ids||4K|
|Min Storage Temp||-40°F||Max Storage Temp||158ºF|
|Operating Humidity||5 - 90% (non-condensing)||Storage Humidity||5 - 90% (non-condensing)|
|Ac Input Voltage||100 to 240 VAC||Fans||2 Total, Redundant|
|Stacking Bandwidth||80 Gbps||Unicast Routes||10K IPv4 direct routes; 2K IPv6 entries|
|Available PoE Power||740W||Forwarding Rate Based On 64-Byte Packets||130.95 mpps|
|Power Specifications||100-240VAC, 50-60Hz||Operating Temp||23°F to 113°F|
|Uplink Interfaces||4 x 10G SFP+||Max Active VLANS||1024|
|Switched Virtual Interfaces (SVI's)||512||Brand||Cisco|
|DRAM||2 GB||Total Multi-Gigabit Ethernet Ports||None|
|Max PoE Power||1440W||Switching Capacity||176 Gbps|
|Switching Capacity W/Stacking||256 Gbps||Forwarding Rate W/Stacking||190 mpps|
|QoS Scale Entries||1000||ACL Scale Entries||1500|
Cisco Catalyst 9200 Series Switch | (48) 10/100/1000 PoE+ Ports | 4 x 10G Uplink | Network Essentials | Refurbished | C9200L-48P-4X-E
Unit comes with (1) power supply and (2) fans installed. Includes rack mount kit, power cord, and console cable.
|Ports||48 Full PoE+ + 4 x 1/10G Uplink|
|Uplink Ports||4 x 10G Fixed Uplink|
|Switching Capacity||176 Gbps|
|Switching Capacity w/Stacking||256 Gbps|
|Forwarding Rate||130.95 Mpps|
|Forwarding Rate w/Stacking||190 Mpps|
|PoE Wattage||740W (default); 1440W (max)|
|Stacking Bandwidth||80 Gbps|
|Max Stacking Units||8|
|DRAM||2GB DRAM (standard)|
|MAC Address Table Size||16k|
|Fans||(2) Fixed Redundant|
|VLAN IDs available||4096 VLANs|
|Max Active VLANs||1024|
|Energy||Energy Efficient Ethernet (EEE)|
|Operating System||Cisco IOS XE|
|Predicted Reliability||346,270 hrs MTBF (Mean Time Before Fail)|
- Fixed (4 x 10G SFP+)
The following transceiver modules are compatible with Cisco Catalyst C9200L-48P-4X-E switches:
In the market for a switch that can handle all of your networking needs? Meet the Cisco C9200L-48P-4X-E! This powerful switch comes with 48 PoE+ ports and 4 x 10G SFP+ uplink ports, making it perfect for connecting all your network devices and servers. Whether you're running a small business or a large enterprise, the Cisco C9200L-48P-4X-E is a reliable choice for all your networking needs. With its high performance, advanced security features, and easy-to-use management tools, this switch will help you take your network to the next level.
One of the key benefits of the C9200L-48P-4X-E is its ability to stack up to eight switches together. Like all 9200L switches, this switch allows for up to 80 Gbps of stacking bandwidth allowing you to easily expand your network as your business grows, without having to worry about managing each switch individually.
- Up to 80 Gb of Stacking Bandwidth - The 9200L switches feature StackWise®-80 technology allowing for up to 80 Gbps of stacking bandwidth. This technology provides for faster and more efficient data transfer between switches as it enables users to manage a stack of switches as a single virtual switch. The 80G of bandwidth means users can easily transfer large amounts of data between stacked switches without experiencing frustrating lags or delays. Note: Fixed stacking is not supported. You cannot stack 9200L (fixed modules) switches with 9200 (modular uplink) switches or with other series of Catalyst switches.
- Support for Dual Redundancy - These switches offer a high level of network availability thanks to support for dual redundant fans and power supplies. Dual redundancy allows users to work with confidence knowing that if one of their power supplies or fans fail, the backup will take over and the switch will continue to work seamlessly. This is incredibly important for business-critical environments where even a few minutes of downtime can have far reaching effects.
- Up to 1440W PoE+ - This switch features up to 740W of default PoE+ and can reach up to a max of 1440W of PoE+ when a second power supply is added, allowing for ample power to support a large number of PoE-enabled devices including VoIP phones, access points, security cameras and more. The default of 740W of PoE+ can provide up to 30W of power per port for up to 24 devices simultaneously, while the max of 1440W can provide up to 30W of power per port for all 48 ports.
