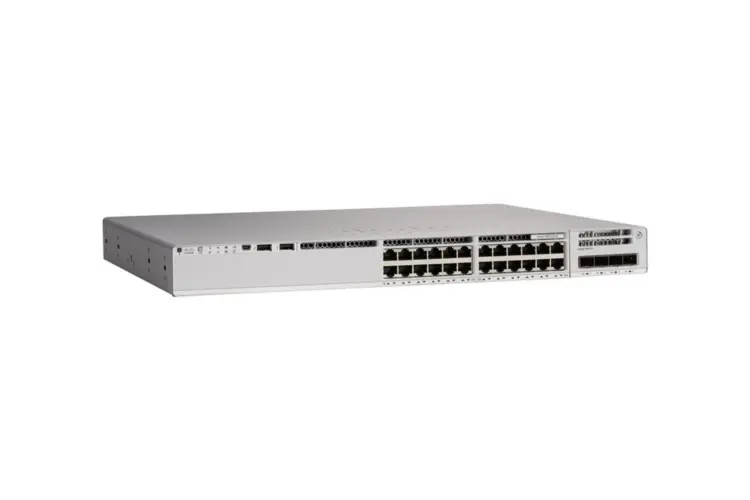

Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials, Refurbished, C9200L-24P-4G-E

Model: C9200L-24P-4G-E
Catalyst 9200L 24-port PoE+ 4x1G uplink Switch, Network Essentials, Refurbished, C9200L-24P-4G-E
Condition
Refurbished $1,699.99
Factory Sealed $2,049.99
Ships In 6 - 7 Business Days
100% Satisfaction Guarantee
Free Returns
Same Day Shipping till 6pm
Quick Specs
Port Quantity24SeriesCatalyst 9200
SoftwareCisco IOS XE - Network EssentialsOSI LayerL2
StackingData Only (StackWise)Deployment PackNo
Hot Swappable ModulesNoHot Swappable FansNo
Hot Swappable Power SupplyNoEnergy EfficientYes
PoE CompatibilityPoE+Port Speed10/100/1000
Ram2 GBGroup OnCondition
Flash4GBMin Operating Temp23° F
Max Operating Temp113°FJumbo Frame Support9,198 byte
Predicted Reliability392,210 hoursMac Addresses16K
Vlan Ids4KMin Storage Temp-40°F
Max Storage Temp158ºFOperating Humidity5 - 90% (non-condensing)
Storage Humidity5 - 90% (non-condensing)Ac Input Voltage100 to 240 VAC
Fans2 Total, RedundantStacking Bandwidth80 Gbps
Unicast Routes8K IPv4 direct routes; 1500 IPv6 entriesAvailable PoE Power370W
Forwarding Rate Based On 64-Byte Packets41.66 mppsPower Specifications100-240VAC, 50-60Hz
Operating Temp23°F to 113°FUplink Interfaces4 x SFP
Max Active VLANS1024Switched Virtual Interfaces (SVI's)512
BrandCiscoDRAM2 GB
Total Multi-Gigabit Ethernet PortsNoneMax PoE Power740W
Switching Capacity56 GbpsSwitching Capacity W/Stacking136 Gbps
Forwarding Rate W/Stacking101 mppsQoS Scale Entries1000
ACL Scale Entries1500Rack Units Consumed1RU
Description

Cisco Catalyst 9200 Series Switch | (24) 10/100/1000 PoE+ Ports | 4 x 1G Uplink | Network Essentials | Refurbished | C9200L-24P-4G-E

Switch comes with 9200 Series Accessory kit including rack mount kit, power cord, and console cable.

Quick Specs:

Manufacturer Cisco
Model # C9200L-24P-4G-E
Condition Refurbished
Ports 24 Full PoE+
Rack Units 1RU
Port Speed 10/100/1000
Switching Capacity 56 Gbps
Switching Capacity w/Stacking 136 Gbps
Forwarding Rate 41.66 Mpps
PoE Spec PoE+
Stacking Bandwidth 80 Gbps
Uplink Ports 4 x 1G
Flash 4GB Flash
MAC Address Table Size 16k
PoE Wattage 370W (default); 740W (max)
DRAM 2GB DRAM (standard)
Stacking Support StackWise®-80
Fans Fixed Redundant
VLAN IDs available 4096 VLANs
Max Active VLANs 1024
Max Stacking Units 8
Total SVIs 512
Energy Energy Efficient Ethernet (EEE)
Software Network Essentials
Operating System Cisco IOS XE
Predicted Reliability 392,210 hrs MTBF (Mean Time Before Fail)
Forwarding Rate w/Stacking 101 Mpps
Warranty Lifetime

C9200L-24P-4G-E Compatible Accessories:

Expansion Modules:
  • Fixed Modules (4 x 1G SFP)
C9200-NM-4X Compatible Transceiver Modules:

Upgrade your network and power all your devices with the Cisco Catalyst C9200L-24P-4G-E switch! Whether you're running a small business or a mid-sized enterprise, this powerful and versatile switch has got you covered! Each of the 24 ports is capable of providing up to 30W of PoE+ power, allowing you to connect a wide range of devices from IP phones and cameras to access points and other IoT devices. This fixed module switch includes 4 x 1GB uplink ports to give you all the bandwidth you need to keep everything running smoothly.

Features:

  • Up to 740 PoE+ - This switch allows you to power and connect your devices without the need for additional power outlets or adapters. It offers up to 370W of default PoE power and up to 740W with a secondary power supply, making it easy and cost-effective to power all your devices.
  • Up to 80 Gb of Stacking Bandwidth - The 9200L switches feature StackWise®-80 technology allowing for up to 80 Gbps of stacking bandwidth. This technology enables users to manage a stack of switches as a single virtual switch. Note: Fixed stacking is not supported. You cannot stack 9200L (fixed modules) switches with 9200 (modular uplink) switches or with other series of Catalyst switches.
  • High Speed Connectivity - This switch features 4 x 1GB Ethernet uplink ports which provide lightning-fast connectivity to your network. You'll never be without fast and reliable data transfer!
