How to Measure Ethernet Cable Performance: A Practical Guide for Everyday Users
Slow downloads, lagging video calls, and interrupted backups aren’t always your ISP’s fault. In many cases, the issue lies within the very cable linking your device to the network. While routers and modems get plenty of attention, Ethernet cables are often ignored, despite being the literal backbone of wired connectivity.
These cables come in various categories and quality levels, and over time, even high-grade wiring can degrade or underperform. If you're upgrading your internet plan but still stuck with old patch cords, you may be bottlenecking your network.
This guide walks you through cable testing, diagnostics, and performance troubleshooting, so you can take control of your network speed and stability without guessing.
Testing Tools and Techniques for Everyday Cable Diagnostics
You don’t need a telecom lab to start testing. Whether you’re running a basic speed test or doing a professional-grade certification, having the right equipment makes all the difference.
Let’s break down the best tools for accurate testing and diagnosis.
Basic Cable Testers: Quick Wins for Continuity and Wiring Checks
A simple tester confirms whether the cable is correctly wired and structurally intact. These devices test for:
- Continuity (verifies end-to-end signal path)
- Proper wire pairing (critical for signal balance)
- Shorts or open circuits (from wear or bad crimps)
These tools are ideal if you are crimping your cables or using older patch cords. They don’t measure performance, but they rule out obvious failures fast.
Cable Certifiers: Go Beyond Basics with Full Electrical Evaluation
When speed, signal integrity, and compliance matter, such as in offices or structured wiring environments, cable certifiers are your go-to solution for identifying and addressing Data Transfer Rate Limitations by Cable Type.
- Signal attenuation and crosstalk detection
- Return loss and interference susceptibility
- Compliance verification for Cat5e, Cat6, and Cat6A standards
Certifiers not only ensure that cables are built correctly, but also that they meet the electrical requirements for your intended bandwidth.
Software-Based Testing: Simulate Real-World Network Conditions
Tools like iPerf and Speedtest.net help simulate high-traffic environments. These tools let you check:
- Bandwidth measurement (up/down speeds)
- Latency test (response time)
- Jitter and packet loss under load
Advanced users can also run Wireshark to inspect packets and identify deeper issues like TCP retransmits or malformed frames helpful for network diagnostics in more complex environments.
Inline Testers and Loopback Plugs: Live Cable Behavior in Action
If you're working in dynamic environments where cables connect active hardware, inline testers shine. These tools measure signal quality while traffic flows, catching transient errors and EMI issues.
Loopback plugs, on the other hand, mimic a device on the other end of the cable, ideal for validating longer runs or wall drops where only one end is accessible.
Practical Insight: Swapping cables without testing is guesswork. Basic testers catch physical flaws. Certifiers reveal spec violations. But only inline testing under real load reveals live issues like interference or overheating that other tools miss.
Key Performance Metrics to Evaluate Ethernet Cable Health
Knowing what to measure is just as important as having the tools. Here’s a breakdown of what defines good (or bad) Ethernet cable performance.
Speed and Bandwidth: What Your Cable Can Handle
Every cable has a max throughput. For example:
- Cat5e: Up to 1 Gbps at 100 meters
- Cat6: Up to 10 Gbps (up to 55 meters reliably)
- Cat6A: True 10 Gbps up to 100 meters
Understanding Ethernet cable speeds is crucial if you're experiencing delays, slow file transfers, or video buffering. The bottleneck might be your cable, not your provider. Always check the cable category and length to ensure it’s compatible with your network’s speed requirements.
Latency and Jitter: The Silent Killers in Video and Voice
Latency is the time a packet takes to reach its destination. Jitter is how much that time fluctuates. High jitter ruins VoIP and streaming, even if the bandwidth is high.
Packet Loss: When Bits Don’t Make It
Missing packets can cause failed downloads, dropouts in video calls, or delayed app responses. Common culprits include:
- Physical damage to copper strands
- EMI from nearby appliances
- Exceeding the max cable length or poor shielding
Real-World Insight: In a recent office install, upgrading from Cat5e to Cat6A immediately eliminated packet loss and jitter in Zoom calls caused by nearby HVAC interference. Always match cable quality with environmental conditions.
Diagnosing Network Problems Linked to Cable Issues
Think your connection issues are software-based? Don’t rule out cabling. Here’s what cable-related problems often look like in practice:
- The internet plan is 1 Gbps, but you’re stuck at 100 Mbps? Likely a legacy Cat5 or a miswired jack
- Frequent disconnections or flaky pings? EMI, corroded connectors, or unshielded cables near power lines
- One room slower than the others? That could be signal attenuation in Ethernet cables, especially if the cable run is too long or uses poor-quality materials.
Pro Tip: Always isolate by substitution. Swap cables, ports, and devices to verify if the issue follows the hardware or the infrastructure.
Real-World vs. Theoretical Cable Performance: Why Specs Don’t Tell the Full Story
Even premium cables don’t perform at their rated speeds in suboptimal conditions. Here’s what holds them back:
Cable Length and Category Limits
Cat6 supports 10G but only up to 55 meters. At longer lengths, signal degradation kicks in, often unnoticed until loads increase.
Device Compatibility
Your NIC, router, or switch must all support the same performance tier. A 10G cable is wasted on a 100 Mbps port.
Environmental Interference
- Coiled or bent cables
- Proximity to fluorescent lighting
- High-temperature areas (server closets)
Practical Insight: Even an expensive Cat6A won’t perform if crimped poorly, run alongside AC lines, or used with underpowered gear. Always test post-installation.
Step-by-Step Troubleshooting Workflow
If your Ethernet cable performance isn’t matching expectations, follow this proven sequence:
- Replace with a known good cable (preferably Cat6 or higher)
- Try a different port on your switch or router
- Update Ethernet drivers, especially on Windows machines
- Inspect connectors for corrosion or play
- Check bends or cable tension, copper breaks easily under strain
Still no resolution? Test wall plates, keystone jacks, and patch panels. Over time, these wear and cause hard-to-detect signal loss.
Recommended Tools and Cables for Accurate Testing
The right testing and performance start with quality components. Here are the most reliable CablesAndKits products to support your network evaluation process:
-

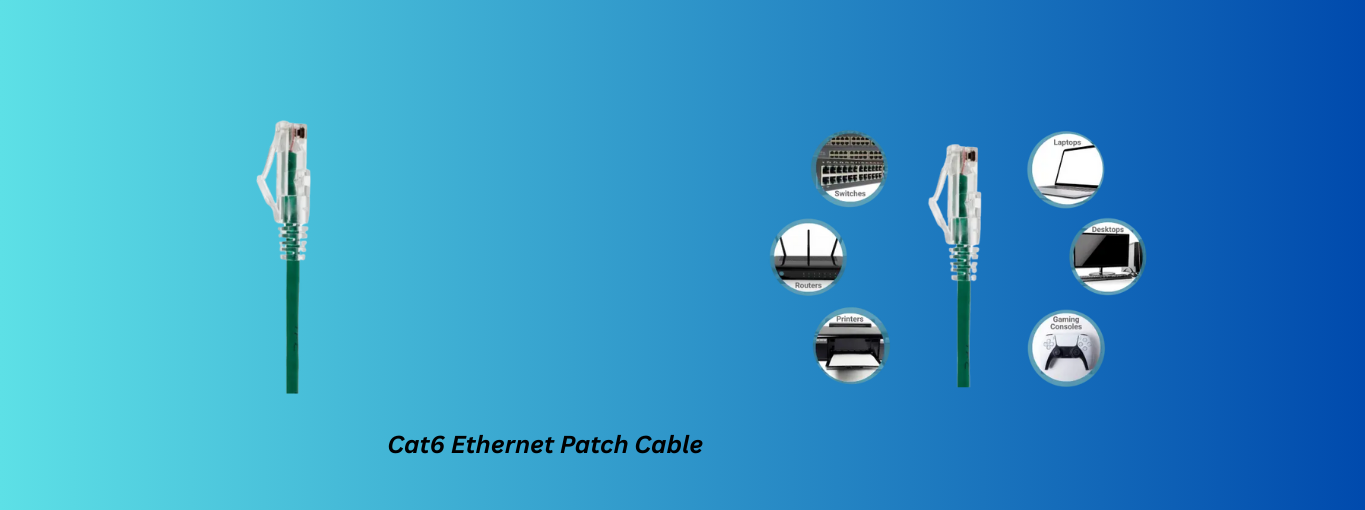

Cat6 Ethernet Patch Cable
This premium Cat6 cable ensures stable performance during tests. Its pure copper construction minimizes interference and delivers consistent speed results.
Specs:
- Pure copper, snagless design
- UL listed, meets T568B
- Ideal for PoE, speed testing, and general diagnostics
Use Case: Eliminate doubt during diagnostics. Start with a clean, high-quality Cat6 cable to baseline your network. Buy now for consistent and accurate test results.
-

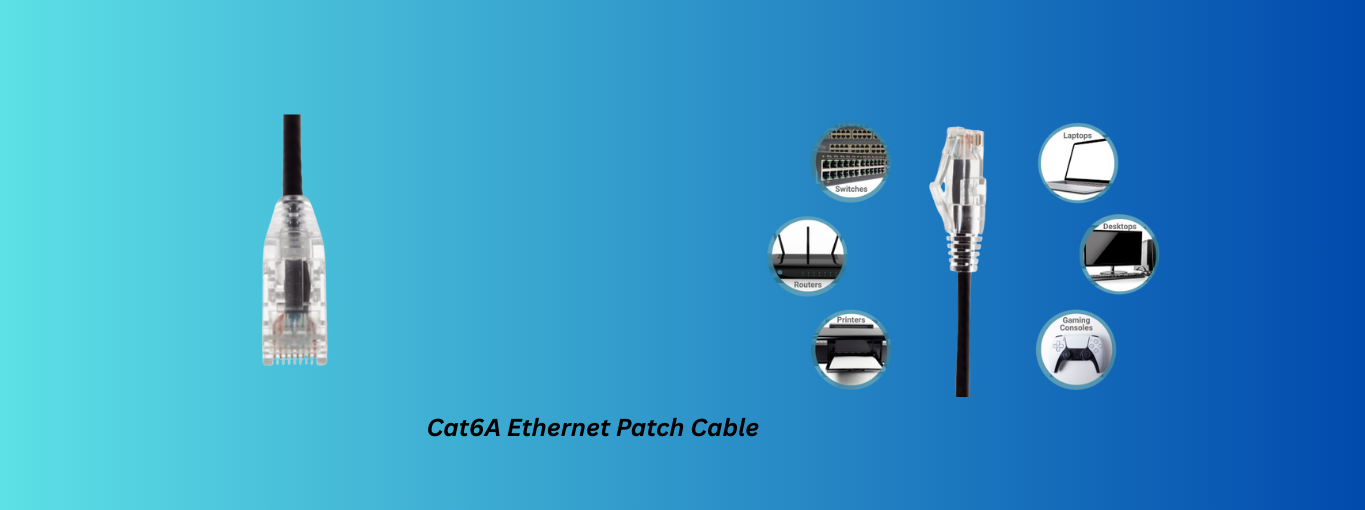

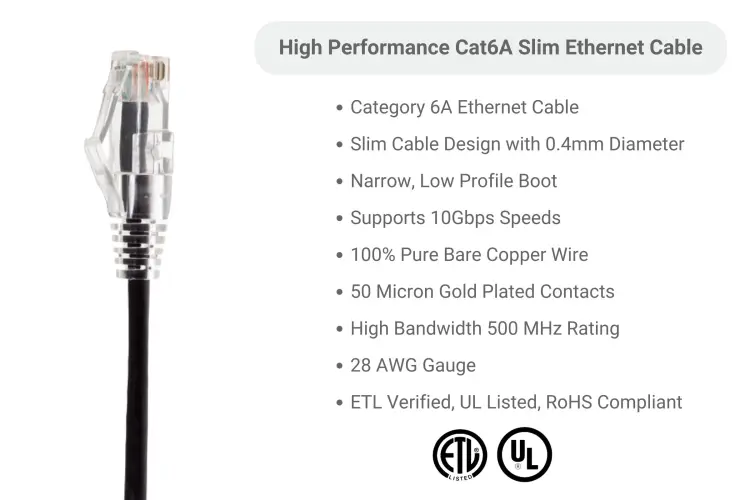

Cat6A Ethernet Patch Cable
Rated for 10GBASE-T over long distances, this cable is built for testing maximum data performance in modern networks.
Specs:
- Rated for 10GBASE-T up to 100 meters
- 500 MHz bandwidth, 28 AWG copper, shielded jacket
Use Case: Validate 10 Gbps performance and EMI resistance during structured cable testing. Order now to ensure precision across high-demand links.
-

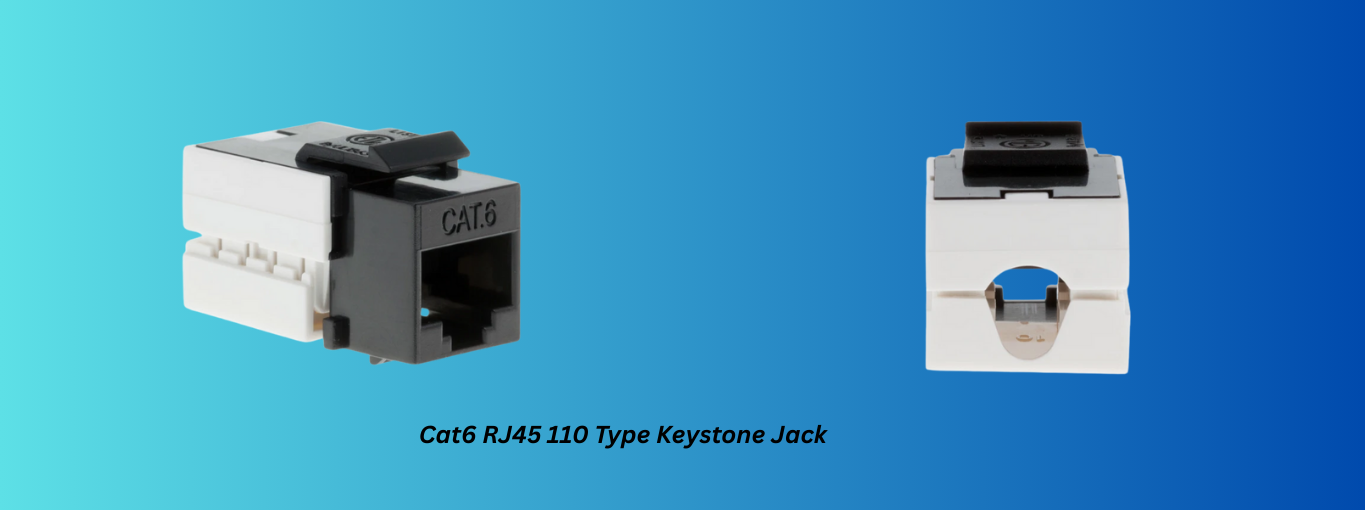

Cat6 RJ45 110 Type Keystone Jack
With gold-plated pins and a PCB layout, this jack offers stable terminations for testing environments.
Specs:
- T568A/B wiring standard
- Gold-plated pins, UL-rated
- 110 punch-down termination
Use Case: Replace aging jacks or test terminations for signal consistency. Upgrade now to eliminate connector-level faults.
-

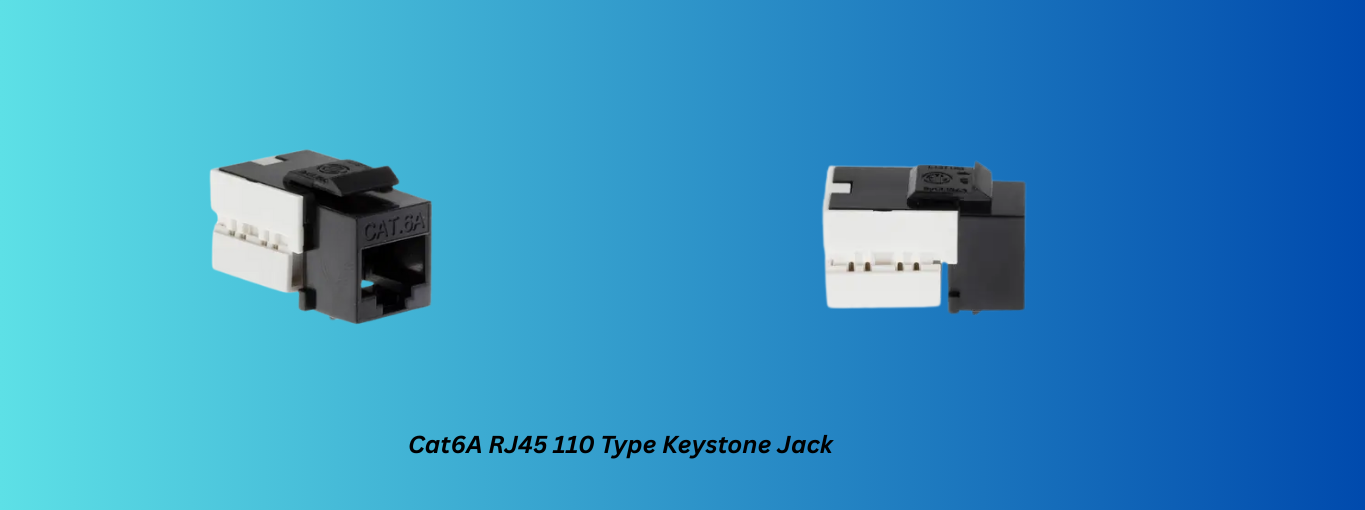

Cat6A RJ45 110 Type Keystone Jack
Designed for high-speed installations, this jack maintains performance in demanding setups.
Specs:
- Dual wiring, fully modular
- Optimized for high-speed environments
- Supports PoE and 10G traffic
Use Case: Lock in clean terminations for critical performance testing. Purchase now to avoid signal degradation during real-world use.
Final Thoughts: Test Smarter, Not Harder
Measuring Ethernet cable performance isn’t reserved for IT pros, it’s a smart move for any serious user. Whether you’re maintaining business continuity or optimizing your gaming rig, knowing how to run a speed test, evaluate latency, and swap cables strategically gives you control over your network.
The cost of poor cabling isn’t just speed, it’s reliability, productivity, and peace of mind. Don’t let an aging cable limit a modern connection. Identify weak links, invest in tools, and test with confidence.
For expert guidance and trusted products, visit CablesAndKits.com. We're ready to help you build faster, more stable connections today.
