Data Rate Limits by Cable Type: Why Your Network Feels Slow

In today’s connected world, the speed at which data travels through your network can make or break productivity. Yet, an often overlooked factor in achieving peak performance is the type of Ethernet cable in use. From home office setups and gaming rigs to corporate IT networks and large data centers, the cable category you choose directly influences your network’s maximum data rate and reliability.

This article explores data transfer rate limitations by cable type, helping everyone from everyday users to IT managers understand how different Ethernet cables (Cat5e, Cat6a, Cat8, and more) affect bandwidth and throughput. By comparing specifications, distance tradeoffs, and common bottlenecks, we’ll also highlight the benefits of upgrading cables and how to test performance, ensuring you make well-informed decisions for your network.

Ethernet Cable Specifications and Limitations

Ethernet cables are categorized by standards (Cat5e, Cat6, Cat6a, Cat8, etc.), and each category comes with defined performance limits. These limits include the cable’s maximum frequency (MHz), which dictates the bandwidth limits, as well as the highest supported network speed (throughput) and recommended length. Understanding these specifications is crucial because a cable below the needed spec can become a network bottleneck. Below is a breakdown of common cable categories and their inherent limitations:

• Cat5e (Category 5e): This card supports up to 1 Gbps Ethernet at 100 MHz over a distance of 100 meters (328 ft). It is ideal for basic Gigabit networks, but it will not support 10 Gbps speeds.
• Cat6 (Category 6): Supports 10 Gbps speeds at 250 MHz, but only for shorter runs (typically up to 55 meters). For standard 100-meter runs, Cat6 reliably carries 1 Gbps, similar to Cat5e.
• Cat6a (Category 6a): An “augmented” Cat6 rated for 500 MHz, fully supporting 10 Gbps Ethernet over the full 100-meter channel. Enhanced internal design reduces crosstalk and interference.
• Cat8 (Category 8): A high-performance cable up to 2000 MHz (2 GHz) designed for 25/40 Gbps data rates. Due to signal attenuation, Cat8 is limited to about 30 meters in reach, making it suitable for data centers and server rooms where ultra-fast, short connections are needed.

Practical Insight: For heavy traffic like large file transfers or HD streaming, Cat6 cables provide extra capacity. Over distances under 55 meters, they deliver speeds well above 1 Gbps, bridging the gap between Gigabit and 10-Gigabit networks. Speed vs. Distance: Why Cable Length Matters

One key factor affecting network performance is the length of the cable run. Electrical signals weaken as they travel down a copper cable, an effect known as Signal Attenuation in Ethernet Cables. All standard twisted-pair Ethernet cables have a maximum recommended length (generally 100 meters) for full-speed operation due to this attenuation. Exceeding that range can result in a drop in throughput or complete signal loss. But even within the standard 100 m limit, higher network speeds make cable length more critical:

For instance, if you try to run a 10 Gbps connection over Cat6 beyond ~55 m, the speed will likely downshift to 1 Gbps to maintain integrity. This happens because the cable’s distance limitations at higher frequencies cause too many data errors over long runs. By contrast, Cat6a is engineered to sustain 10 Gbps across the full 100 m. Similarly, Cat8 can deliver 25 or 40 Gbps, but only over very short distances (up to 30 m) before attenuation forces a slowdown. In other words, the faster the data rate, the more the signal strength and clarity matter across distance.

Practically speaking, always plan cable runs with both speed and length in mind. If you need to run cables over 100 meters, copper won’t maintain full speed. In those cases, use fiber optic cables or signal repeaters. For typical home and office setups, keeping cable lengths within limits ensures the best performance.

Common Network Bottlenecks: When Cables Become the Weak Link

Even with the right cables in place, a network is only as fast as its slowest component. A network bottleneck occurs when one element of the system limits the overall data flow. In practice, bottlenecks can stem from hardware, configuration, or the cabling itself. Here are some frequent culprits:

• Under-specced Cables: Using a cable with lower capabilities than the rest of the network will drag down your speed. For example, if a 10-Gigabit switch is connected via a stray Cat5e patch cord, that link will fall back to 1 Gbps. This kind of Gigabit vs. 10-Gigabit Ethernet Cables mismatch illustrates how the lowest-rated cable in a chain dictates the throughput.
• Outdated Network Hardware: Sometimes the issue isn’t the cable at all, but the gear. Older routers, switches, or NICs may only support slower speeds (like 100 Mbps or 1 Gbps). No cable upgrade can overcome a hard limit set by your equipment’s ports.
• Bandwidth Saturation: When many users or devices transmit data at once, they can saturate the available bandwidth. For instance, a gigabit link can become a bottleneck if multiple heavy data transfers occur simultaneously. In such cases, even a Cat6a cable at 10 Gbps won’t help unless the network infrastructure is scaled up (e.g., upgraded to 10GbE).
• Electromagnetic Interference (EMI): In electrically noisy environments, an unshielded cable can pick up interference that effectively reduces its performance. Crosstalk or external noise can cause data errors, leading to lower effective throughput. Upgrading to shielded cables (like STP or S/FTP designs) often alleviates this issue.

To diagnose network slowdowns, check every link, from device load to configuration and cables. Often, outdated or low-quality cables cause bottlenecks. Replacing them with higher-category patch cords can quickly resolve issues, boosting network speed and reliability with minimal effort.

Upgrading to Higher Category Cables: Key Benefits

If your network demands are increasing, “getting by” with older cables can hold you back. Upgrading to a higher cable category unlocks significant advantages beyond just a bump in speed. Newer cable categories offer improved materials and construction: thicker gauge copper conductors, better insulation, and often shielding against interference. This translates to more reliable connections and greater throughput capacity.

Here are some clear benefits of moving up the cable ladder:

• Future-Proofing: Higher-category cables (like Cat6a and Cat8) ensure your infrastructure is ready for upgrades. Even if you currently operate at 1 Gbps, installing cables that can handle 10 to 40 Gbps means you won’t have to recable when you scale up.
• Greater Bandwidth & Speed: Upgraded cables support higher frequencies (e.g., 500 MHz for Cat6a, 2000 MHz for Cat8), which directly correlates with carrying more data per second. This means a higher maximum data rate potential as soon as your devices support it.
• Improved Stability: Newer cables often have design enhancements like tighter twists or full shielding. These reduce crosstalk and noise, especially important in crowded server racks or industrial environments. The result is less packet loss and retransmission – i.e., your actual throughput stays closer to the cable’s rated speed.
• Power over Ethernet (PoE): If you use PoE for devices like cameras or access points, higher-category cables (and especially pure copper ones) handle power better. They exhibit lower resistance, generating less heat over long runs. This makes them safer and more efficient for delivering both data and power.

Performance Testing for Different Cable Types

Once you have the right cables installed, it’s wise to verify that you’re getting the expected performance. Cable issues can sometimes hide in plain sight – a wire might be damaged or not truly meet its category spec, resulting in lower speeds or intermittent connections. By testing your cables’ performance, you can catch these problems early and ensure each link is up to par. Here are a few approaches to measuring Ethernet cable performance:

1. Check the link indicators on your equipment. Most modern switches and network interface cards (NICs) will show the link speed (e.g., a green LED for Gigabit, amber for 10/100 on some devices). If you plug in a Cat6a cable but the port only negotiates 1 Gbps, it could indicate a problem or an equipment limitation.
2. Use software tools to measure throughput. For example, run a LAN speed test or transfer a large file between two machines on the network. If a cable is supposed to support 10 Gbps but you consistently cap out at 1 Gbps, that’s a red flag. Utilities like iPerf can generate traffic to test the true bandwidth between two endpoints.
3. Employ a dedicated cable tester or certifier. Professional cable certifiers (like a Fluke network tester) can validate that a cable run meets Cat5e/Cat6a/Cat8 standards by checking parameters like attenuation and crosstalk. These tools will confirm if a cable meets its category specifications.
4. Swap cables to isolate the issue. When in doubt, try a different cable of known good quality and see if your performance improves. This A/B testing method can quickly tell you if the cable was the culprit or if you need to look elsewhere in the network.

Understanding how to measure Ethernet cable performance is essential for a smooth network. Testing your cables can reveal problems that might seem like slow internet or faulty devices, but are due to the wiring. Regular checks help you avoid unnecessary troubleshooting and keep things running smoothly.

Recommended Ethernet Cables for Every Network Scenario

Choosing the right Ethernet cable depends on where and how you use it. From home setups and office networks to high-performance data centers, each environment has different needs. Below are practical cable recommendations to match your setup with the right performance and reliability.

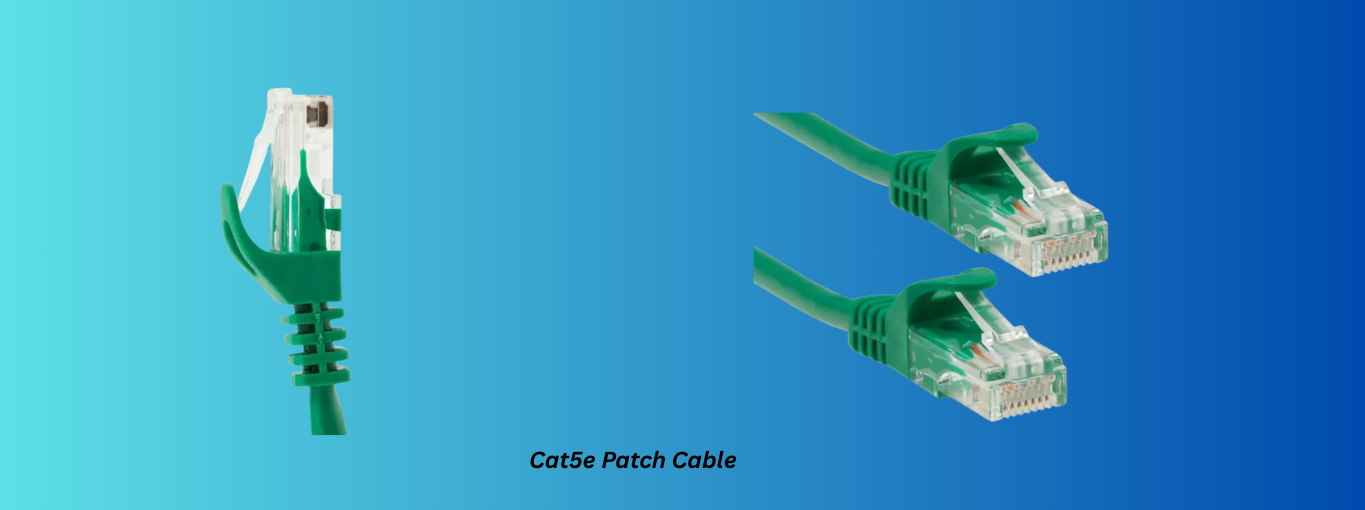

Cat5e Patch Cable for Basic Gigabit Networking

For basic networks and small setups, Cat5e cables are reliable. Our Cat5e Snagless UTP Patch Cable has pure copper conductors and a snagless boot for easy installation without broken clips. It follows the T568B wiring standard and supports 350 MHz, handling Gigabit Ethernet over typical distances for stable everyday use.

Practical Insight: Cat5e cabling delivers reliable performance in controlled environments with moderate bandwidth needs. It's ideal for budget-conscious projects requiring RJ45 compatibility. Order now for everyday networking.

Cat6 Patch Cable for Balanced Speed and Value

Stepping up to Cat6 cabling introduces support for next-level speeds beyond 1 Gigabit. A Cat6 Snagless UTP Patch Cable (built with pure copper and rated to 550 MHz) can carry up to 10 Gbps on shorter runs. It maintains backwards compatibility with 10/100/1000 Mbps devices and is fully PoE compatible, making it a versatile choice for growing networks. The improved twist rate in Cat6 reduces crosstalk, which translates to cleaner signals and better performance in busy network environments.

Practical Insight: Cat6 is ideal for frequent file transfers, large downloads, or low-latency tasks like video calls and gaming. It’s a solid upgrade from basic gigabit setups without the cost of shielded cabling. Upgrade now to avoid cable-related slowdowns.

Cat6A Shielded Patch Cable for Long-Distance 10G

When seeking 10 Gigabit performance with minimal interference, Cat6A Shielded Patch Cable is the go-to choice. Our Cat6A cables utilize an STP (shielded twisted pair) design, wrapping each copper pair in foil to block external noise. This robust construction preserves signal quality across full-length runs, allowing consistent 10 Gbps throughput even in electrically noisy environments. With a 500 MHz rating, Cat6A patch cords also ensure plenty of bandwidth headroom for emerging applications that demand ever-higher speeds.

Practical Insight: For new builds, server rooms, or commercial upgrades, Cat6a is a future-ready solution with scalable bandwidth, long-distance 10G support, and high PoE compatibility. Shop now to future-proof your network.

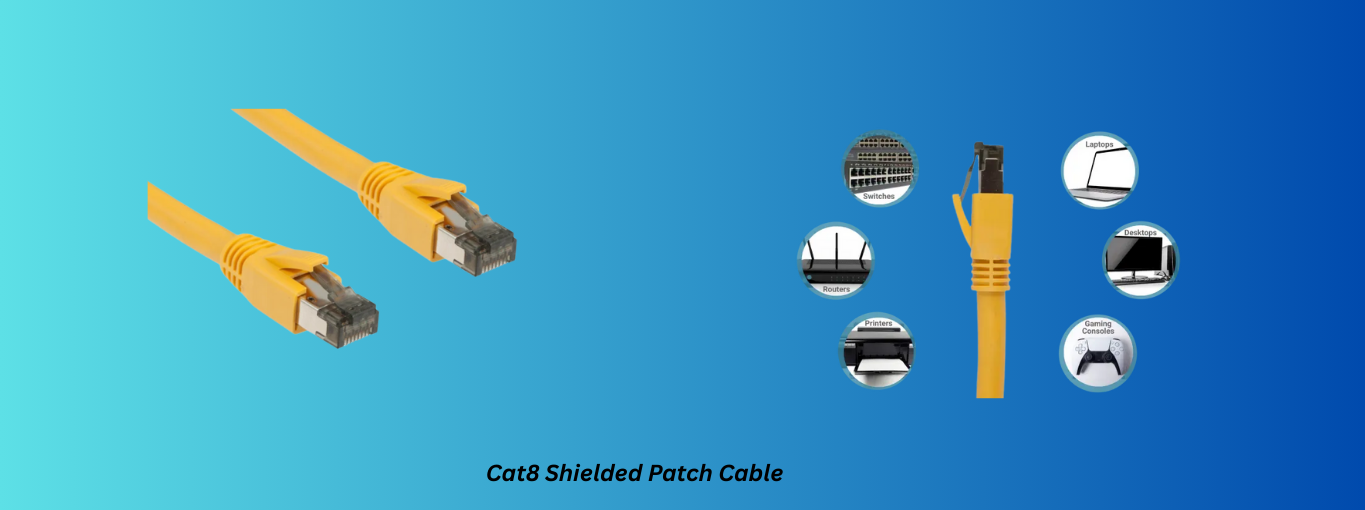

Cat8 Shielded Patch Cable for Data Center-Class Performance

For absolute top-end copper performance, Cat8 Shielded Patch Cable leads the pack. Cat8 is engineered for data center caliber speeds, supporting up to 40 Gbps Ethernet thanks to its 2000 MHz bandwidth. It features an S/FTP construction (each pair foiled plus an overall braided shield), virtually eliminating crosstalk and interference. Keep in mind, Cat8’s range is intentionally short (around 30 m). It’s designed to connect high-speed equipment nearby, like switches to servers, where fiber optics might otherwise be considered.

Practical Insight: Cat8 is built for ultra-fast, short-range performance and is perfect for demanding setups. Most homes won’t need 40 Gbps, but if you're pushing copper's limits, it delivers. It is fully backward compatible with RJ45 ports. Break the speed barrier and secure your setup today for next-level performance.

Final Thoughts

Choosing the right Ethernet cable comes down to knowing what your network handles now and what you’ll need later. Cat5e is a solid, low-cost pick for basic Gigabit speeds. If you're expecting heavier use or faster connections, Cat6 or Cat6a are better choices. For short, high-speed jobs, Cat8 steps in. The key is understanding data transfer rate limitations by cable type. It helps you avoid running into slowdowns or having to swap cables too soon. A little planning now saves time and headaches later.

Need guidance choosing the right cable for your network? Our experts at CablesAndKits.com are ready to help you make the best choice for your setup.
