What is a Direct Attach Copper (DAC) Cable? Common Types And Uses

If you're aiming to enhance your data center connectivity, it's crucial to understand the benefits of Direct Attach Copper (DAC) cables. Commonly referred to as DAC cables, these provide a high-speed, cost-effective solution for connecting switches, routers, and servers over short distances. By eliminating the need for transceivers, DAC cables ensure a seamless and efficient connection, reducing both power consumption and latency.

DAC cables are available in several forms, including passive DAC cables and active configurations. While passive DAC cables are suited for shorter connections within data centers, active DAC cables feature built-in signal amplification to support longer distances without degrading performance. Whether you're setting up server farms, storage area networks, or high-performance computing clusters, DAC cables offer reliability and versatility.

This article will introduce the different types of DAC cables, their applications, and the advantages they bring to modern data centers. Let's explore how these cables can optimize your network's architecture and performance.

What is a Direct Attach Copper (DAC) Cable?

A Direct Attach Copper (DAC) Cable is a form of network cable that connects devices directly within close proximity, typically within data centers. Unlike traditional cabled connections that use separate transceiver modules connected by fiber or copper cabling, DAC assemblies integrate the transceivers directly into the cable ends.

This integration simplifies the hardware setup and provides a more robust, cost-effective alternative to fiber optic setups for short-range data transmission. DAC cables are particularly favored for their low latency and minimal power consumption, making them ideal for environments where both speed and energy efficiency are critical.

Types of Direct Attach Copper (DAC) Cables

Direct attach copper (DAC) cables come in a variety of types, each with its own unique characteristics and capabilities. The two main categories of DAC cables are passive and active:

1. Passive DAC Cables

Passive DAC Cables are the most basic and cost-effective type. They do not contain any active electronic components and rely solely on the physical copper wiring to transmit data. These cables are typically used for shorter distances, typically up to 5 meters, and are well-suited for applications where power consumption and heat generation are not major concerns.

2. Active DAC Cables

Active DAC Cables incorporate active electronic components such as signal amplifiers and equalizers. These components help to extend the effective range of the cable, allowing for longer distances of up to 10 or even 15 meters without compromising signal quality. Active DAC cables are more expensive than their passive counterparts, but they offer greater flexibility and performance for data center environments that require longer cable runs.

Other Varieties of Direct Attach Copper (DAC) Cables

1. 10G DAC Cables

These are specialized DAC cables designed to support 10 Gigabit Ethernet connections. 10G DAC cables are widely used in data centers and enterprise networking environments to facilitate high-speed data transfers. They are available in both passive and active forms, depending on the required connection distance and signal strength.

Features

10G DAC Cables
Maximum Cable Length	Typically up to 7 meters for passive, 10 meters for active
Compatibility	Compatible with 10GBase-T Ethernet standards
Applications	Ideal for close-range device connections in dense network environments

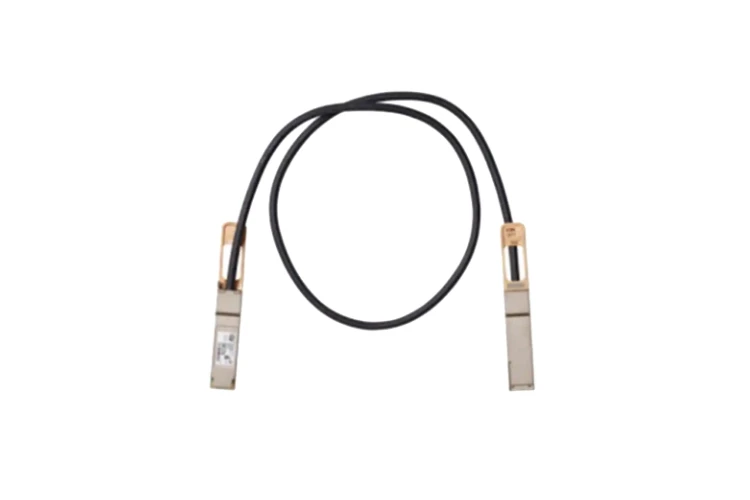

2. 100G DAC Cables

100G DAC cables are used to meet the demands of ultra-high-speed data networking. These cables are essential in environments where massive amounts of data are transferred rapidly, such as in large data centers supporting cloud computing and high-performance computing applications.

Like 10G cables, they also come in both passive and active variants to suit different network configurations and distances.

Features

100G DAC Cables
Maximum Cable Length	Up to 5 meters for passive, up to 10 meters for active
Signal Integrity	Enhanced with built-in signal boosters in active cables
Applications	Used in backbone and core networking layers

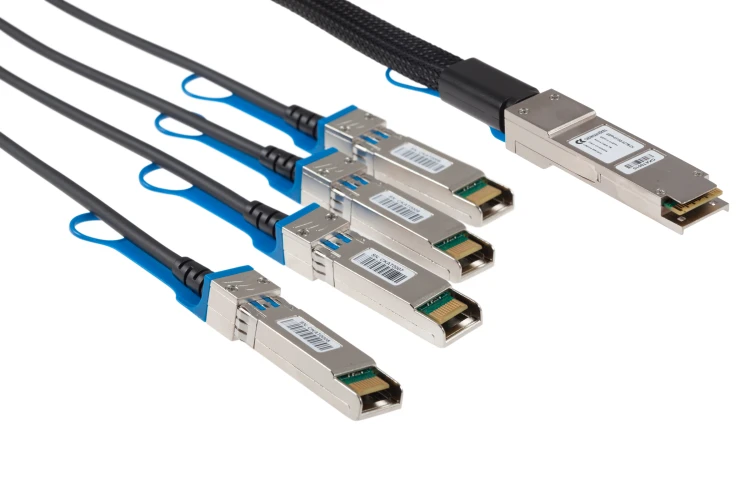

3. QSFP+ to SFP+ Breakout DAC Cables

Quad Small Form-factor Pluggable Plus (QSFP+) to Small Form-factor Pluggable Plus (SFP+) breakout DAC cables are designed to connect one QSFP+ port with four SFP+ ports. These cables are ideal for splitting a single 40G connection into four separate 10G channels, enhancing flexibility in network topology and optimizing connectivity between different types of networking equipment.

Features

QSFP+ to SFP+ Breakout DAC Cables
Distance Support	Effective for connections typically up to 5 meters, ensuring signal integrity
Connector Type	QSFP+ on one end and four SFP+ connectors on the other end
Applications	Ideal for mixed environment connectivity

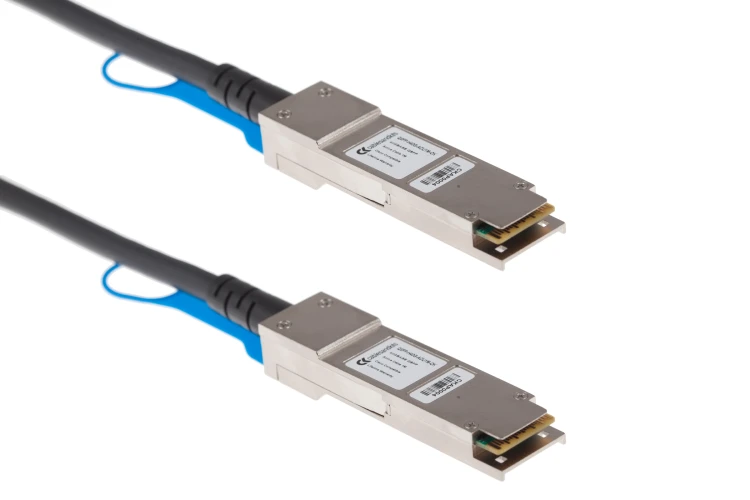

4. QSFP28 DAC Cables

over QSFP28 ports. QSFP28 DAC cables are essential for ultra-high-speed network backbones and are commonly used in large-scale data centers and high-performance computing environments. Their ability to deliver high data rates makes them suitable for demanding applications that require superior data transfer speeds`.

Features

QSFP28 DAC Cables
Bandwidth	Supports bandwidths up to 100 Gbps
Build Quality	Robust design for reliability in intensive operations
Applications	Cloud storage, large-scale data processing

5. Twinax DAC Cables

Twinax DAC cables use Twinaxial cabling, a type of coaxial cable with two inner conductors instead of one. These cables are known for their robustness and superior shielding, which reduces electromagnetic interference. Twinax DACs are often used in short-range, high-speed data transfers between closely positioned devices, making them a popular choice for high-frequency trading platforms and other latency-sensitive applications.

Features

Twinax DAC Cables
Shielding	Superior EMI resistance due to dual-conductor design
Durability	Designed for high durability and ruggedness
Applications	Trading floors, critical short-distance links

Uses and Applications of Direct Attach Copper (DAC) Cables

Uses of Direct Attach Copper (DAC) Cables

1. Data Center Infrastructure: DAC cables are extensively used in data centers for connecting servers, switches, and storage devices over short distances, enhancing data transfer speeds and network efficiency.
2. Cost Reduction: Implementing DAC cables helps significantly reduce costs by eliminating the need for optical transceivers, which are more expensive than direct copper connections.
3. High-Performance Computing: In high-performance computing clusters, DAC cables provide the necessary high-speed, low-latency connections that are crucial for handling large volumes of data and complex computations.
4. Energy Efficiency: Due to their design, DAC cables consume less power compared to fiber optic cables, contributing to more energy-efficient network operations.

Applications of Direct Attach Copper (DAC) Cables

1. Server Farm Connectivity: In server farms, 10G DAC cables are commonly used to create high-speed interconnects between servers and network systems, facilitating fast data access and real-time processing.
2. Storage Area Networks (SANs): DAC cables connect storage controllers and hard drives in SANs, enabling fast data retrieval and redundancy to ensure data integrity and continuous availability.
3. Network Switching and Routing: Within network switches and routers, DAC cables are employed for stacking and linking devices within the same rack or adjacent racks, optimizing network topology and throughput.
4. Telecommunications: 100G DAC cables are crucial in telecommunications infrastructure, supporting backbone connections that demand high bandwidth and rapid data transmission capabilities.

These uses and applications highlight the critical role of DAC cables in modern networked environments, leveraging their technical advantages to meet specific operational demands.

Conclusions

In conclusion, direct attach copper cables are a versatile and cost-effective solution for data center and networking connectivity. Whether you're looking to optimize server-to-switch connections, enhance storage area network performance, or improve high-performance computing infrastructure, DAC cables can play a crucial role in your data center's infrastructure.

As the demand for high-speed, low-latency data transfer continues to grow, the importance of direct attach copper cables will only continue to increase. By staying informed about the latest developments in this technology and working with reputable manufacturers and suppliers, you can ensure that your data center is equipped with the best possible connectivity solutions to meet your evolving needs.
