Fix Slow Network Speeds: Ethernet Cable Types & Data Rates

In a world where wireless connections dominate the consumer tech space, the consistent performance of wired Ethernet remains irreplaceable. Whether you're streaming UHD video, running a data center, or simply ensuring lag-free communication between servers and endpoints, understanding Ethernet speed, bandwidth, and cable types is the first step to building a reliable, future-ready infrastructure.

Though Wi-Fi 6 and 6E offer impressive numbers on paper, wireless networks are still susceptible to latency spikes, interference, and bandwidth throttling under load. Ethernet, on the other hand, guarantees stable, deterministic performance; a must for real-time services, cloud computing, and remote desktop environments. The integrity and speed of your physical layer often define how well upper layers of the network stack can perform. That’s why network designers and IT admins continue to rely heavily on copper Ethernet for both edge and core deployments.

Cable Categories and Their Speed Capabilities: Cat5e to Cat8 Explained

Ethernet cables are classified by performance category, each indicating specific data rate, bandwidth, and shielding standards. At the core of network planning lies the ability to match these capabilities with real-world application requirements:

• Cat5e: Supports Gigabit speeds (1 Gbps) over 100 meters, ideal for basic broadband and streaming applications. Bandwidth peaks at 100 MHz.
• Cat6: Enables 10 Gbps speeds up to ~55 meters and supports Gigabit up to 100 meters. Offers 250 MHz bandwidth with reduced crosstalk.
• Cat6A: Designed for full 10GBASE-T across the entire 100-meter run with a 500 MHz bandwidth and enhanced crosstalk protection. Suitable for denser deployments.
• Cat7: Delivers 10 Gbps with better shielding and 600 MHz bandwidth, using GG45 or TERA connectors in some implementations. Well-suited to EMI-prone environments.
• Cat8: Achieves 25 to 40 Gbps over distances up to 30 meters. Operates at 2000 MHz and is intended for high-performance data center links.

Each higher category imposes stricter standards for return loss, crosstalk suppression, and transmission delay. Gigabit vs. 10-Gigabit Ethernet cables often feature tighter twists and thicker conductors to support PoE and reduce heat under heavy loads. Understanding these specifications is key to ensuring optimal network speed, reliability, and power delivery.

Practical Insight: If you’re outfitting a home or small office and staying within 1 Gbps usage, Cat5e is cost-effective. However, for high-performance workstations or future-ready cabling, Cat6A ensures scalability without reinstallation. Cat6A or Cat7 offers an ideal blend of speed and shielding in warehouse installations or facilities with automation systems.

Real-World Throughput vs. Theoretical Ratings: Bridging the Performance Gap

Manufacturer specs give ideal Mbps and Gbps values, but real-world network performance often deviates due to:

• EMI from nearby electronics
• Signal degradation over extended distances
• Subpar jack/patch panel termination
• Mixed-category patching
• Cable routing practices (tight bends, bundling, lack of separation from power lines)

While Cat6 might technically support 10 Gbps at short distances, poorly installed or lower-grade variants can dramatically underperform. Additionally, heat dissipation under PoE+ and PoE++ loads can impact resistance, signal quality, and packet loss.

Practical Insight:Don't rely solely on printed specs. Always consider the deployment environment. If you're wiring across rooms or ceilings, favor cables with better shielding and bandwidth, even if your devices only run at 1 Gbps today.

Speed Testing Methods and Tools: Verifying Ethernet Cable Performance

Validation is crucial. Tools like Fluke DSX-5000, LinkRunner AT, NetAlly EtherScope, and open-source utilities like iPerf3 give hard data on:

• Actual throughput
• Latency and jitter
• Packet loss
• EMI interference
• Delay skew between twisted pairs

Enterprise installers rely on wire map tests, NEXT loss, and propagation delay measurements before certifying a link for use. When deploying cables across multiple floors or connecting mission-critical equipment, understanding how to measure Ethernet cable performance through structured testing is essential to ensure reliability and optimal network functionality.

Practical Insight:A 1 Gbps port showing sluggish file transfers could indicate physical layer issues. Always test cables, especially after routing them through walls or conduits. Regular testing avoids costly surprises down the line.

Ethernet Standards and the Evolution of Copper Speed

IEEE has standardized Ethernet over copper since the 1990s:

• 10BASE-T – 10 Mbps, legacy Cat3
• 100BASE-TX – 100 Mbps Fast Ethernet over Cat5
• 1000BASE-T – Gigabit Ethernet over Cat5e/6
• 10GBASE-T – 10 Gbps with Cat6A or better
• 25G/40GBASE-T – Cat8 cabling, short range, typically for top-of-rack links

Recent advancements have introduced NBASE-T (2.5G and 5G Ethernet), aimed at extending the utility of existing Cat5e and Cat6 infrastructure without requiring complete overhauls. These intermediate speeds are particularly valuable for upgrading Wi-Fi uplinks to access points without replacing every patch cable. Ensuring compatibility with Ethernet cable standards & compliance is essential when implementing these upgrades, as it helps meet both performance benchmarks and regulatory requirements.

Practical Insight: As new devices adopt 2.5G/5G/10G interfaces, using Cat6A now means you're ready for future hardware without another cabling overhaul. Especially in education and healthcare sectors, bandwidth needs increase faster than expected.

CablesAndKits Solutions: Recommended Ethernet Cables by Use Case

At CablesAndKits, each cable is designed to solve a specific infrastructure challenge, whether it’s affordability for home users, performance for small offices, or shielding for high-interference environments. Below are the most practical, high-performance choices for each use case based on category, environment, and application load.

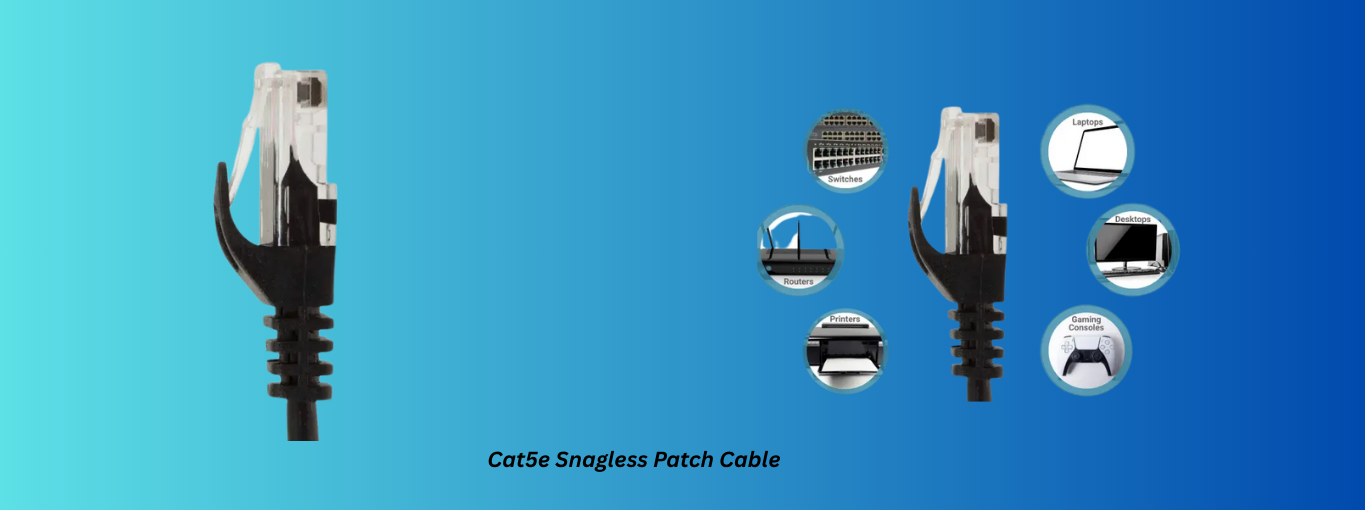

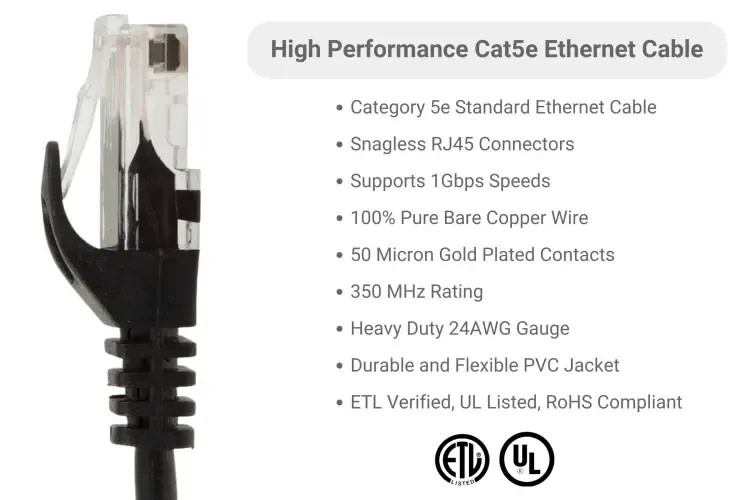

Cat5e Snagless Patch Cable: Best for Budget Home Setups:

This pure copper cable supports 1 Gbps across 100 meters and includes snagless boots for durability.

Practical Insight: Great for users needing dependable Gigabit connectivity at home. Easily powers PoE security cams or smart TVs. Affordable and backward-compatible. Order Now for Home Use.

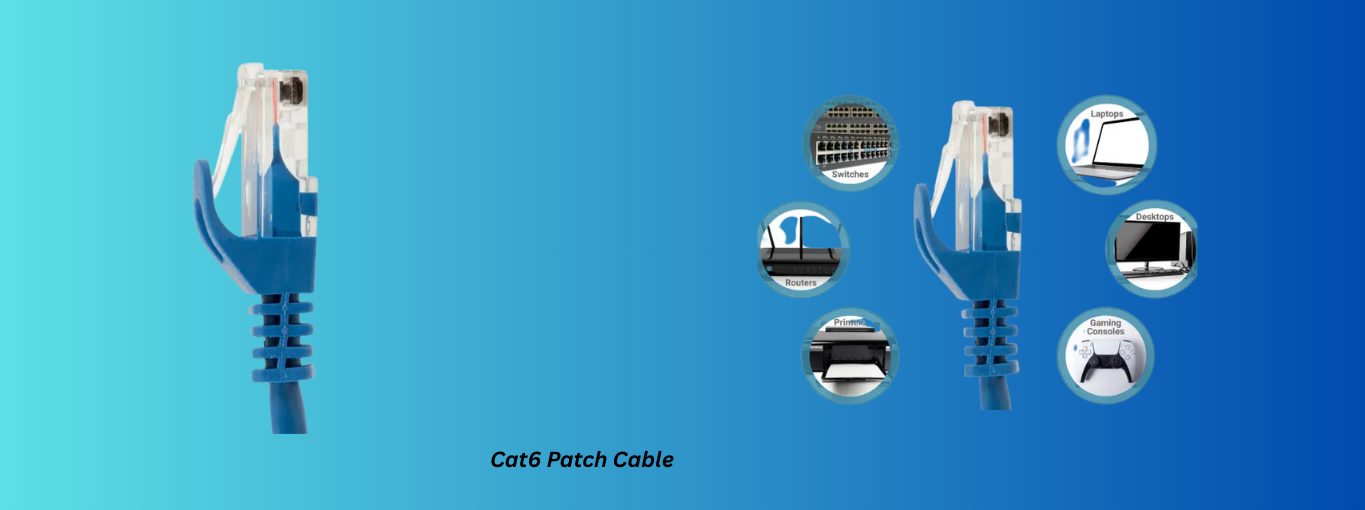

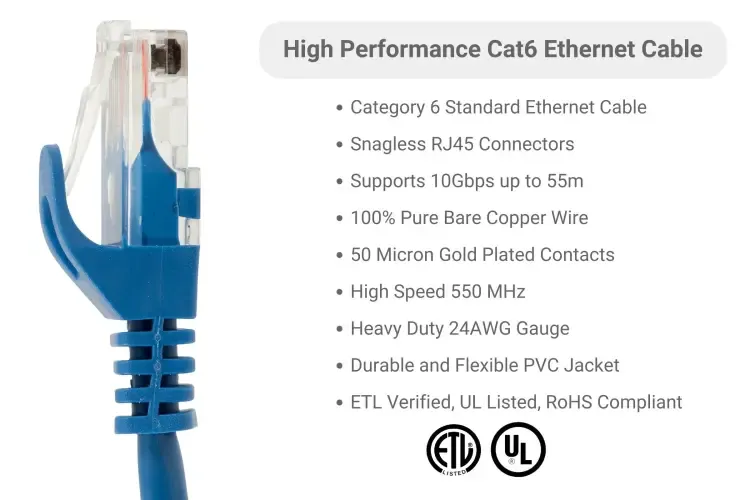

Cat6 Patch Cable: Best for Small Business Networks

With 550 MHz bandwidth and 10 Gbps support up to 55m, this Cat6 cable is a workhorse. Fully PoE-compliant with snagless boots.

Practical Insight: Ideal for SMBs with a growing device count, which is reliable, cost-effective, and perfect for short backbone links between switches. Shop now!

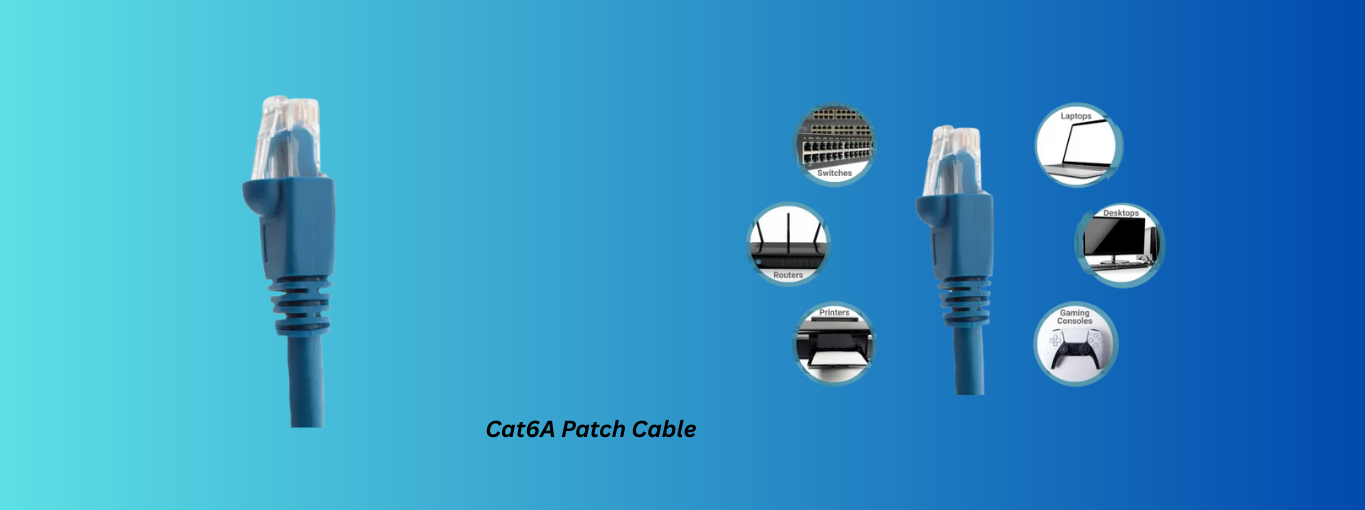

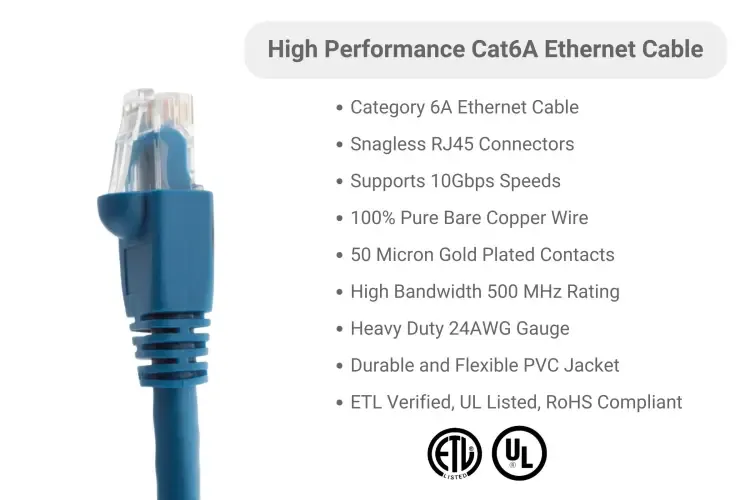

Cat6A Patch Cable: Best for Enterprise Environments

These cables are rated to handle 10GBASE-T across the full 100m channel. Shielded, snagless, and bundled for organized installs.

Practical Insight: Choose this for critical runs in data closets, switches, or VLAN backbone links. Also supports 90W PoE++. Buy now for enterprise-grade performance.

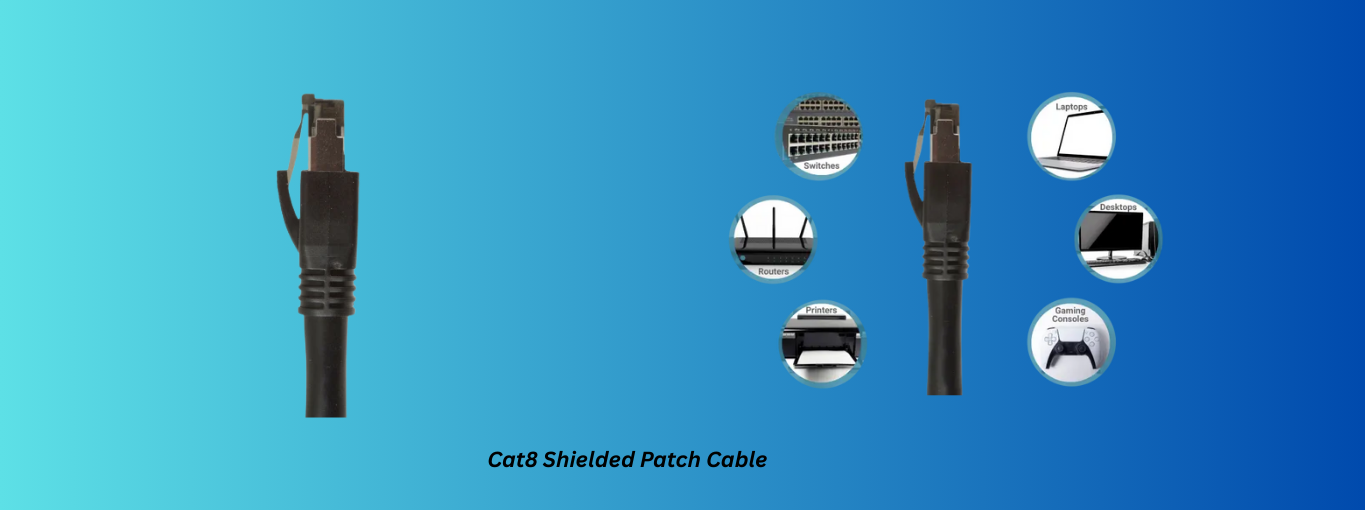

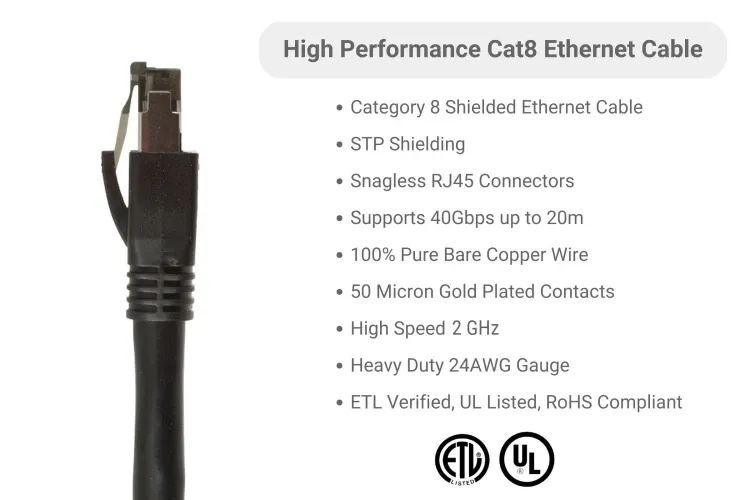

Cat8 Shielded Patch Cable: Best for Industrial/High-Noise Environments

S/FTP design and 2000 MHz operation make this CablesAndKits cable ideal for short-range 25-40 Gbps applications in EMI-heavy zones.

Practical Insight: Use this in rack-to-rack or automation environments. Future-proofed with backward-compatible RJ45s and max shielding. Order now for demanding environments.

Identifying and Resolving Bottlenecks: Common Mistakes to Avoid

Network slowdowns often result from unoptimized physical layers. Address:

• Mixing Cat5e in Cat6A networks
• Kinking or tightly bundling unshielded cables
• Terminating poorly (long, untwisted lengths at keystones)
• Using CCA (Copper-Clad Aluminum) instead of pure copper
• Failing to test for grounding issues in shielded environments

Proactive audits of cable runs, labeling practices, patch panel organization, and PoE power budgets prevent performance degradation and future rework.

Practical Insight: Always check cable markings and supplier specs. CablesAndKits clearly labels conductor material and certifications for transparency. Proper labeling and layout documentation pay off in future maintenance.

Final Thoughts: Match the Cable to the Application

Whether you're setting up a basic home LAN or deploying a data center spine, the right Ethernet cable ensures signal stability, speed, and minimal downtime.

Cat5e suits most consumer needs, while Cat6A offers the scalability required by modern office and enterprise networks. For specialized industrial or high-speed backbone environments, Cat8 is unmatched, if deployed within its limitations.

Looking for a network that stands the test of time? Contact our experts at CablesAndKits.com and build it right from the start.
