The Ultimate Guide to Cable Management in Data Centers
In the intricate world of data centers, effective cable management stands as a cornerstone of operational efficiency and reliability. Mismanaged cables can lead to increased downtime, safety hazards, and hindered performance.
This guide offers a deep dive into the essentials of cable management, exploring its benefits, key practices, and the hardware and software tools that facilitate an organized, scalable data center infrastructure.
Let’s get started!
What Is Data Center Cable Management?
Cable management in data centers refers to the systematic arrangement, securing, and maintenance of cable systems to maximize efficiency and minimize risks. It ensures that critical infrastructure is organized in such a way that cables do not become tangled, are protected from potential damage, and are easy to access for maintenance or upgrades.
Benefits of Effective Cable Management
- Reduced Operational Disruptions: Well-managed cables lead to fewer errors and faults, directly reducing instances of unplanned downtime.
- Enhanced Safety: Properly secured cables prevent accidents like tripping, which is crucial in environments where technicians frequently interact with hardware.
- Improved Performance: Organized cables prevent cross-talk and interference between power and data lines, ensuring optimal data transmission speeds and reliability.
Types of Cables in Data Centers
Understanding the various types of cables used in data centers is crucial for efficient network management and maintenance. Each type of cable serves a specific purpose and has unique characteristics that influence system performance and reliability.
Here’s an overview of the main categories:
- Power Cables: These are typically thicker and capable of carrying high voltage to power servers and HVAC systems.
- Network Cables: Commonly seen as Cat5e, Cat6, and Cat6a Ethernet cables, they are crucial for interconnecting servers with switches and routers.
- Fiber Optic Cables: Known for their efficiency over long distances and high data rates, used primarily for backbone connections.
- Storage Cables: Such as SAS (Serial-Attached SCSI) and SATA cables, these are used to connect disk drives, SSDs, and other storage devices within network storage arrays.
Cable Management Best Practices
Effective cable management in data centers is essential for optimizing performance and maintaining system integrity.
Below are four key strategies to enhance the organization and functionality of your network infrastructure:
1. Proper Cable Routing
Organize cables to follow the shortest and most efficient path from start to end points, avoiding obstructions and reducing wear and tear. This conserves space within the data center and simplifies future modifications or expansions by maintaining an orderly infrastructure.
Moreover, it enhances airflow, which is critical for preventing overheating and ensuring the longevity of both the cables and the equipment they connect.
2. Color Coding and Labeling
Implement a color scheme (e.g., red for power, blue for data) and label both ends of each cable for quick identification.This system facilitates faster troubleshooting and maintenance by allowing technicians to easily trace cables through the network.
Additionally, it reduces errors during system upgrades or when integrating new equipment, ensuring that all connections are accurately and efficiently managed.
3. Cable Length Optimization
Use cables that are precisely the right length to reach their destination without excess. Custom-cut cables can minimize slack that can block airflow and look untidy. Optimized cable lengths help maintain a cleaner, more organized appearance, making it easier to access and manage the infrastructure as needed.
4. Separation of Power and Data Cables
Route power cables separately from data cables to prevent electromagnetic interference, which can degrade network performance. This separation enhances the overall reliability and stability of the system by ensuring that data transmissions remain clear and uninterrupted.
Cable Management Hardware
- Cable Trays and Ladder Racks: Provide a structured pathway for cables across the data center, supporting heavy bundles securely.
- Vertical and Horizontal Cable Managers: These are installed in racks or cabinets to guide cables and maintain bend radius, preventing kinks and breaks.

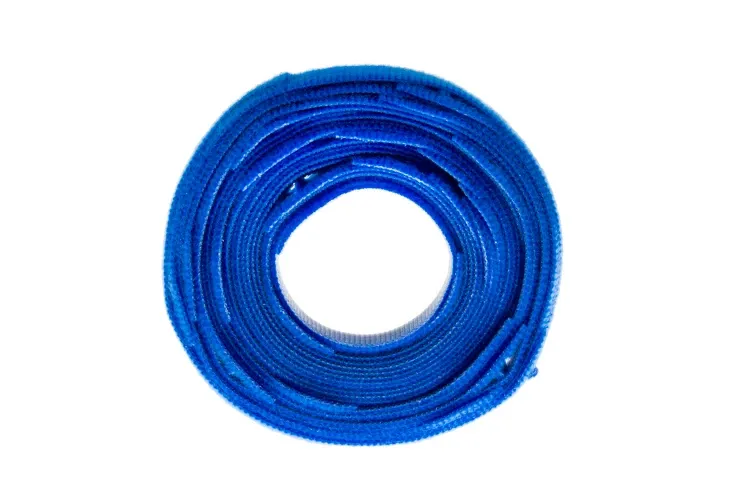

- Cable Ties and Velcro Straps: Used to bundle cables together securely without causing pressure points that could damage the insulation or conductors.
- Patch Panels and Cable Combs: Keep network cables organized at connection points, ensuring clear access for patching and minimal disruption during changes.
Structured Cabling System
A Structured Cabling System is a comprehensive framework of cabling and associated hardware that provides a standardized architecture for telecommunications. This system ensures consistent performance and scalability for building or campus telecommunications systems.
A structured system adapts easily to changes, upgrades, or expansions, with minimal disruptions and cost-effective maintenance.
1. TIA-942 Standards for Data Center Cabling
These standards provide a framework for data center design, emphasizing redundancy, pathways, and spaces for optimized cable management.
2. Planning and Design Considerations
Involves detailed mapping of current and future connectivity needs, ensuring that cable management solutions support both immediate and long-term objectives.
Airflow Management and Cooling Efficiency
Airflow management and cooling efficiency are critical factors in maintaining optimal performance and energy efficiency in data centers. Effective cable management plays a significant role in achieving these objectives by ensuring unobstructed air circulation.
Impact of Cable Management on Airflow
Improperly managed cables can block airflow in cooling paths, leading to increased thermal load and potentially higher energy costs due to cooling inefficiencies.
Maintenance and Troubleshooting
Effective maintenance and troubleshooting are critical components of cable management in data centers. Here's a detailed breakdown of these crucial activities:
Cable Inspections
Scheduled cable inspections are vital for preemptive maintenance, ensuring that all cabling infrastructure remains in optimal condition and functions effectively. During these inspections, technicians should:
- Check for Visible Wear and Damage
- Test for Performance Issues
- Verify Environmental Conditions
- Document and Report
Replacing and Upgrading Cables
Developing standardized procedures for replacing and upgrading cables ensures that these operations cause minimal disruption to data center operations. This process should include:
- Planning and Preparation
- Safe Removal
- Efficient Installation
- Verification and Testing
Final Thoughts
Effective cable management is not just about organization—it's a foundational practice that enhances the safety, performance, and scalability of data centers. By implementing structured and strategic cabling solutions, facilities can expect not only to streamline operations but also to significantly cut down on both risks and operational costs.
Adhering to best practices and standards ensures that data centers remain robust against technological shifts and growing demands.
