What Is PoE Splitter: Your Ultimate In-Depth Solution Guide!

Power over Ethernet (PoE) has revolutionized the way we connect devices, combining both power and data transmission through a single network cable. It’s a smart way to make installations easier and cut down on costs, which is why so many businesses and tech enthusiasts love it.

One of the key pieces that make PoE so effective is the PoE splitter. This little device lets you power non-PoE gadgets using your PoE network. Whether you're building a new network or enhancing an existing setup, understanding PoE splitters is crucial for ensuring precise and reliable power delivery to your devices.

This guide aims to provide you with a clear understanding of how PoE splitters work, what they are used for, and the benefits they offer in various setups. Whether you're looking to power a non-PoE device or streamline your power management, this guide will walk you through everything you need to know. Let’s dive right in!

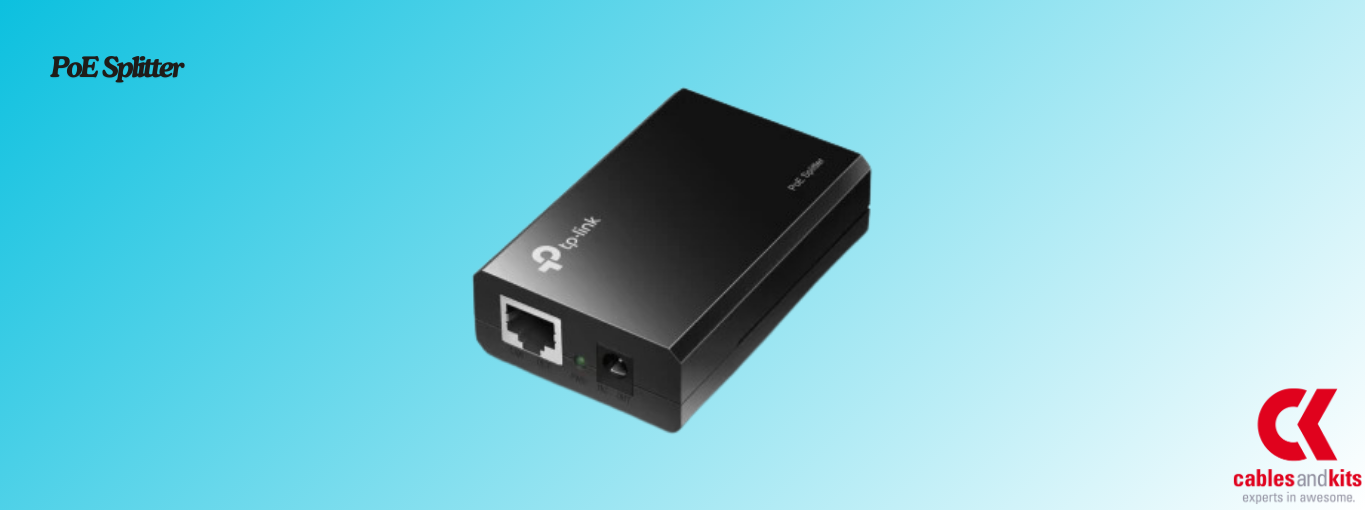

What is a PoE Splitter?

A PoE splitter helps you connect PoE networks with devices that don’t support PoE. Normally, PoE technology sends power and data through a single Ethernet cable, but not all devices are built to handle both at once.

That’s where a PoE splitter comes in. It separates the signal into two parts, one for power and one for data. This makes it perfect for powering non-PoE devices such as IP cameras, wireless access points, and VoIP phones, especially in areas where power outlets are not readily available.

Key Components of PoE Splitter

A typical PoE splitter consists of several key components that ensure it performs its role efficiently.

Here are the key features of a PoE splitter:

Input Port: This port links directly to the Ethernet cable that supplies both power and data, coming from a PoE switch or injector.
Data Output Cable: This cable separates the data from the power and transmits it directly to the non-PoE device, ensuring smooth and efficient data transfer without any power interference.
Power Output Cable: Tailored for non-PoE devices, this cable provides essential power with flexible voltage options like 5V, 9V, and 12V, ensuring your equipment runs smoothly.
Power Rating: This ensures your splitter provides essential power your device needs. This way, your device runs smoothly without any worry of overload or damage.
LED Indicators: These lights clearly show the power status and operational state of the splitter, so you always know when everything is running smoothly.
Compliance with Standards: Rest assured, this device meets the requirements of IEEE 802.3af or 802.3at standards, depending on its power output capacity. This compliance guarantees compatibility with a wide range of devices and provides reliable performance, ensuring safe and efficient operation in your network setup.

How Does a PoE Splitter Work?

Here are two primary scenarios where PoE splitters are typically employed:

Connecting a PoE Switch to Non-PoE Devices

If you have a PoE switch that delivers both power and data through a single Ethernet cable, using a PoE splitter is a smart move.

It helps you connect non-PoE devices like older IP cameras or wireless access points without any hassle. The splitter separates the power and data into two lines, one for power and the other for data. This setup allows your device to function even if there’s no power outlet nearby. By using a PoE splitter, you simplify the installation process and reduce the need for additional wiring, which can help lower overall costs.

Connecting PoE and Non-PoE Devices to a Non-PoE Switch

If you’re using a non-PoE switch but need to connect a mix of PoE and non-PoE devices, a PoE splitter paired with a PoE injector can make things possible.

The injector adds power to the Ethernet cable, and the splitter then separates that power from the data, sending each to where it needs to go on your non-PoE device. This setup helps you connect different devices to your network smoothly, ensuring everything gets the power and data it needs without any hassle.

How to Choose the Right PoE Splitter

Selecting the right PoE splitter is key to making sure your devices get the appropriate power and data they need to operate effectively. To help you make the best choice, here are some straightforward tips to walk you through the process:

Assessing Device Power Requirements

To begin with, start by checking your device's power needs, such as the voltage and wattage, particularly for non-PoE devices like IP cameras or VoIP phones. Make sure the splitter matches these needs and meets IEEE 802.3af (up to 15.4W) or IEEE 802.3at (up to 30W) standards. This way, you protect your equipment and ensure it works smoothly.

Compatibility with Network Infrastructure

Next, ensure the PoE splitter works with your current PoE switch or injector by following IEEE 802.3af/t standards. Check the cable length and type since these factors impact power delivery and data quality. Ensuring compatibility enables seamless integration and reliable performance.

Quality and Brand Considerations

Finally, choose a reliable PoE splitter from a trusted brand. Look for good warranties and solid customer support, these are good signs the product won’t let you down. Checking out user reviews can also give you a heads-up on how well the splitter performs in real-world use. A well-built splitter will keep things running smoothly and help you avoid annoying network issues.

At Cablesandkits, we offer everything you need, from reliable products, strong warranties, and dedicated customer support, to keep your network running smoothly and without interruption.

Step-by-Step Guide to Setting Up a PoE Splitter

Setting up a PoE splitter is a straightforward process, but to ensure everything goes smoothly, it’s important to follow these steps carefully.

Step 1: Gather the Necessary Equipment

Ensure you have all the required components:

PoE Splitter: Use Cablesandkits PoE splitter that gives you a steady 12V DC output, making your setup more efficient
PoE Network Switch: Delivers both power and data efficiently through a single Ethernet cable, making your network setup easier and more up-to-date.
IP Camera: A device that doesn’t come with Power over Ethernet (PoE) capabilities, so it needs one connection for power and another for data.
UTP Cables: UTP cables help link your devices together, making it easy to transfer both data and power seamlessly

Step 2: Connect the PoE Splitter to the IP Camera

Begin by connecting the two output cables of the PoE splitter to the IP camera:

Power Output Cable: Connect this cable to the power input of the IP camera. This cable will deliver the necessary power to the device.
Data Output Cable: Connect this cable to the data input of the IP camera, ensuring the camera receives data for operation.

Step 3: Connect the PoE Splitter to the PoE Network Switch

Start by plugging one end of the UTP cable into the PoE splitter’s input port. After that, connect the other end to the Gigabit RJ45 port on your PoE network switch.

Note: This setup ensures the splitter gets both power and data directly from the switch.

Step 4: Verify the Connection

After you’ve connected everything, go ahead and turn on your PoE network switch. Check that the PoE splitter is working, sending power and data separately to your IP camera through the right cables. Also, make sure to check that the camera is working, so you know it’s getting both power and data properly

Step 5: Testing and Troubleshooting

Finally, make sure the IP camera is functioning correctly. If you encounter problems, like the camera not powering on or failing to receive data, double-check the connections and verify that the PoE splitter, network switch, and camera are compatible.

By following these steps, you can easily set up a PoE splitter, ensuring your non-PoE devices run smoothly within your PoE network, even in places where there’s no AC outlet nearby.

Common Applications of PoE Splitters

PoE splitters are a handy tool, perfect for situations where you need to send both power and data through a single cable. They make life easier in a variety of setups.

IP Cameras and Surveillance Systems

One of the most popular ways businesses use PoE splitters is with IP cameras and surveillance systems. Very often, these cameras require power and data but may be located at a long distance from the nearest power source. So, a PoE splitter lets you power the camera while keeping the data connection strong, even if the camera is in a tricky spot.

Wireless Access Points (WAPs)

Another common use of PoE splitters is in Wireless Access Points. These devices are generally mounted on the wall or ceiling at a distance from power outlets. Using the PoE splitter, you can power your WAP and securely connect your data without running additional cables, thus leaving an utterly neat, clean workspace.

VoIP Phones

Another device that benefits from PoE splitters is a VoIP phone. These phones need reliable power and a steady data connection to work properly. With a PoE splitter, you can keep the phone running smoothly, even if it's far from a power outlet, ensuring continuous communication without interruptions.

Other IoT Devices

PoE splitters are also great for other IoT devices that need both power and data but are placed in areas without easy access to power outlets. Whether it's smart lights, environmental sensors, or any other connected devices, a PoE splitter helps keep them powered without the need for extra wiring, making setup simpler and more efficient.

To conclude, PoE splitters are versatile and essential tools that enable the seamless integration and reliable operation of a wide range of devices, from IP cameras to IoT devices, making them indispensable for any modern network.

PoE Splitter FAQs: Common Questions and Clarifications

Q: What is a PoE Splitter?

A: A PoE splitter isolates power and data from a PoE signal, enabling non-PoE devices, such as certain IP cameras or wireless access points, to receive power through the Ethernet cable.

Q: What is a PoE Injector?

A: A PoE injector delivers power to a data stream from a non-PoE switch by combining power and data into a single Ethernet cable, supporting PoE devices like VoIP phones or cameras.

Q: What is the difference between PoE Splitter and PoE Injector?

A: The key difference lies in their functions: a PoE splitter is used to separate power and data for non-PoE devices within a PoE network, while a PoE injector adds power to data, combining them into one cable to power PoE devices when using a non-PoE switch.

Q: What is a PoE Splitter used for?

A: A PoE splitter is used when there’s a need to provide power to non-PoE devices, such as older IP cameras or wireless access points, within a PoE-enabled network.

Q: When do I use a PoE Injector?

A: Use a PoE injector when you need to power PoE devices like VoIP phones or cameras, but your network is running on a non-PoE switch.

Q: What is Power over Ethernet (PoE)?

A: Power over Ethernet (PoE) is a technology that enables network cables to carry both data and power, eliminating the need for separate power supplies. This makes it a cost-effective, flexible, and reliable solution for devices like IP cameras, wireless access points, and VoIP phones.

Q: What does the IEEE 802.3af PoE standard provide?

A: The IEEE 802.3af PoE standard allows network cables to deliver up to 15.4 watts of power per port, with around 12.95 watts reaching the device. This standard is commonly used for IP cameras, VoIP phones, and wireless access points.

Q: What is the IEEE 802.3at PoE+ standard?

A: The IEEE 802.3at, or PoE+ standard, increases power delivery over Ethernet cables to 30 watts, with each connected device receiving up to 25.5 watts. This standard supports more advanced and power-intensive devices.

Q: What is the power level of IEEE 802.3bt?

A: The IEEE 802.3bt standard, also known as PoE++ or Type 4, offers higher power levels, with Type 3 providing up to 60 watts and Type 4 delivering up to 100 watts. This standard is ideal for powering high-energy devices such as LED lights, thermal cameras, and large digital signage screens.

Q: How do PoE standards serve modern networking?

A: PoE standards like IEEE 802.3af, 802.3at, and 802.3bt provide flexible power delivery options, supporting a wide range of devices and making them trusted solutions for modern networking needs.

Final Thoughts

PoE splitters are an essential component of any modern network, offering a seamless and cost-effective way to power non-PoE devices while maintaining strong data connections. Whether you're deploying IP cameras in challenging locations, powering VoIP phones across your entire office, or integrating IoT devices into your network, PoE splitters provide the flexibility and reliability needed to get the job done. Their ability to adapt to different devices and environments makes them indispensable in today’s technology landscape.

When you're ready to elevate your network with power solutions that truly deliver, look no further. We offer a wide range of PoE splitters and accessories designed to meet your needs. Explore our products today and discover how our quality solutions can simplify your network setup.
