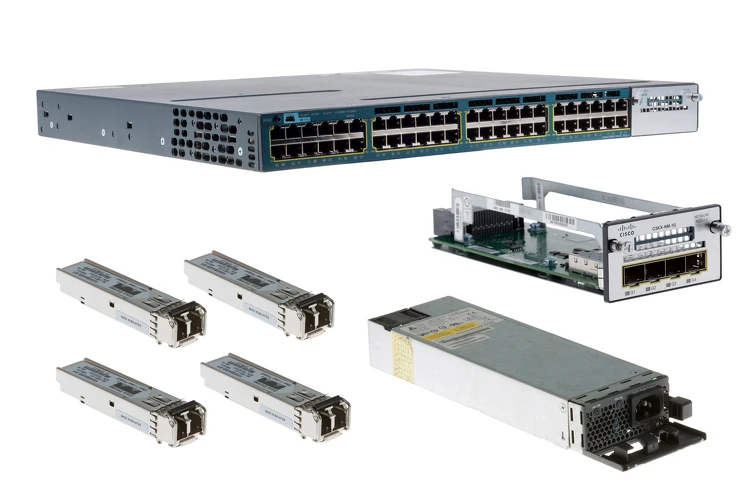

Cisco 3560X Series 48 Port PoE+ Deployment Kit, WS-C3560X-48P-S, Refurbished, Original

WS-C3560X-48P-S-DP | Cisco Switch Bundle | Catalyst 3560X | 48 Port | PoE+

Cablesandkits deployment packs are kind of like your favorite frozen dinner, everything is in one box and all you have to do is turn on the oven. Our Cisco switch bundles are designed for the end user in mind. From startups to large business, our deployment kits will suit the needs for your ever-growing and adapting business.

Cisco 3560 X switches help maximize productivity by giving IT managers the tools needed to support enterprise applications and advanced traffic management. With an array of network modules and redundant power supply options available, these standalone switches can be customized and scaled to support nearly any application.Options for the 3560X include Gigabit and 10GE uplink ports, PoE+ and non-PoE support, redundant fans and an array of port densities allow the devices to be tailored and customized. By upgrading IOS versions users and add OSPF (Open Shortest Path First) routed access, multicast routing, IPv4 and IPv6 support,advanced QoS (Quality of Service). Hardware security,Cisco Energywise power management and type A and B USB interfaces are standard. These feature rich, fixed configuration devices are the switch of choice for small to medium size business looking to maximize IT budgets while maintaining rich functionality.

PoE+ (or 802.at) builds on the legacy of Cisco's industry leading PoE (802.af) and Inline Power legacy. This new power delivery method allows 30W of power per port to PD's (Powered Devices) as opposed to 15.4W with standard PoE. This decreases deployment costs and TCO by eliminating the need for power runs to the PD instillation location. Automatic power negotiation manages power consumption and keeps wattage transmission from the switch at the appropriate levels eliminating electrical waste. In addition, PoE+ devices are backwards compatible with older PoE 802.3af, so you get the best of both worlds!

The 3560-X and 3750-X series of switches are also equipped with a network module slot that accepts one of four optional modules for up-linking. With a combination of copper, SFP and SFP+ support these modules continue to lower the TCO and add the flexibility and investment protection you need. This 3560X-48P-S has 48, PoE+ 10/100/1000 auto-sensing ports and (1) NM slot.

TheWS-C3560X-48P-S will enhance productivity and lower cost by giving users controlled, managed and highly available access to the applications and borderless experience that drives today's communication.

Features - WS-C3560X-48P-S:

• 48 Port
• 10/100/1000
• 435W Available for PoE/PoE+
• PoE+
• 1RU
• 1 Network Module Slot
• Dual redundant Fans
• Optional Redundant Power Supplies
• Ships with (1)C3KX-PWR-715AC by default from Cisco*
• EnergyWise Efficient
• IP Base Image
• USB A port for storage and USB - B mini port for console connectivity
• Out-of-Band Ethernet Management Port
• 101.2 mpps Forwarding Bandwidth (with two 10GbE Uplinks)
• 160 Gbps Switching Fabric
• Static Routing - 16 routes
• 64MB Flash/256MB DRAM (standard)
• 1000 VLANs (Max)
• 149,594 hrs MTBF (Mean Time Before Fail)
• RPS Ready (expandable Power System XPS 2200)
  • AutoQoS (Automatic QoS)
  • DHCP (Dynamic Host Configuration Protocol)
  • DTP (Dynamic Trunking Protocol)
  • PAgP (Port Aggregation Protocol)
  • LACP (Link Aggregation Control Protocol)
  • MDIX (Automatic media-dependent interface crossover)
  • UDLD (Unidirectional Link Detection Protocol)
  • SDM (Switching Database Manager)
  • ARP (Local Proxy Address Resolution Protocol
  • IGMP (Internet Group Management Control Protocol)
  • IGMP Filtering
  • MVR (Multicast VLAN Registration)
  • Storm Control (Per-Port Broadcast, Multicast and Unicast)
  • Voice VLAN
  • VLAN1 Minimization
  • VTP (VLAN Trunking Protocol)
  • Dynamic VLAN assignment
  • RSPAN Remote Switch Port Analyzer
  • Layer 2 Traceroute
  • TFTP (Trivial File Transfer Protocol)
  • NTP (Network Timing Protocol)
  • Equal-cost routing and load balancing (Layer 3)
  • EEM (Embedded Event Manager)
  • SLAs (IP Service-level Agreements)
  • Private VLAN's
  • Private VLAN Edge
  • Multidomain Authentication
  • Port Based ACL's
  • SSH (Secure Shell Protocol)
  • Kerberos
  • SNMPv3 (Simple Network Management Protocol Version 3)
  • SPAN (Switch Port Analyzer)
  • TACACS+ and Radius Authentication
  • MAC Address Notification
  • Multilevel security on console access
  • BPDU (Bridge Protocol Data Unit)
  • WTD (Weighted Tail Drop)
  • MACsec
  • CiscoWorks LAN Management Solution
  • Cisco TrustSec
  • Cisco Network Assistant
  • Cisco Catalyst Smart Operations
  • Borderless Networks
  • Routed Access Support
  • 1.75 x 17.5 x 18(inches)
  • 16.4lbs

Features- C3KX-NM-1G:

• Four GbE port network module
• 1 gigabit speed

Features-C3KX-PWR-715WAC :

• Maximum Power - 715W
• Input Current- 10-5A
• Output Ratings- [email protected]

Features - GLC-SX-MM:

• Cisco Original
• SFP Formfactor
• Multimode Fiber
• 1000Base-SX (Gigabit)
• LC Connector
• 850-nm
• Dimensions: 8.5 x 13.4 x 56.5 mm

Includes:

• Cisco Catalyst WS-C3560X-48P-S PoE+ Switch
• 4 GLC-SX-MM
• 2 C3KX-PWR-715WAC
• 1 C3KX-NM-1G
• Cisco 3750 series rack mount kit
• Console cable
• AC power cord
