Cisco 3560X Series Deployment Kit, 10G, 24 Port, WS-C3560X-24P-S-DP10G, Refurbished, Original
| Port Quantity | 24 | Series | Catalyst 3560X |
| Rack Units | 1RU | Software | IP Base |
| OSI Layer | L3 | Stacking | Power Only (StackPower) |
| Deployment Pack | Yes | Hot Swappable Modules | Yes |
| Hot Swappable Fans | Yes (2 Modular Fans) | Hot Swappable Power Supply | Supports Duals |
| Energy Efficient | Yes | PoE Compatibility | PoE+ |
| Port Speed | 10/100/1000 | Ram | 256 MB |
| Display Condition | CK Certified Refurbished | Poe Budget | 435W |
| Flash | 64 MB | Ports | 24 10/100/1000 PoE+ |
| Min Operating Temp | 23° F | Max Operating Temp | 113°F |
| Jumbo Frame Support | 9216 bytes | Predicted Reliability | 181,370 hours |
| Mac Addresses | 6K | Vlan Ids | 4K |
| Min Storage Temp | -40°F | Max Storage Temp | 158ºF |
| Operating Humidity | 5 - 95% (non-condensing) | Storage Humidity | 5 - 95% (non-condensing) |
| Ac Input Voltage | 100 to 240 VAC | Fans | 2 Total, Redundant |
| Stacking Bandwidth | - | Unicast Routes | 8K |
| Available PoE Power | 435W | Forwarding Rate Based On 64-Byte Packets | 65.5 mpps |
| Power Specifications | 100-240VAC, 50-60 Hz, 10-5A | Operating Temp | 23°F to 113°F |
| Max Active VLANS | 1005 | Switched Virtual Interfaces (SVI's) | 1000 |
| Brand | Cisco | DRAM | 256 MB |
| Switching Capacity | 160 Gbps | Switching Capacity W/Stacking | - |
| Product Depth | 18.0 in | Product Height | 1.75 in |
| Product Width | 17.5 in | Rack Units Consumed | 1RU |
WS-C3560X-24P-S-DP10G | Cisco Switch Bundle | Catalyst 3560X | 24 Port | 10G

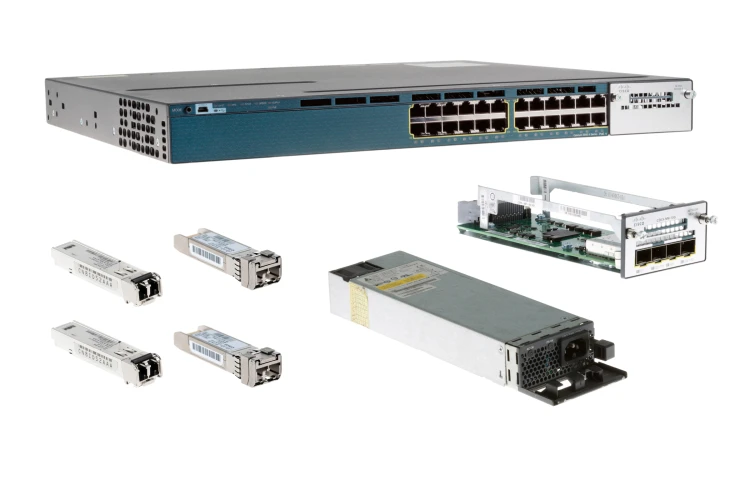

This Cisco Catalyst 3560X Deployment Kit includes:
- (1) WS-C3560X-24P-S Switch
- (2) GLC-SX-MM SFP Modules
- (2) SFP-10G-SR SFP Modules
- (1) C3KX-PWR-715WAC Power Supply
- (1) C3KX-NM-10G Ethernet Network Module
Features - WS-C3560X-24P-S:
- Ports: 24 10/100/1000 Ethernet PoE+
- Product Line: Cisco Catalyst
- Form Factor: Desktop, Rack Mountable
- Rack Units: 1RU
- Power Over Ethernet (PoE): PoE+
- Subtype: Gigabit Ethernet
- Flash Memory: 64 MB
- Stackable: Yes
- VLANs (Max): 1,000
- MTBF: 181,370
- Manufacturer: Cisco
- Type: Switch
- Model: 3560X-24P-S
- Software: IP Base
- Dimensions: 1.75" x 17.5" x 18"
- Weight: 15.7 lbs
- DRAM: 256 MB
- Jumbo Frame Support: 9,216 bytes
- Power Supply: Internal
- Switching Fabric: 160 Gbps
- MAC Addresses: 6k (default)
- Forwarding Rate: 101.2 mpps
Features - GLC-SX-MM:
- Brand: Cisco
- Cable Type: Multimode Fiber
- Form Type: SFP
- Interface: LC Duplex
- Cabling Distance (Max): 1 km (3,280 ft) (OM3)
- Wavelength: 850 nm
- Speed: 1000Base-SX (Gigabit)
- Min Required Fiber Cable: OM1
- Weight: 0.04 lbs
Features - SFP-10G-SR:
- Brand: Cisco
- Cable Type: Multimode Fiber
- Form Type: SFP+
- Interface: LC Duplex
- Cabling Distance (Max): 300 Meters
- Wavelength: 850 nm
- Speed: 1000Base-SX (Gigabit)
- Min Required Fiber Cable: OM3
- Weight: 0.16 lbs
