Ultimate Guide to SFP 10GBASE, SFP 40GBASE, and QSFP 40GBase Modules

In today’s fast-paced digital world, having a solid and efficient network is crucial. Whether you’re running a small business or a large enterprise, picking the right transceiver modules can significantly boost your network’s performance and reliability.

This guide will simplify the essentials of SFP 10GBASE modules and SFP 40GBASE modules, explain the differences between S-Class and Non-S-Class modules, and help you understand the specific roles of SFP 10GBase SR, SFP 10GBase LR, SFP 10GBase ER, SFP 10GBase ZR, SFP 40GBase LR4, and SFP 40GBase SR4 modules.

What are SFP 10GBASE Modules?

SFP 10GBASE modules are essential components in modern networking, designed to enable high-speed data transfer over 10 Gigabit Ethernet connections. They are small, hot-swappable devices that connect network hardware, such as switches and routers, to fiber optic or copper networking cables.

SFP 10GBASE modules are engineered to handle data speeds of 10 gigabits per second (Gbps), making them ideal for environments that require fast and reliable data transmission, such as data centers, enterprise networks, and campus networks.

These SFP 10GBase modules support various types of connections, including single-mode fiber (SMF) for long distances and multimode fiber (MMF) for shorter distances. This versatility allows them to be used in a wide range of applications, from connecting devices within a single room to linking buildings on a large campus.

What are the types of SFP 10GBASE Modules?

Let’s break down what each type does:

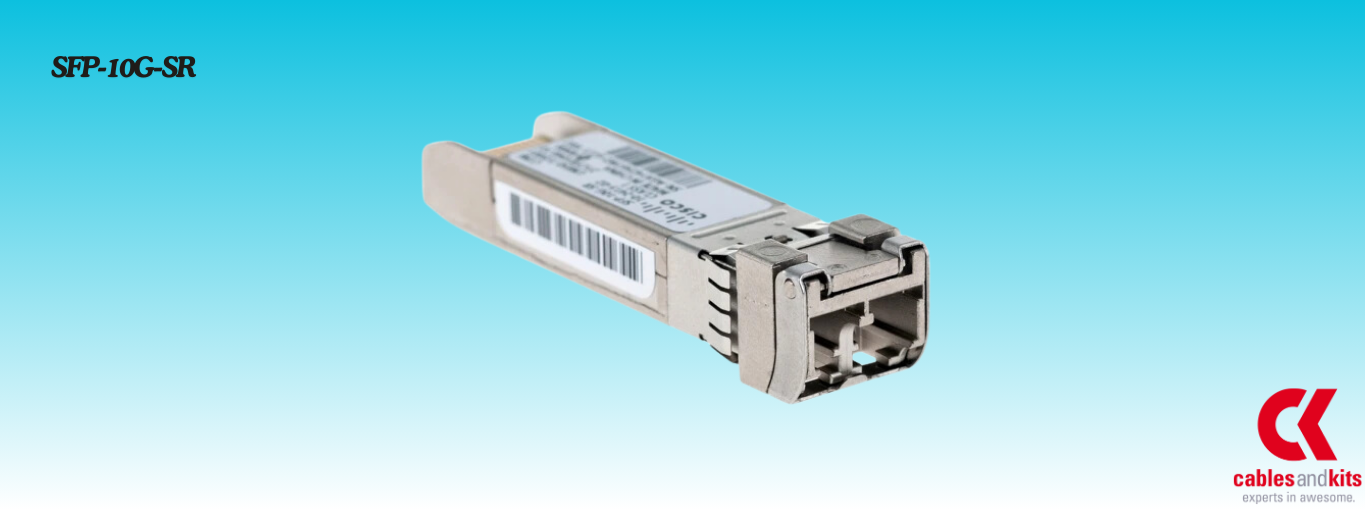

• SFP-10G-SR:

  If you have a room or building full of computers and you want them to talk to each other quickly. The SFP-10G-SR is perfect for this. It uses an 850 nm wavelength over multimode fiber, which means it can handle data up to 300 meters with OM3 fiber and 400 meters with OM4 fiber. Plus, it’s super easy to plug in and start using, and it even tells you how it’s doing with real-time monitoring.

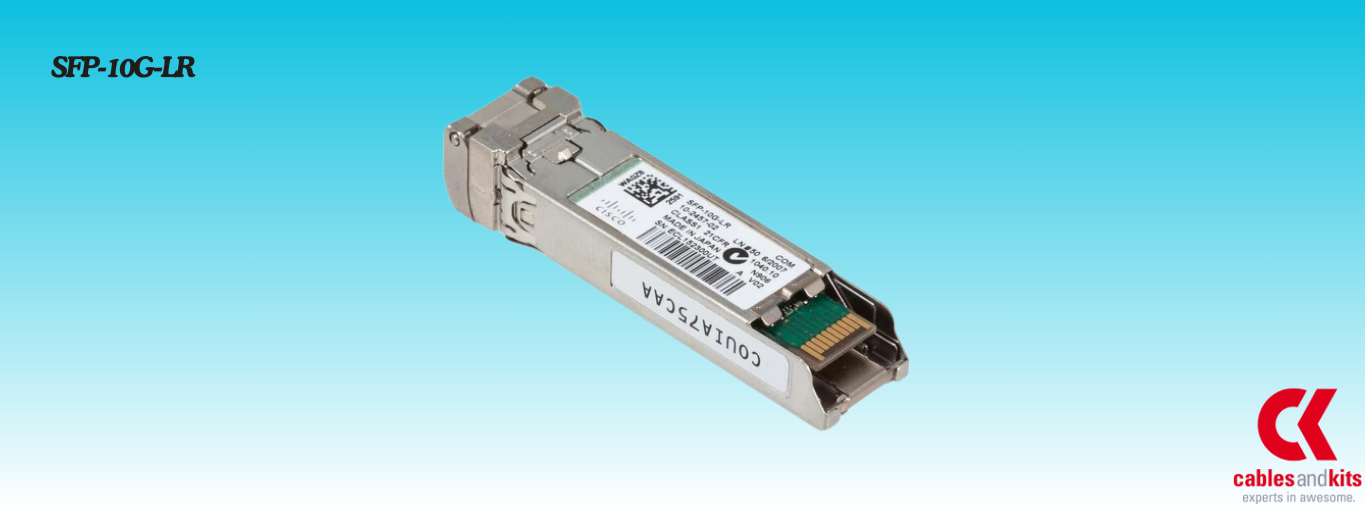

• SFP-10G-LR:

  Now, let’s say you have a big campus with buildings far apart. The SFP-10G-LR is what you need. It can send data up to 10 kilometers over single-mode fiber at a wavelength of 1310 nm. This makes it great for connecting far-apart locations like different buildings in a school or a big office park, as well as Metro Area Networks.

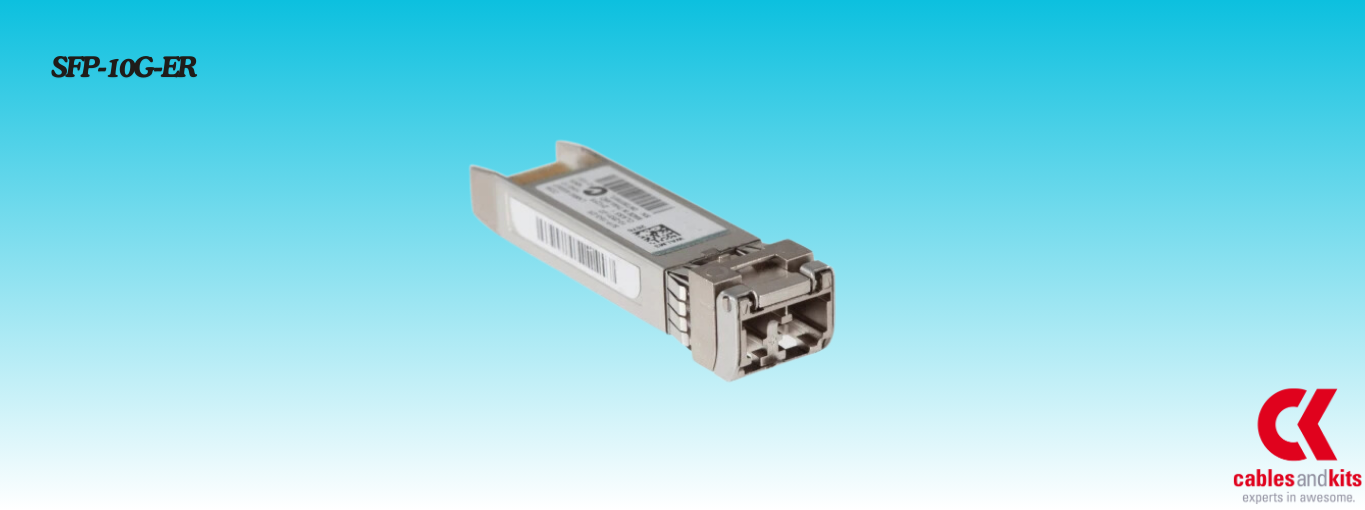

• SFP-10G-ER:

  If you need to send data even farther, the SFP-10G-ER is your go-to. It works at 1550 nm and can handle distances up to 40 kilometers. This is perfect for really large networks or data centers that need to send data over long distances.



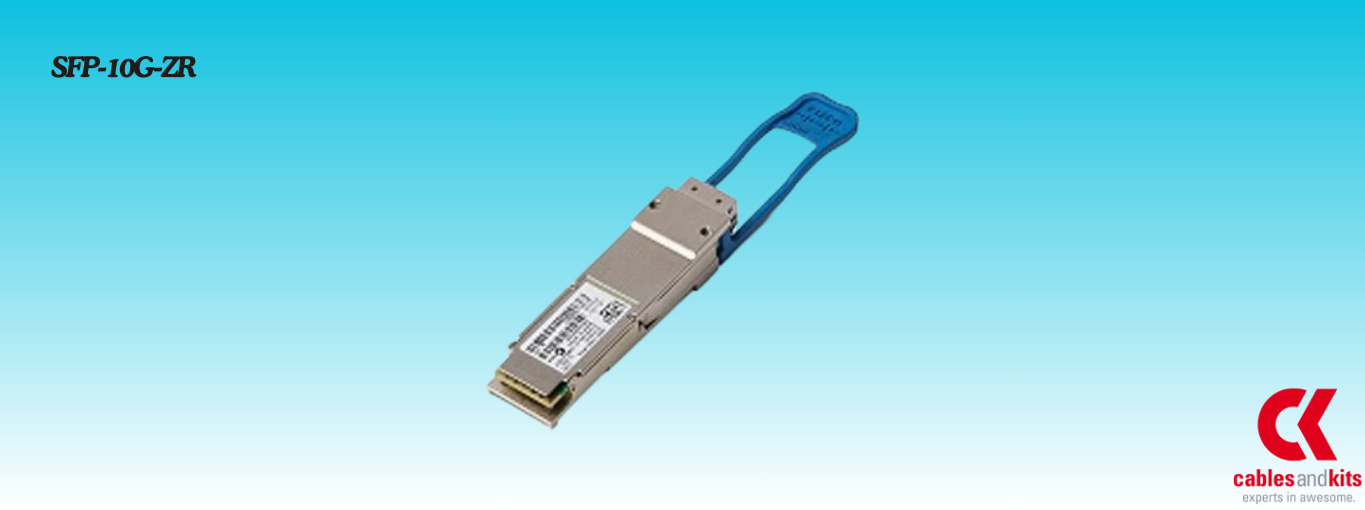

• SFP-10G-ZR:

  If you need to connect networks in different cities. The SFP-10G-ZR can send data up to 80 kilometers at 1550 nm. It’s ideal for service providers and large networks that span across vast areas.



What are SFP 40GBASE Modules?

SFP 40GBASE modules are advanced optical transceivers designed to support high-speed 40 Gigabit Ethernet (40GbE) connections in modern data centers and high-performance computing networks. These modules enable fast data transmission over short and long distances, making them essential for maintaining robust and efficient network infrastructures.

Key Features of SFP 40GBASE Modules:

• High-Speed Data Transfer: SFP 40GBASE modules facilitate data transfer at rates of 40 gigabits per second, ensuring rapid and efficient communication between network devices.
• Versatility: These modules are compatible with various types of fiber optic cables, including single-mode fiber (SMF) for long distances and multimode fiber (MMF) for shorter distances.
• Multiple Interfaces: SFP 40GBASE modules come with different interfaces such as LC and MPO connectors. LC interfaces are used for long-distance transmission, while MPO interfaces are ideal for short-distance transmission and support 4x10G connectivity.
• Hot-Swappable: They are hot-swappable, meaning you can replace or upgrade them without needing to power down your system, ensuring minimal disruption to network operations.
• Energy Efficiency: SFP 40GBASE modules are designed to consume low power, contributing to the overall energy efficiency of the network.

What are the types of SFP 40GBASE Modules?

Here’s what you need to know:

• QSFP-40G-SR4:

  The QSFP-40G-SR4 module is great for short-range connections at 40 Gigabit Ethernet speeds. It can reach up to 150 meters with OM4 fiber and 100 meters with OM3 fiber. It’s also very versatile because it can split into 4x10G connections if needed.

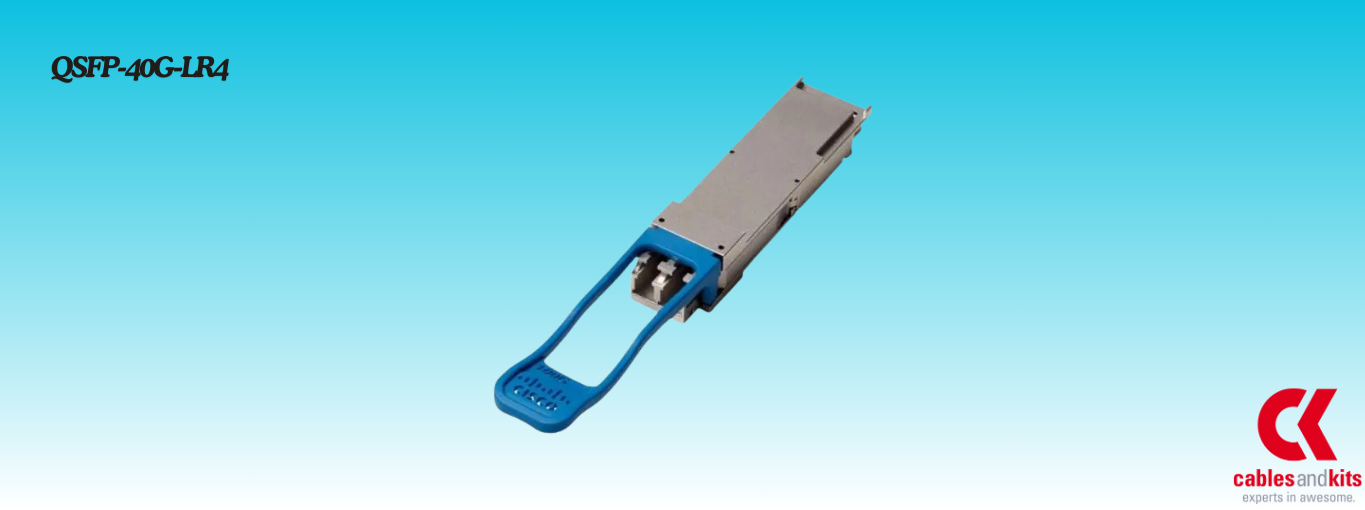

• QSFP-40G-LR4:

  For longer distances, the QSFP-40G-LR4 is the answer. It can send data up to 10 kilometers over single-mode fiber at 1310 nm. It’s very reliable and works well in high-density network environments.



What Are S-Class Modules?

The term "S-Class" refers to a specific category of Cisco optical transceiver modules designed to be simpler and more cost-effective compared to their standard counterparts. Cisco makes four specific 10G S-Class module types that have the letter ‘S’ in their names. These modules have fewer features, making them easier to deploy and operate.

Furthermore, Specialized modules (S-Class) are specifically designed and optimized for Cisco systems and environments. S-Class modules are designed to run in normal temperature settings in data centers. They are cost-effective and efficient for standard data center use.

What Are Non-S-Class Modules?

Non-S-Class modules are the broader category of Cisco 10G modules that include more features and support a wider range of applications. They can handle more demanding environments and offer greater versatility in terms of protocol support, temperature range, and transmission distance.

What Are the Differences Between S-Class and Non-S-Class Modules?

Let's dive into the differences between S-Class and Non-S-Class modules in more detail, focusing on various aspects such as protocols, operating temperatures, compatibility, price and additional insights.

• Protocols:

  S-Class modules are like specialists in Ethernet. They focus on providing top-notch performance in Ethernet-only environments. Think of them as experts in a single field, making sure everything runs smoothly.

  On the flip side, Non-S-Class modules are more like generalists. They can handle not just Ethernet but also other protocols like Fibre Channel over Ethernet (FCoE), Optical Transport Network (OTN), and WAN-PHY. This versatility makes them a great fit for networks that need to do more than just Ethernet.

• Operating Temperatures:

  S-Class modules thrive in stable conditions, much like a person who works best in a comfortable office. They are ideal for places like data centers where the temperature stays between 0 and 70℃.

  In contrast, Non-S-Class modules are built to be rugged. Imagine someone who can work both in the freezing cold and the blazing heat. They operate efficiently from -40 to 85℃. This makes them perfect for outdoor setups and places where the temperature can swing wildly.

• Compatibility:

  If you use a lot of Cisco equipment, S-Class modules are a great choice. They integrate smoothly and perform reliably within Cisco equipment, offering a cost-effective solution. There is some limited compatibility, especially for modules operating at 1310 nm.

  Non-S-Class modules, however, are highly flexible and compatible with a variety of networking equipment from different manufacturers, ensuring they fit into diverse network setups without issues.

• Price:

  S-Class modules are more affordable, making them an excellent option for cost-sensitive projects. They provide great value, especially if you’re invested in the Cisco ecosystem.

  Non-S-Class modules are usually more expensive but offer greater flexibility and can handle a wider range of protocols and environmental conditions, which justifies the higher cost.

• Additional Insights:

  S-Class modules are ideal for maximizing investment in Cisco equipment within controlled environments. They are reliable and cost-effective for standard Ethernet needs.

  Non-S-Class modules are suited for more demanding network requirements, including long-distance transmission and multiple protocol support.

What are the Differences Between SR, LR, ER, ZR, LR4, and SR4 Modules?

Understanding the specific roles of each type of module is crucial for making informed decisions:

• SR (Short Range): Think of SR modules as the go-to for short-distance connections using multimode fiber. Examples: SFP-10G-SR, QSFP-40G-SR4.
• LR (Long Range): LR modules are designed for longer distances over single-mode fiber. Examples: SFP-10G-LR, QSFP-40G-LR4.
• ER (Extended Range): For even longer distances, ER modules are used, typically up to 40 kilometers. Example: SFP-10G-ER.
• ZR (Ze Best Range): These modules support ultra-long distances up to 80 kilometers. Example: SFP-10G-ZR.
• LR4 (Long Range 4): These support 40G connections over single-mode fiber up to 10 kilometers. Example: QSFP-40G-LR4.
• SR4 (Short Range 4): These support 40G connections over multimode fiber, with the ability to break out into 4x10G connections. Example: QSFP-40G-SR4.

What Are the Different Types of QSFP+ Transceivers?

QSFP+ transceivers are essential for high-speed internet in data centers. QSFP+ stands for Quad Small Form-Factor Pluggable Plus. These modules provide high-density 40G connectivity for high-performance networks and modern data centers. They have four independent receive and transmit optical channels that can connect to another 40G QSFP+ transceiver or be distributed to four separate 10 Gigabit SFP+ transceivers.

QSFP+ Interface: LC & MPO

There are a variety of 40G transceivers available on the market, but they typically follow the QSFP MSA standard. This means 40G QSFP+ connectors can be either 12-fiber MPO or duplex LC. Here’s the difference:

• LC Interface: Used for long distances via single-mode fiber (SMF).
• MPO Interface: Except for 40GBase-PLR4 and 40GBase-PLRL4, Used for short distances via multimode fiber (MMF). MPO interfaced QSFP+ transceivers can be used in 4x10G connectivity using a breakout cable, unlike LC interfaced ones.

Examples of QSFP+ Transceivers:

• 40GBase-SR4: Ideal for short-distance transmission (up to 100m on OM3 and 150m on OM4). It’s an MPO-interfaced parallel fiber optic transceiver with a 4x10G transmission pattern.
• 40GBase-LR4: Used for long-distance transmission (up to 10km via single-mode fiber with duplex LC connectors). It multiplexes four sending lanes onto one fiber strand and four receiving lanes onto another.
• 40GBase-CSR4: Similar to 40GBase-SR4 but supports longer transmission distances (up to 300m on OM3 and 400m on OM4).
• 40GBase-LR4L: Supports long-range transmission up to 2km, a lighter version of 40GBase-LR4.
• 40GBase-ER4: Handles long-distance transmission up to 40km over single-mode fiber with duplex LC connectors.

How to Pick the Right Module?

Choosing the right module depends on your specific network needs:

1. Consider Your Environment: For controlled environments like data centers with a cisco setup (with stable temperature and humidity), S-Class modules can be a cost-effective choice. For more demanding or varied environments, Non-S-Class modules offer greater versatility.
2. Match Transmission Distance to Needs: Determine the required transmission distance and choose a module that meets or exceeds this range.
3. Check Compatibility: Ensure the chosen module is compatible with your existing networking equipment and standards.
4. Evaluate Cost vs. Features: Balance the need for specific features against your budget to find the best fit for your network.
5. Existing Cisco Equipment: If you already have all Cisco equipment, opting for the S-Class variant of the desired modules can be a perfect choice. S-Class modules are specialized for Cisco environments, offering high performance at a more cost-effective price. They are designed for efficient operation in controlled environments, making them ideal for data centers and other stable setups.

Where Should I Look To Buy SFP Modules?

At CablesAndKits.com, we sell all these modules at much lower prices than our competitors. We offer a variety of options, including new, factory-sealed modules, as well as refurbished modules for those on a tight budget. All our products come with a 100% guarantee. We provide both our CablesAndKits Modules and Cisco modules for each variant. Whether you're looking for cost-effective SFP-10G-LR modules, reliable SFP modules for enterprise, or affordable QSFP-40G-SR4 modules, we have you covered.

Final Thoughts

Selecting the right SFP and QSFP modules is essential for building a reliable and efficient network. By understanding the differences between S-Class and Non-S-Class modules, as well as the specific roles of SR, LR, ER, ZR, LR4, and SR4 modules, you can make informed decisions that optimize your network’s performance and scalability. For the best prices and a wide selection of high-quality modules, visit CablesAndKits.com.
