Fiber Optic Connectors: Detailed Guide to Types and Uses
Fiber optic connectors might be small, but they play a big role in ensuring fast and reliable data transfers. They link fiber optic cables, allowing data to move quickly with minimal loss.
In this guide, you'll explore various types of fiber optic cable connectors, each with unique features and best uses. Knowing what each connector does is essential, but it’s also important to match them with the right equipment, fiber type, and performance needs. We’ll also provide practical advice on installation, maintenance, and troubleshooting to help keep your system running smoothly.
What are Fiber Optic Connectors?
Optical fiber connectors are essential for networking. They link optical fibers and ensure data travels efficiently through light signals. If these connectors don’t work properly, your network's reliability and performance can suffer.
So, why are these connectors so important? They help keep signal loss low and data transfer speeds high. With many different types of connectors, such as SC, LC, and ST, each is suitable for specific applications and environments. Choosing the right fiber optic connector ensures smooth and efficient network operations.
Types of Fiber Optic Connectors: Understanding the Differences
Choosing the right types of fiber optic connectors is important. It affects how well your network connects and performs. Here are the most common types of fiber optic cable connectors, types, applications and how to choose them.
1. SC Connector:
The SC connector, also known as the Subscriber Connector or Square Connector, is a common choice for data communication. It uses a push-pull locking mechanism that makes connections quick and secure. This connector features a 2.5 mm ferrule and a push-pull latching mechanism. This design makes connections both secure and easy to manage.
Known for its durability and straightforward use, the SC connector quickly gained popularity in network environments. Originally adopted for Gigabit Ethernet networks, it earned a reputation for reliable performance. These connectors are now commonly seen in telecom and data center settings.
Despite its advantages, the SC connector is gradually being replaced by smaller, more compact options. When you see visuals of SC connectors, they typically highlight their distinctive square shape and latch mechanism.
Advantages of SC Connectors
- Ease of Use: The push-pull design of the SC connector enables easy installation and removal without the need for specialized tools.
- Reliability: With its precise alignment mechanism, the SC connector offers stable and consistent performance over time.
- High Performance: These connectors are known for their low insertion loss and high return loss characteristics, making them ideal for demanding optical networking environments.
2. LC Connector
The LC connector has become a staple in data communication networks for its ability to save space and deliver high performance. It is often used in modern optical devices and high-density patch panels. The LC connector has a 1.25mm ferrule that aligns fibers accurately, ensuring low signal loss and high performance. Its design, including the small size and clip feature, makes it ideal for packed installations.
Common applications of the LC Connector include:
- Telecommunications networks
- Data centers
- Local area networks (LANs)
Advantages of the LC Connector:
- Compact size
- Low insertion loss
- High-performance capabilities
3. ST Connector
The ST (Straight Tip) connector, created by AT&T, is known for its bayonet mount and 2.5 mm ferrule. Its cylindrical shape holds the fiber securely and is designed for quick and easy connections. This durable connector works well for both short and long-distance applications, like campus networks and enterprise systems. Despite its reliability, the ST connector is now less common in new installations because newer types are preferred. Visuals often show its cylindrical shape and bayonet coupling mechanism.
Common Applications:
- Used in telecommunications networks
- Ideal for LANs (local area networks)
- Often found in medical imaging equipment
Advantages:
- Reliability: Ensures secure connections without signal loss.
- Durable: Can withstand repeated connections/disconnections.
- Easy Installation: Simple push-pull mechanism for quick setup.
4. MPO/MTP Connector
The Multi-Fiber Push-On and Multi-Fiber Termination Push-On (MPO and MTP) connectors revolutionize fiber optic connectivity by accommodating multiple fibers within a single connection. These connectors can support configurations of 12, 24, or even 36 fibers, making them indispensable in high-density applications where space is at a premium. Notably, the MTP connector is an enhanced version of the MPO, offering superior performance and accuracy.
Common Applications of MPO/MTP Connector:
- Data Centers: Essential for efficient, high-speed data transmission.
- Telecommunications Networks: Key for seamless long-distance communication.
- High-Density Environments: Ideal where space is at a premium.
- High-Throughput Scenarios: Facilitates quick and robust deployments.
Advantages of MPO/MTP Connector:
- High Fiber Count: Handles 12, 24, or 36 fibers.
- Enhanced Performance: MTP offers superior accuracy.
- Compact Design: Saves space in equipment racks.
- Efficient Installation: Connects multiple fibers quickly.
- Fast Setup: Push-on mechanism speeds up deployment.
- Reliable Connectivity: Ensures robust data transmission.
Understanding Pairs of Fiber Optic Connectors
When it comes to selecting the right fiber optic connectors, it’s essential to take a close look at the pairs highlighted below.

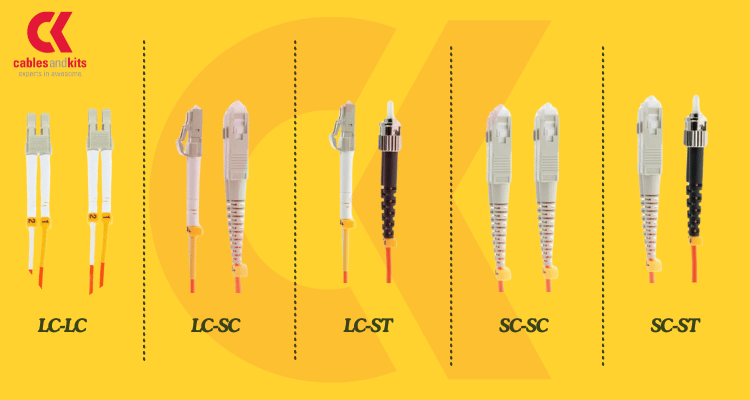

Fiber optic connectors difference between LC-LC, LC-SC, LC-ST, SC-SC and SC-ST

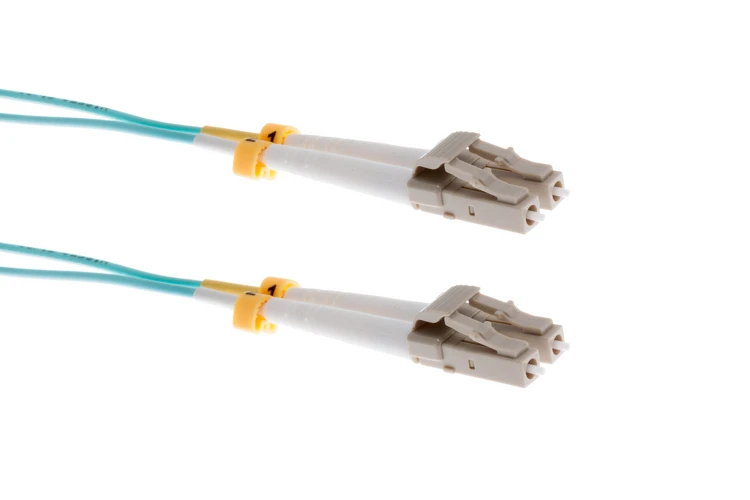

LC-LC Fiber Connector:
LC-LC connectors, known for their small size, work well in dense network setups. A cable with LC connectors on both ends delivers a compact, high-speed connection. This setup fits perfectly where space is tight and performance is key.
LC-SC Fiber Connector:
SC-LC fiber optic cable features an LC connector on one end and an SC connector on the other. The LC connector’s small size makes it suitable for high-density setups. The SC connector, with its push-pull locking system, provides a secure connection. This mix allows for flexible connections between different types of gear.
LC-ST Fiber Connector:
A ST-LC fiber optical cable combines an LC connector with an ST connector. The LC connector fits well in dense configurations. The ST connector, known for its round, bayonet-style coupling, is both reliable and easy to use. This makes the LC-ST setup a versatile choice for various environments.
SC-SC Fiber Connector:
SC-SC connectors are larger and use a push-pull design. A cable with SC connectors on both ends ensures stable and reliable connections. It’s ideal for network environments like data centers where strong connections are essential.
SC-ST Fiber Connector:
Featuring an SC connector on one end and an ST connector on the other, ST-SC fiber cable connector combines secure push-pull and bayonet-style connections. This setup offers flexibility and reliable performance across different network systems.
Polish of Fiber Optic Connectors: APC, UPC, UPC/APC

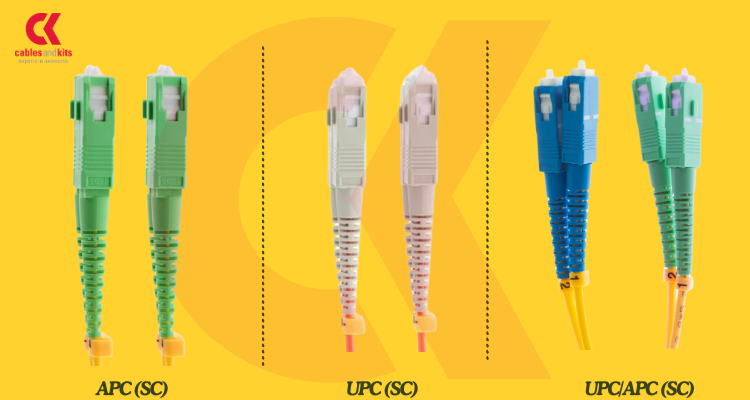

Image comparing APC (green, angled endface), UPC (grey, flat endface), and UPC/APC (combined endfaces) fiber optic connectors
-
APC (Angled Physical Contact):
APC fiber connectors have a polished surface at an 8-degree angle. This angled design minimizes back reflection or return loss by redirecting the reflected light out of the fiber core.
-
UPC (Ultra Physical Contact)
UPC connector fiber feature a flat polish on the end face, allowing for precise alignment between fibers to reduce insertion loss. While it offers improved performance compared to standard connectors, UPC does not address back reflection as effectively as APC.
-
UPC/APC (Ultra Physical Contact/Angled Physical Contact):
UPC/APC fiber connectors combine the benefits of both APC and UPC designs. The dual polish angles provide low insertion loss and minimal return loss for high-quality signal transmission in demanding applications where precision is key.
Modes of Fiber Optic Connectors: Single Mode vs Multimode
1. Single Mode:
- Uses single laser light for transmission
- Designed for longer distances
- Thinner core size (around 9 microns)
- Offers higher bandwidth but at a higher cost
- Ideal for telecommunication networks and long-haul applications
2. Multimode:
- Uses multiple LED light source for transmission
- Suited for shorter distances
- Larger core size (typically 50 or 62.5 microns)
- Lower bandwidth compared to single mode
- Commonly used in data centers, LANs, and short-distance connections
Transmissions of Fiber Optic Connectors: Simplex vs Duplex
Choosing the right fiber optic connector makes a big difference in data transmission. Simplex and duplex connectors each have their roles and suit different needs. Understanding these differences is essential for making the best choice.
-
Simplex Connectors
Simplex connectors transmit data in one direction only. They work well when you need to send data from one point to another without any need for feedback or return messages. This one-way communication is straightforward and reliable, making it ideal for simple setups where only one-way flow matters.
-
Duplex Connectors
Unlike simplex, duplex connectors support two-way data transmission. They allow information to move back and forth between two points simultaneously. The ability to send and receive data at the same time makes duplex connectors perfect for real-time or ongoing communication needs. If your setup requires simultaneous sending and receiving, duplex connectors are what you should choose.
Deciding between simplex and duplex connectors depends on your situation. For a simple one-way data transfer, simplex connectors are sufficient. However, if you need to handle two-way communication, duplex connectors are the better option.
Core and Cladding of Fiber Optic Connectors
To grasp fiber optic connectors, you need to know about their core and cladding sizes. Here’s a simple guide:
-
50/125 Connector
50/125 optic fiber connector has a core that's 50 microns wide and cladding at 125 microns. It's great for short distances. You’ll typically find it in LANs where high-speed data transfer is crucial.
-
62.5/125 Connector
62.5/125 fiber optic connector has a core of 62.5 microns and the same cladding diameter as the 50/125. It’s versatile. Whether you need it for short or long distances, it fits various network setups.
-
9/125 Connector
The core size here is just 9 microns. It’s built for long-distance use, making it ideal for covering large areas with little signal loss. Common in telecom and high-speed data situations.
By understanding these core and cladding sizes, you can pick the right fiber optic connector for your needs.
Factors to Consider When Choosing Fiber Connectors

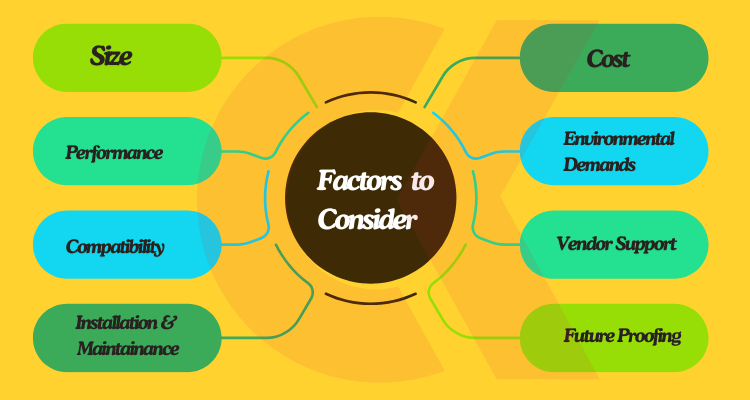

Image picturing factors to consider when choosing fiber optic connectors
-
Size of Connectors:
Opt for LC optic connectors if space is limited, they're compact and ideal for high-density environments. SC fiber connectors, though larger, offer robustness in less constrained setups.
-
Performance Prowess:
Both LC and SC fiber connectors excel in signal integrity and transmission speed. LC optic connectors are known for stability, while SC connectors ensure reliable connections in diverse settings.
-
Compatibility Counts:
Evaluate how well connectors integrate with your existing network equipment. LC connectors are prevalent in modern data centers, while SC fiber connectors offer broader compatibility but may require more space.
-
Ease of Installation and Maintenance:
LC connectors are easier to handle due to their smaller size, whereas SC fiber connectors may require more space but offer durability.
-
Future Proofing:
Anticipate future network needs. Fiber LC connectors support higher data rates and are favored for scalable networks, whereas SC fiber connectors provide reliable performance across various applications.
-
Cost Considerations:
LC connectors may have a higher upfront cost but can reduce operational expenses with easier maintenance and scalability.
-
Environmental Demands:
Assess environmental factors such as temperature and humidity resistance. Choose connectors that meet the durability requirements of your operational environment.
-
Vendor Support:
Evaluate vendor reliability and support services. Opt for connectors from reputable suppliers known for quality products and responsive customer service.
Tip: Choosing the right fiber connector involves balancing these factors to ensure optimal performance and compatibility with your network infrastructure.
Optimizing Fiber Connectors: Best Practices for Installation and Maintenance
-
Preparation is Key
Begin by meticulously cleaning both the connector and cable end faces using a lint-free wipe soaked in an alcohol solution. This initial step ensures optimal performance by eliminating any dirt or debris that could cause signal loss.
-
Handle with Care
Avoid excessive bending or twisting of the fiber cable when handling all types of fiber connectors. These delicate fibers require careful treatment to prevent damage. Utilize appropriate tools like cable grips and strain relief brackets to provide support during installation, safeguarding against potential mishaps.
-
Regular Maintenance Matters
Routinely inspect your fiber connectors for any visible signs of wear or contamination. Promptly replace any damaged connectors to maintain peak performance and prevent signal degradation within your network.
Following these best practices, such as careful cleaning, careful handling, and regular inspections, will maintain a strong connection to your network infrastructure. Ongoing maintenance and attention to detail ensures that your fiber connectors remain reliable, extend their lifespan and guarantee uninterrupted performance for your business operations.
Final Thoughts
Before you decide on any fiber connector type, it's crucial to ensure it fits seamlessly with your current network setup. Factors such as cable type, whether it is single mode or multimode, simplex or duplex, connector pairs should all be checked to avoid any compatibility issues down the road.
Still feeling uncertain about which optical fiber connector type suits your needs best? It's wise to consult with our industry professionals today. Their expertise can offer valuable insights into the ideal choices based on your specific networking demands and requirements.
