What is the difference between OS2, OM1, OM2, OM3, OM4, and OM5?

When it comes to fiber optic networks, there are a lot of options in how a network is designed. Ultimately, the demands of the network will determine which cable is best for any given job, but you need to have a clear understanding of the different fiber cables in order to make that decision. While the complete list of design differences could fill several books, you can understand the key variations in design in a few minutes. This quick guide will highlight the characteristics of OS2, OM1, OM2, OM3, OM4, and OM5 fiber cables.

OS vs OM Fiber

The first difference to understand is the one that exists between OS and OM cables. The briefest explanation is that OS cables are all singlemode fiber, and OM cables are multimode fiber. If that provides enough clarity, feel free to skip to the next section.

For those who like more details, there are a few key design differences between the cable types. These differences mostly scale to the single- or multi-mode functionality. OS cables have much thinner cores than their OM counterparts. An OS cable, like OS2, will usually have a 9-micron core while OM cables can be over 100 microns. Additionally, OM cables are designed to work across shorter distances and with less-expensive transmission parts.

OM Fiber Cables

If multimode fiber is the right build for a network, there are still important decisions to make. For the most part, the cables come in five separate designs (named OM1, OM2, OM3, OM4, and OM5 respectively). OM1 might be the older, slower guy on the market, but it is no less common in modern applications. It utilizes a 62.5/125-micron core and is known for its cost efficiency for short runs. The other three designs all work with a 50/125-micron core.

The next major difference is in transmission. OM1 and OM2 both use LED transmitters. These are great for their low cost, but the LED transmitters limit bandwidth. OM1 and OM2 cables hit top speeds of around 1Gbps. OM3, OM4, and OM5 cables utilize laser-optimized multimode (LOMMF) transmission. This is more expensive, but it enables higher bandwidths, and these cables can get speeds up to 10Gbps (OM3), to 40Gbps (OM4), and up to 100Gbps (OM5).

Other, subtler differences can be found among these varying cables, but in terms of application, this is the bulk of the story.

OS Fiber Cables

As for OS cables, they come in OS1 or OS2 builds. OS1 is a bit antiquated. It is designed for distances less than 2km, and it hits a top transmission speed of 10Gbps. For jobs in that range, there are usually OM designs that are more cost-effective. OS2 is the standard for long-range networking. The cables can carry signals up to 200 km, and they can achieve transmission rates in excess of 10Gbps.

The purpose of OS2 fiber cabling is to do work that is best suited by singlemode fiber optics. It’s the easy go-to for long-range, high-speed work.

We like to keep things simpe and straight-forward. In almost every case, the best cable will be the one that meets your distance and speed needs at the lowest possible cost.

Still not sure which fiber cable is right for your data center or project? Chat with one of our Fiber Cable experts and they can help you decide and point you in the right direction.

Be sure to check out our new Corning LSZH Fiber cables today.

Additional Learning Center Resources

Recommended By Our Experts
1m LC-LC OM3 Premium Multimode Duplex 50/125 Fiber Optic Cable

1m LC-LC OM3 Premium Multimode Duplex 50/125 Fiber Optic Cable

$23.09

1m LC-LC OS2 Premium Singlemode Uniboot 9/125 Fiber Optic Cable

1m LC-LC OS2 Premium Singlemode Uniboot 9/125 Fiber Optic Cable

$20.99

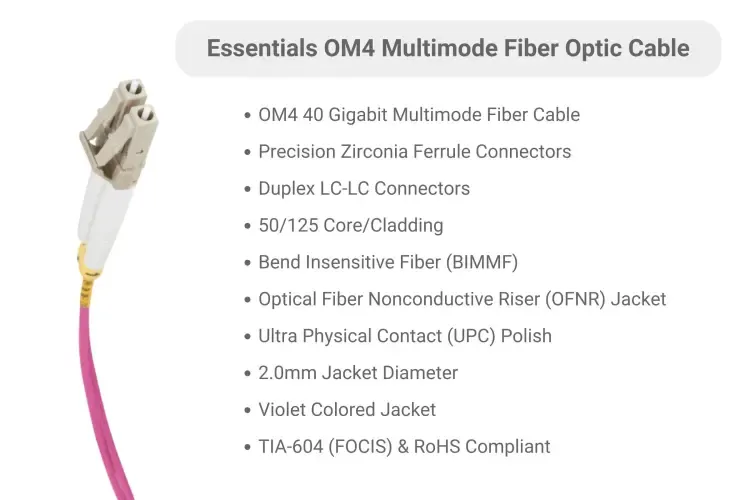

1M LC-LC OM4 40G 50/125 Multimode Duplex Fiber Patch Cable, Violet
