Our premium fiber optic cables are unmatched in quality and reliability. Made with Corning® optical fiber glass cabling with Suncall® connectors, these cables are designed to run your network with the highest performance.
What sets our fiber cables apart from the competition:
Corning® Optical FiberAll of our premium cables are made with Corning ultra-pure glass fibers which ensure the highest degree of strength and purity to give you low attenuation and low signal loss for your whole network. Corning leads the industry in product quality and innovation, and we have brought these strengths into our premium cables.
LSZH Jacket MaterialThe Low Smoke Zero Halogen (LSZH) jacket material provides you with the safest cabling environment by reducing the amount of toxic and corrosive gas that could be emitted when exposed to extreme heat or during combustion.
Ultra Physical Contact (UPC) PolishWith the Ultra Physical Contact Connectors, these fiber cables will give lower Optical Return Loss (ORL) and Back Reflection than standard PC connectors giving you more reliable signals for data, digital, and telephony applications.
Bend Insensitive FiberOur premium fiber cables were created with those challenging fiber runs and environments in mind. Bend insensitive fiber (BIF) will transmit light with minimal loss even with bending and twisting beyond the normal bend radius of basic fiber cables. The ring of refraction material around the glass reflects light that is lost back into the core.
Simple Polarity Reversible FunctionThese cables allow you to quickly reverse polarity while in the field without the use of any special tools to ensure the correct fiber mapping for optimal data transmission, with fewer cables, in your high-speed, high-density data center space.
2.0mm Diameter Unibody CableWith a smaller fiber cable footprint, these cables will allow you to optimize your high-density data center environment for better airflow, cooling, and cable management.
Premium Boot Types

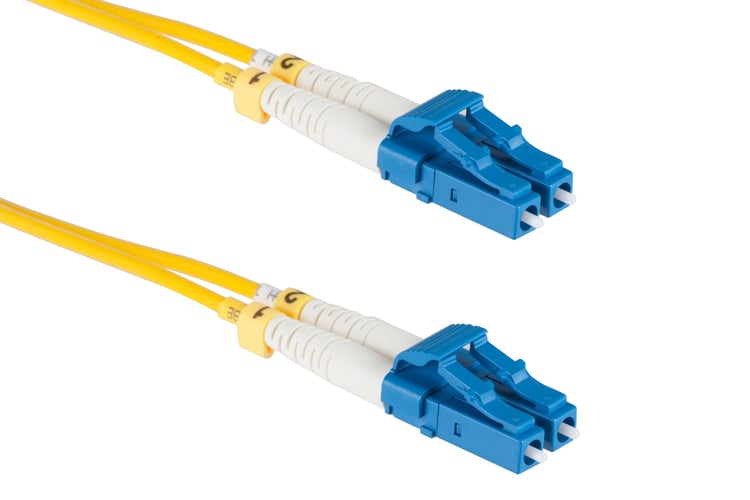

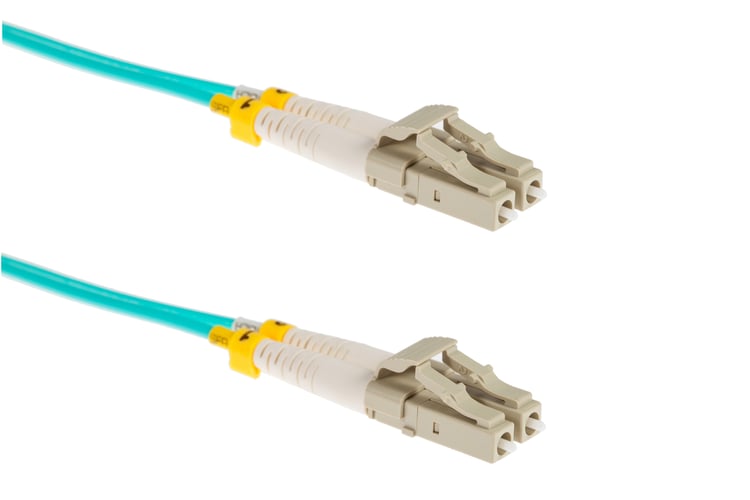

The standard "short boot" and connectors on our premium fiber cables provide you with the normal fiber cable experience with a high quality, unibody connector with the ability to reverse polarity when needed. These connectors make it easy to connect and disconnect quickly when needed. OS2 StandardOM3 StandardOM4 Standard

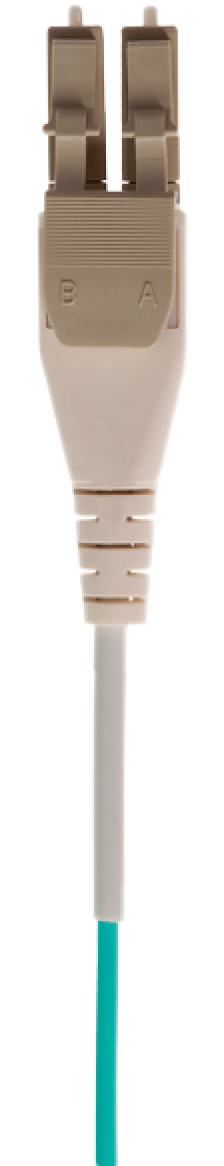

High-density uniboot / unibody fiber optic cables have two fibers carried through a single jacket with a lower profile boot, reducing the size and surface area of the cables when compared to standard fiber optic cables, but continuing to provide the reliable performance from industry standard connectors. Uniboot fiber cables reduce cable management requirements and allow for better airflow. The smaller "short boot" connector on our premium fiber cables makes it easy to reverse the polarity of the cables when needed. OS2 UnibootOM3 UnibootOM4 Uniboot

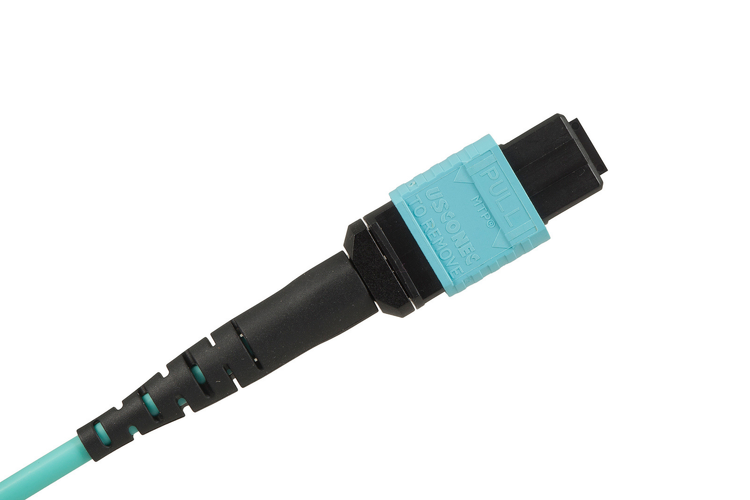

Uniboot Push-Pull Tab
High-density push-pull tab boots and connectors on these fiber cables have a special tab that will allow easy insertion and removal of the connector without the need to access the boot or connector. The slim, low profile uniboot design allows this high-density installation cabling to be used with minimal cable management and save space in your network setup. These fiber cables have the same type of short boot connector as the regular uniboot/unibody cables, but with the push-pull tab, still allowing you to reverse the polarity when needed. OS2 Push-PullOM3 Push-PullOM4 Push-Pull
Still have questions? Let us know.
