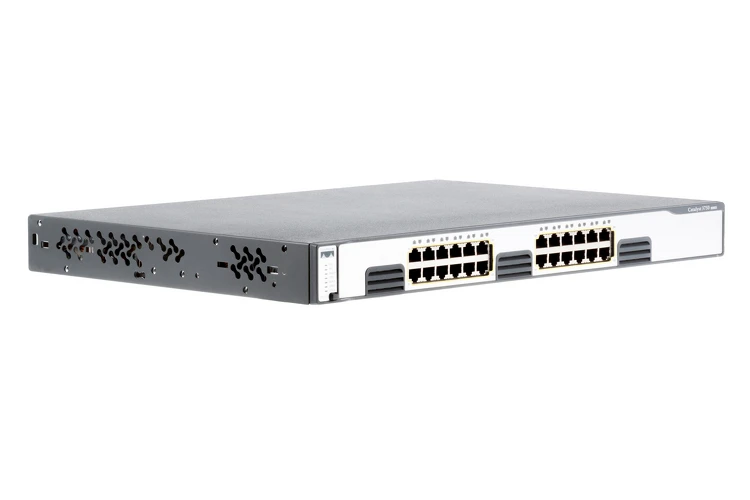

Cisco 3750G Series 24 Port Gigabit Switch, WS-C3750G-24T-S
| Port Quantity | 24 | Series | Catalyst 3750G |
| Rack Units | 1RU | Type | - |
| Frequency Range | - | Gain | - |
| Software | Cisco IOS IP Base | OSI Layer | L3 |
| Stacking | Data Only (StackWise) | Deployment Pack | No |
| Hot Swappable Modules | No | Hot Swappable Fans | No |
| Hot Swappable Power Supply | No | Energy Efficient | No |
| Port Speed | 10/100/1000 | Ram | 128 MB |
| Display Condition | Grade B | Flash | 16MB |
| Ports | 24 | Min Operating Temp | 32°F |
| Max Operating Temp | 113°F | Jumbo Frame Support | 9016 bytes |
| Predicted Reliability | - | Mac Addresses | 12K |
| Min Storage Temp | -13ºF | Max Storage Temp | 158ºF |
| Operating Humidity | 10 to 95% (noncondensing) | Storage Humidity | 10 to 95% (non-condensing) |
| Ac Input Voltage | 100 to 240 VAC | Fans | Internal |
| Stacking Bandwidth | 32 Gbps | Available PoE Power | No PoE |
| Power Specifications | 100-240VAC | Uplink Interfaces | - |
| Brand | Cisco | Total Multi-Gigabit Ethernet Ports | None |
Cisco Gigabit Switch | 3750G Series | 24 Port | WS-C3750G-24T-S
Grade B Switches are fully tested, fully functional, and perform to manufacturer specifications. They may show cosmetic defects or imperfections such as scratches, scuffs, dents, or discoloration, but these do not affect performance or reliability.
The Cisco Catalyst 3750 Series of switches are excellent options for midsized and large offices alike. These 3750G switches offer (24) 10/100/1000 ports. In addition, they include Cisco StackWise technology and allow users to stack up to 9 individual switches into one single logical unit.
The Cisco Catalyst 3750 Series Switches are a premier line of enterprise-class, stackable, multilayer switches that provide high availability, security, and quality of service (QoS) to enhance the operation of the network. Their innovative unified stack architecture sets the standard in stack management, redundancy, and failover.
With a range of Fast Ethernet, Gigabit Ethernet, and an integrated wireless LAN controller configurations, the Cisco Catalyst 3750 Series can serve as both a powerful access layer switch for medium enterprise wiring closets and as a backbone switch for mid-sized networks. Customers can deploy network-wide intelligent services, such as advanced QoS, rate-limiting, Cisco Systems security access control lists (ACLs) at L2, L3, and L4, multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching. Embedded in the Cisco Catalyst 3750 Series is the switch device manager which allows users to configure and troubleshoot the Cisco Catalyst 3750 Switch using a standard Web browser.
Features:
- Model # - WS-C3750G-24T-S
- Ports - (24) x 10/100/1000
- Form Factor - Desktop, Rack Mountable
- Rack Units - 1RU
- Software - IP Base th>Subtype - Gigabit Ethernet
- Flash Memory - 32 MB
- Network Module Slots - 0
- Total VLANs - 1,005
- Fans - Internal
- Per Port Status LEDs - Link integrity, disabled, activity, speed, and full-duplex indications
- System Status LEDs - System, RPS, and bandwidth-utilization indications
- Manufacturer - Cisco
- Power Over Ethernet (PoE) - No PoE
- RAM - 128 MB
- Jumbo Frame Support - 9,018 byte
- Max Units per Stack - 9
- MAC Address Table Size - 12,000
- Stackable - Yes
- Forwarding Rate - 38.7 mpps
- Product Line - Cisco Catalyst
- Dimensions - 1.73" x 17.5" x 14.9"
- Weight - 13.5 lbs
- MTBF - 209,170 hours
- Authentication Method - Kerberos, RADIUS, Secure Shell (SSH), TACACS+
- Routing Protocol - RIPv1, RIPv2, RIPng, HSRP, static IP routing
Environmental Parameters:
- Min Operating Temperature - 23°F
- Max Operating Temperature - 113°F
- Operating Humidity - 10 to 85% noncondensing
- Min Storage Temperature - -13°F
- Max Storage Temperature - 158°F
- Storage Humidity - 10 to 85% noncondensing
Compliant Standards: IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS classification, IEEE 802.1Q VLAN, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-X
Standard Features:
- Dynamic Host Configuration Protocol (DHCP)
- Autonegotiation
- Dynamic Trunking Protocol (DTP)
- Port Aggeration Protocol (PAgP)
- Link Aggeration Protocol (LACP)
- Automatic Media-Department Interface Crossover (MDIX)
- Switching Database Manager
- Local Proxy Address Resolution Protocol (ARP)
- Multicast VLAN Registration (MVR)
- Unidirectional Link Detection Protocol (UDLD)
- VLAN1 Minimization
- Smart Multicast
- Internet Group Management Protocol (IGMP)
- Voice VLAN
- Cisco VLAN Trunking Protocol (VTP)
- Layer 2 Trace Route
- Trivial File Transfer Protocol (TFTP)
- Network Timing PRotocol (NTP)
- Private VLANs
- Access Control Lists (ACL's)
- Secure Shell (SSH) Protocol
- MAC Address Notification
- Bridge Protocol Data Unit (BPDU)
- IGMP Filtering
- Cross-Stack EtherChannel
- IEEE 801.1s/w Rapid Spanning Tree Protocol (RSTP)
- Cisco Hot Standby Router Protocol (HSRP)
- Cross-stack QoS
- 802.1p Class of Service
