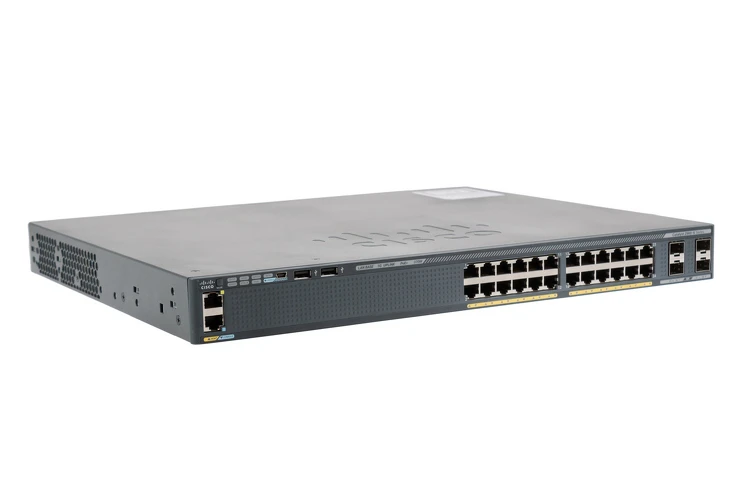

Cisco Catalyst 2960-X Series 24 Port 370W PoE+ Switch, WS-C2960X-24PS-L, Refurbished, Original
click here to chat with a CK representative.
Cisco Catalyst 2960-X Series | 24 Port | PoE+ | 4 SFP | LAN Base | Stackable | 370W | Managed | WS-C2960X-24PS-L
When you need enterprise-class access without the high price, the Cisco 2960-X series of fixed-configuration, stackable Gigabit Ethernet switches is a great solution. This model, WS-C2960X-24PS-L, is simple to configure and monitor, and it's made for easy troubleshooting. With 370W of PoE power, it offers 12 PoE+ ports up to 30W or 24 PoE ports up to 15.4W, with flexible power allocation. The WS-C2960X-24PS-L switch includes 24 Gigabit Ethernet ports (10/100/1000) and 4 SFP uplink interfaces.
With LAN Base IOS image software, this refurbished Cisco WS-C2960X-24PS-L switch is a great choice for small- to medium-size businesses. This switch comes with a wide variety of standard features; it also offers FlexStack-Plus and FlexStack-Extended capability. In addition, switches in the Catalyst 2960-X Series are supported by a range of Cisco network management solutions. When you buy refurbished switches and other networking equipment from CablesAndKits, you get the performance you'd expect from a new product without the high prices.
- Cost-Effective Enterprise-Class Switching - The Cisco Catalyst 2960X Series of switches were designed to allow for a lower total cost of ownership. These switches provide enterprise-class access, but without the expensive price tag that normally accompanies enterprise-level equipment. Perfect for campus and branch applications.
- Enhanced Visibility & Reliability - These switches provide for increased visibility with Full (Flexible) NetFlow and NetFlow Lite as well as the Domain Name System as an Authoritative Source (DNA-AS) feature. They also are extremely reliable and resilient with many features built-in to prevent outages such as optional dual field-replaceable power suppliesm Cross-stack EtherChannel, Flex Links, and more.
- Stackable with Cisco FlexStack-Plus and FlexStack-Extended - Cisco 2960X series switches feature FlexStack technology. The hot-swappable Cisco FlexStack-Plus module can be added to any 2960X switch with a FlexStack-Plus slot and allows users to stack up to 8 Cisco Catalyst 2960X switches.
- Increased Security for Network Protection - The Cisco Catalyst 2960X series of switches provide a range of security features that allow users to limit access to their networks and to mitigate threats. These security features include Mac-based VLAN assignment, Cisco TrustSec, Comprehensive 802.1X, IPv6 First-Hop Security, Cisco Trust Anchor Technology, Cisco Threat Defense, and more.
- Intelligent PoE+ and Perpetual PoE - Select models support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port). The PoE power allocation is dynamic and power mapping scales up to a maximum of 740W of PoE+ power. In addition, some models support Perpetual PoE. With this feature, the PoE+ power is maintained during a switch reload which allows users to avoid disruption.
|Ports||(24) 10/100/1000 + (4) SFP|
|Port Speed||10/100/1000 Gigabit Ethernet|
|Forwarding Bandwidth||108 Gbps Forwarding Bandwidth|
|Switching Bandwidth||216 Gbps Switching Bandwidth|
|Uplink Ports||4 Dual Purpose Uplink Ports (10/100/1000 or SFP)|
|MAC Address Table Size||16k (default)|
|PoE Wattage||Up to 370W total PoE capacity|
|DRAM||64MB DRAM (standard)|
|VLAN IDs available||4096 VLANs|
|Max Active VLANs||1023|
|Max Stacking Units||8|
|Software||LAN Base Image|
|Predicted Reliability||324,380 hrs MTBF (Mean Time Before Fail)|
|Forwarding Rate: 64-Byte L3 Packets||71.4 Mpps|
- Cisco AutoSecure
- Dynamic Host Configuration Protocol (DHCP)
- Stacking Master Configuration Management
- Dynamic Trunking Protocol (DTP)
- Port Aggeration Protocol (PAgP)
- Link Aggeration Protocol (LACP)
- Automatic Media-Department Interface Crossover (MDIX)
- Switching Database Manager
- Local Proxy Address Resolution Protocol (ARP)
- Multicast VLAN Registration (MVR)
- Unidirectional Link Detection Protocol (UDLD)
- VLAN1 Minimization
- Smart Multicast, With Cisco FlexStack-Plus Technology
- Internet Group Management Protocol (IGMP)
- Voice VLAN
- Cisco VLAN Trunking Protocol (VRP)
- Layer 2 Trace Route
- Trivial File Transfer Protocol (TFTP)
- Network Timing PRotocol (NTP)
- Mac-based VLAN Enabling
- Cisco TRUSTSec
- Comprehensive 802.1X
- IPv6 First-Hop Security
- Device Sensor and Device Classifier
- Private VLANs
- Access Control Lists (ACL's)
- Secure Shell (SSH) Protocol
- MAC Address Notification
- Bridge Protocol Data Unit (BPDU)
- IGMP Filtering
- Cross-Stack EtherChannel
- IEEE 801.1s/w Rapid Spanning Tree Protocol (RSTP)
- Power Redundancy
- Cisco Hot Standby Router Protocol (HSRP)
- Coss-stack QoS
- Rating Limiting
- 801.1p Class of Service
- GLC-GE-100FX (NIB) - 100 Mbps
- GLC-GE-100FX (Refurbished) - 100 Mbps
- GLC-GE-100FX (Compatible) - 100 Mbps
- GLC-T (NIB) - 10/100/1000 Mbps
- GLC-T (Refurbished) - 10/100/1000 Mbps
- GLC-T (Compatible) - 10/100/1000 Mbps
- GLC-TE (NIB) 10/100/1000 Mbps
- GLC-TE (Compatible) 10/100/1000 Mbps
- GLC-BX-D (Compatible) 1 Gbps
- GLC-BX-U (Compatible) 1 Gbps
- GLC-EX-SMD (Compatible) 1 Gbps
- GLC-LH-SMD (NIB) 1 Gbps
- GLC-LH-SMD (Refurbished) 1 Gbps
- GLC-LH-SMD (Compatible) 1 Gbps
- GLC-SX-MMD (NIB) 1 Gbps
- GLC-SX-MMD (Refurbished) 1 Gbps
- GLC-SX-MMD (Compatible) 1 Gbps
- CWDM-SFP-XXXX (Compatible) 1 Gbps
- C2960X-STACK - FlexStack-Plus hot-swappable stacking module
- C2960X-FIBER-STK - FlexStack-Extended Fiber stacking module
- C2960X-HYBRID-STK - FlexStack-Extended Hybrid module, with one copper and one fiber port
- CAB-STK-E-0.5M (NIB) - Stacking Cable 0.5M Length
- CAB-STK-E-0.5M (Refurbished) - Stacking Cable 0.5M Length
- CAB-STK-E-0.5M (Compatible) - Stacking Cable 0.5M Length
- CAB-STK-E-1M (NIB) - Stacking Cable 1M Length
- CAB-STK-1M (Refurbished) - Stacking Cable 1M Length
- CAB-STK-1M (Compatible) - Stacking Cable 1M Length
- CAB-CONSOLE-RJ45 - Console Cable with RJ45 Connector 6 Feet
- CAB-CONSOLE-USB - Console Cable with USB Type A and mini-B connectors 6 Feet
- PWR-CLP - Power Cable Restraining Clip
Redundant Power Supply Options:
- PWR-RPS2300 - Cisco Redundant Power System 2300 and blower, no power supply
- BLNK-RPS2300 - Spare bay insert for Cisco Redundant Power System 2300 for Cisco Catalyst 2960-X Series Switches
- CAB-RPS2300-E - Spare RPS 2300 cable for Cisco Catalyst 2960-X Series Switches
- BLWR-RPS2300 - Spare 45 CFM blower for RPS 2300
- C3K-PWR-750WAC - RPS 2300 750W AC power supply spare for Cisco Catalyst 2960-X Series
Power Cords (USA):
- CiscoWorks LAN Management Solution
- Cisco TrustSec
- Cisco Network Assistant
- Cisco Catalyst Smart Operations
- Borderless Networks
|What Is A Network Switch?|
|Basics of Network Switches|
|Product Info: Cisco 2960-X Series PoE+ Switch, WS-C2960X-24PS-L|
