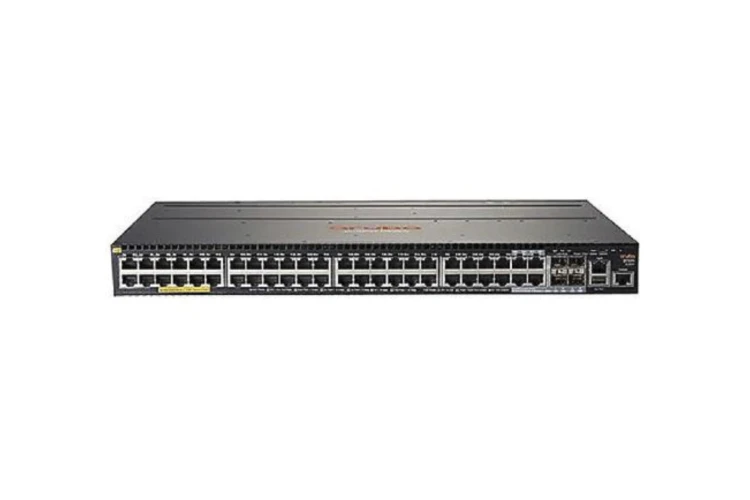

HPE Aruba 2930M Series Switch, 44 10/100/1000 PoE+ ports, 4 x Combo Gigabit SFP Uplinks, Refurbished, JL322A
| Condition | |||
|---|---|---|---|
| Factory Sealed | $4,999.99 | ||
| Refurbished | $2,999.99 | ||
click here to chat with a CK representative.
Back to topHP Aruba 2930M Series Switch | (44) 10/100/1000 Gigabit Ethernet Ports | 4 Combo PoE+ SFP Uplinks | PoE+ | Refurbished | Lifetime Warranty | JL322
The Aruba 2930M Series of switches was designed to deliver performance and a robust feature set for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 switches are high performance, stackable switches that support stacking for up to 10 switches. They support wire speeds up to 10GbE and up to 40Gbe uplinks. They are easy to deploy and manage using Aruba AirWave or Aruba Central with Zero Touch Provisioning.
Highlights:
- Layer 3 Switching with 10 chassis backplane stacking, static, RIP and access OSPF routing, Dynamic Segmentation, ACLs, SDN, and robust QoS
- Advanced security and network management via Aruba ClearPass Policy Manager, Aruba Airwave, and Aruba Central
- Modular 10GbE or 40GbE uplinks and HPE Smart Rate (IEEE 802.3bz) with up to 1440 PoE
- Models with 24 ports of HPE Smart Rate with IEEE 802.3bz
- Up to 60W PoE per port (IEEE 802.3bt Class 6) for high power devices
- Software defined ready with REST APIs and OpenFlow support
- Simple deployment with Zero Touch Provisioning
Tech Specs:
| Ports | (44) x 10/100/1000 PoE+ + (4) Combo 10/100/1000 PoE+ or 100/1000 Mbps |
|---|---|
| Switching Capacity | 176 Gbps |
| Switching Capacity w/Stacking | 276 Gbps |
| Stacking Throughput | 100 Gbps |
| Rack Units | 1RU |
| Subtype | Gigabit Ethernet |
| Fans | Internal |
| MAC Addresses | 32K |
| Dimensions | 1.73 x 17.42 x 12.77 in |
| Manufacturer | HP Aruba |
|---|---|
| Form Factor | Desktop, Rack Mountable |
| Power Over Ethernet (PoE) | PoE+ |
| Jumbo Frame Support | 9,220 bytes |
| Stackable | Yes |
| Forwarding Rate | 112 mpps |
| Available PoE | 1440W |
| Power Supply Slots | 2 |
| Weight | 10.25 lbs |
| Warranty | Lifetime |
2930M Compatible Transceivers:
- Aruba 100M SFP LC FX 2km MMF XCVR (J9054D)
- Aruba 1G SFP RJ45 T 100m Cat5e XCVR (J8177D)
- Aruba 1G SFP LC SX 500m MMF XCVR (J4858D)
- Aruba 1G SFP LC LX 10km SMF XCVR (J4859D)
- Aruba 1G SFP LC LH 70km SMF XCVR (J4860D)
- Aruba 10G SFP+ LC SR 300m MMF XCVR (J9150D)
- Aruba 10G SFP+ LC LR 10km SMF XCVR (J9151E)
- Aruba 10G SFP+ LC LRM 220m MMF XCVR (J9152D)
- Aruba 10G SFP+ LC ER 40km SMF XCVR (J9153D)
- Aruba 10G SFP+ to SFP+ 1m DAC Cable (J9281D)
- Aruba 10G SFP+ to SFP+ 3m DAC Cable (J9283D)
- Aruba 10G SFP+ to SFP+ 7m DAC Cable (J9285D)
- Aruba 40G QSFP+ LC BiDi 150m MMF XCVR (JL308A)
- HPE X142 40G QSFP+ MPO SR4 Transceiver (JH231A)
- HPE X142 40G QSFP+ LC LR4 SM Transceiver (JH232A)
- HPE X142 40G QSFP+ MPO eSR4 300M XCVR (JH233A)
- HPE X242 40G QSFP+ to QSFP+ 1m DAC Cable (JH234A)
- HPE X242 40G QSFP+ to QSFP+ 3m DAC Cable (JH235A)
- HPE X242 40G QSFP+ to QSFP+ 5m DAC Cable (JH236A)
- Aruba 2920/2930M 0.5M Stacking Cable (J9734A)
- Aruba 2920/2930M 1m Stacking Cable (J9735A)
- Aruba 2920/2930M 3m Stacking Cable (J9736A)
- HPE X410 1U Universal 4-post Rack Mounting Kit (J9583A)
- Aruba X414 1U Universal 4-post Rack Mounting Kit (J9583B)
- Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A)
- Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A)
- Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
Lifetime Warranty:
Purchase with confidence knowing that your Meraki device comes with a Lifetime Advance Replacement Warranty at no additional cost. We understand that in the event of a product malfunction or failure long downtimes are not an option. If you experience a malfunction or failure with a product at any point during your ownership we’ll ship a replacement the same day you report the issue. We’ll even expedite the shipment if requested, with an effort to provide a delivery date and time that meets your needs. That's Awesome.
Standard Features:
- Simple deployment with Zero-touch provisioning
- Traffic prioritization (IEEE 802.1p) for real-time traffic classification
- Simplified quality of service (QoS) configuration
- Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- Rate limiting establishes per-port ingress-enforced maximums for all traffic or for broadcast, multicast, or unknown destination traffic
- Access control lists (ACLs) accommodate IPv4/IPv6 port and VLAN-based ACLs (IPv6 ACL is supported only on Gigabit Ethernet and 48-port models.)
- 16K MAC address table provides access to many Layer 2 devices
- Secure Sockets Layer (SSL) encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
- IEEE 802.3az reduces power consumption during periods of low data activity on Gigabit Ethernet switches
Aruba 2930M Toolkit
Media:
| What Is A Network Switch? |
|
| Basics of Network Switches |
| Warranty: | Lifetime Warranty |
|---|---|
| Series: | Aruba 2930F0 |
| Model #: | JL322A |
| Rack Units: | 1RU |
