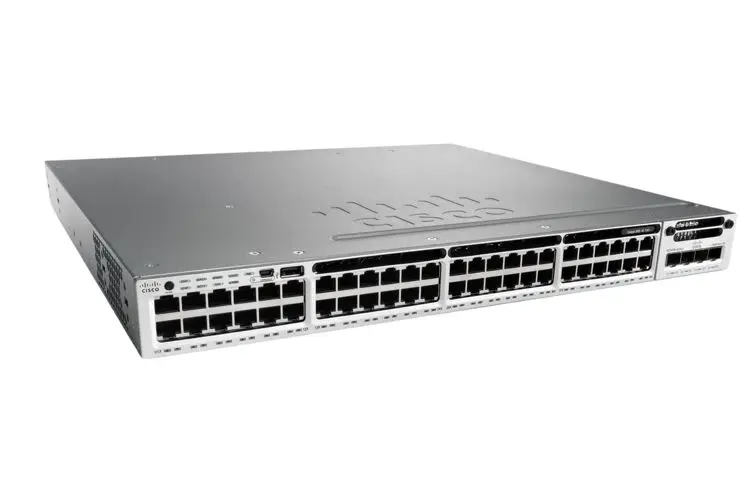

Cisco Catalyst 3850 Series Switch, 48 Port, PoE+, WS-C3850-48P-E, Refurbished, Original

Port Quantity | 48 | Series | Catalyst 3850 |
Rack Units | 1RU | Software | IOS-XE IP Services |
OSI Layer | L3 | Stacking | StackWise-480 and StackPower |
Deployment Pack | No | Hot Swappable Modules | Yes |
Hot Swappable Fans | Yes | Hot Swappable Power Supply | Supports Duals |
Energy Efficient | Yes | PoE Compatibility | PoE+ |
Port Speed | 10/100/1000 | Ram | 4 GB |
Model | WS-C3850-48P-E | Poe Budget | 435W |
Flash | 2 GB | Ports | 48 10/100/1000 PoE+ |
Min Operating Temp | 23° F | Max Operating Temp | 113°F |
Switching Bandwidth | 176 Gbps | Jumbo Frame Support | 9,198 byte |
Predicted Reliability | 241,050 hours | Mac Addresses | 32K |
Vlan Ids | 4K | Min Storage Temp | -40°F |
Max Storage Temp | 158ºF | Operating Humidity | 10 to 95% (noncondensing) |
Storage Humidity | 10 to 95% (non-condensing) | Ac Input Voltage | 100 to 240 VAC |
Fans | 3 Total, Redundant | Stacking Bandwidth | 480 Gbps |
Unicast Routes | - | Available PoE Power | 435W |
Forwarding Rate Based On 64-Byte Packets | 130.95 mpps | Power Specifications | 100-240VAC, 50-60 Hz, 10-5A |
Operating Temp | 23°F to 113°F | Storage Temp | -40 to 158°F (-40 to 70°C) |
Max Active VLANS | 4k | Switched Virtual Interfaces (SVI's) | 1000 |
Brand | Cisco | DRAM | 4 GB |
Total System Ports | 48 | Max Routed Ports | 208 |
Switching Capacity | 176 Gbps | Switching Capacity W/Stacking | - |
Product Depth | 17.7 in | Product Height | 1.75 in |
Number Of Ports _x000D_ That Support PoE | 48 | Number Of Ports That Support PoE | 48 |
Product Width | 17.5 in | Maintenance | None |
Rack Units Consumed | 1RU |
Cisco Catalyst 3850 Series | 48 Port | 10/100/1000 | PoE+ | IP Services | Stackable | 715WAC | WS-C3850-48P-E
Cisco next generation Catalyst WS-C3850-48P-E is an enterprise level switch, integrated with stackable 48 Ethernet POE+ ports with IP Services IOS image. The switch supports layer 3 capabilities and provides support for the features such as RPS Support, IP service-level agreements (SLAs), Advanced IP unicast routing protocols and Jumbo Frames.
The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed. The model includes 2 expansion slots, a network module slot, and a power redundant slot. It is compatible with the C3850-NM-4-1G, C3850-NM-2-10G and C3850-NM-4-10G uplinks network modules.
The Cisco Catalyst 3850 Series switches, support stacking of maximum 9 switches with same IOS feature set in same series at a stack bandwidth of 480Gbps. The power stack capacity is supported by Cisco Stack Power technology, providing power redundancy among the stacking members, ensuring continued operation even in the event of a power failure.
The model also supports multiple advanced security features such as DHCP snooping, Dynamic ARP inspection, Bidirectional data Support on a SPAN and uRPF, allowing administrators to monitor network traffic on specific switch ports or VLANs.
Features:
- 48 10/100/1000 Ethernet PoE+ ports
- Available PoE 435W.
- Cisco Stack Power technology
- Advanced security features
- IP Services IOS image feature set
Media:
