Model #: WS-C3750X-48T-S

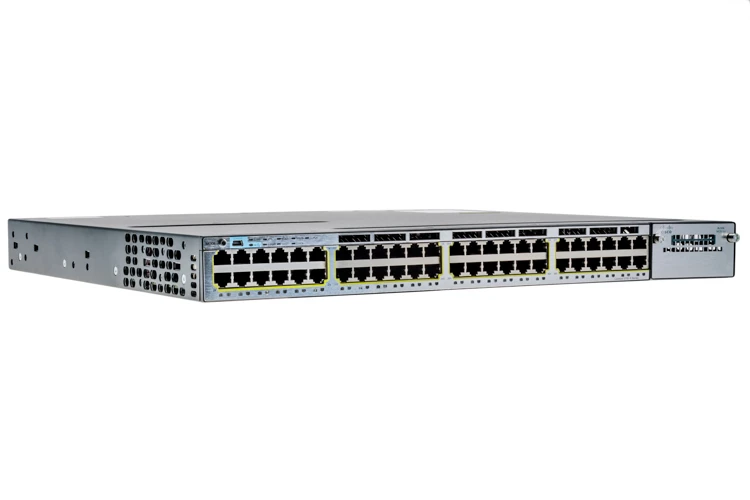

Cisco 3750X Series 48 Port Switch, WS-C3750X-48T-S

Cisco 3750X Series 48 Port Switch, WS-C3750X-48T-S
Maximize productivity with the Cisco Catalyst 3750X series WS-C3750X-48T-S. This layer 2 switch features (48) 10/100/1000 ports, IP Base Image, and stackable power & data.
Refurbished
WS-C3750X-24T-S $209.99
WS-C3750X-48T-S $209.99
6 in Stock - Ships Monday
Additional quantities available - Ships in 4 business day(s)
Lifetime Warranty 30 Day Satisfaction Late Shipping till 8pm
Sale quantities are limited to in-stock quantities. If you need more than what is in-stock,
click here to chat with a CK representative.
Qty
Description Back to top

Cisco Catalyst 3750-X Series | 48 Port | 10/100/1000 | IP Base | 350W | Stackable | WS-C3750X-48T-S

The Cisco WS-C3750X-48T-S switch offers many features to help you maximize productivity. This StackWise Plus and StackPower capable switch offers (48) 10/100/1000 ports, EnergyWise technology, and features 1 network module slot. The WS-C3750X-48T-S will enhance productivity and lower cost by giving users controlled, managed and highly available access to the applications and borderless experience that drives today's communication.

Quick Specs:

Model # WS-C3750X-48T-S
Form Factor Desktop, Rack Mountable
Ports (48) 10/100/1000 Ethernet
Rack Units 1RU
Software IP Base
Subtype Gigabit Ethernet
Flash Memory 64 MB
PoE Budget N/A
Expansion Slots 1
Total VLANs 1,005
Fans Dual redundant, modular
MTBF 171,846 hrs
EnergyWise Efficient Yes
Manufacturer Cisco
Power Over Ethernet (PoE) No
RAM 256 MB
Jumbo Frame Support 9,216 byte
MAC Addresses (default) 6,000
Stackable Yes
Forwarding Rate 101.2 mpps
Switching Fabric 160 Gbps
Default AC Power Supply 350W
Dimensions 1.75 x 17.5 x 18.0 in
Weight 16.3 lbs
Product Line Cisco Catalyst
Warranty Lifetime

Environmental Parameters:

Max Operating Temperature (up to 5,000 ft) 113° F
Relative Operating Humidity 5 to 95% noncondensing
Relative Storage Humidity 5 to 95% noncondensing
Min Operating Temperature (up to 10,000ft) 13° F
Min Storage Temperature -40° F
Max Storage Temperature 158° F


Weight & Dimensions:

Height 1.75"
Width 17.5"
Depth 18.0"
Weight 16.3 lbs


Standards:

IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3ad, IEEE 802.1ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS Prioritization, IEEE 802.1Q VLAN, IEEE 802.3 10BASE-T specification, IEEE 802.3u 100BASE-TX specification, IEEE 802.3ab 1000BASE-T specification, IEEE 802.3z 1000BASE-X specification

Standard Features:

  • AutoQoS (Automatic QoS)
  • DHCP (Dynamic Host Configuration Protocol)
  • DTP (Dynamic Trunking Protocol)
  • PAgP (Port Aggregation Protocol)
  • LACP (Link Aggregation Control Protocol
  • MDIX (Automatic media-dependent interface crossover)
  • UDLD (Unidirectional Link Detection Protocol)
  • SDM (Switching Database Manager)
  • ARP (Local Proxy Address Resolution Protocol
  • IGMP (Internet Group Management Control Protocol)
  • IGMP Filtering
  • MVR (Multicast VLAN Registration)
  • Storm Control (Per-Port Broadcast, Multicast and Unicast)
  • Voice VLAN
  • VLAN1 Minimization
  • VTP (VLAN Trunking Protocol)
  • Dynamic VLAN assignment
  • RSPAN Remote Switch Port Analyzer
  • Layer 2 Traceroute
  • TFTP (Trivial File Transfer Protocol)
  • NTP (Network Timing Protocol)
  • Equal-cost routing and load balancing (Layer 3)
  • EEM (Embedded Event Manager)
  • SLAs (IP Service-level Agreements)
  • Private VLAN's
  • Private VLAN Edge
  • Multidomain Authentication
  • Port Based ACL's
  • SSH (Secure Shell Protocol)
  • Kerberos
  • SNMPv3 (Simple Network Management Protocol Version 3)
  • SPAN (Switch Port Analyzer)
  • TACACS+ and Radius Authentication
  • MAC Address Notification
  • Multilevel security on console access
  • BPDU (Bridge Protocol Data Unit)
  • WTD (Weighted Tail Drop)
  • MACsec
  • CiscoWorks LAN Management Solution
  • Cisco TrustSec
  • Cisco Network Assistant
  • Cisco Catalyst Smart Operations
  • Cisco Service Module (Updated)
  • Borderless Networks
  • Routed Access Support
  • EnergyWise Efficient
  • StackWise Plus Capable (64Gbps throughput)
  • StackPower Capable
  • USB A port for storage and USB - B mini port for console connectivity
  • Out-of-Band Ethernet Management Port
  • Stackable up to 9 switches

Accessories:

Comaptible Network Modules

Power Cords

Power Supplies

Stack Cables

Media:

What Is A Network Switch?
Basics of Network Switches
Differences between Cisco 3650X and 3750X Switches

Cisco 3750 X switches help maximize productivity by giving IT managers the tools needed to support enterprise applications and advanced traffic management. With an array of network modules and redundant power supply options available, these switches can be customized and scaled to support nearly any application. Additional options for the 3750X include Gigabit and 10GE uplink ports, PoE+ and non-PoE support, redundant fans and an array of port densities allow the devices to be tailored and customized. Standard features include StackPower power sharing and StackWise Plus logical port aggregation (64Gbps of through put). Software upgrades include MACsec (Media Access Control Security), OSPF (Open Shortest Path First) routed access, multicast routing, IPv4 and IPv6 support and advanced QoS (Quality of Service). Hardware security, Cisco Energywise power management and type A and B USB interfaces are also standard. These feature rich, fixed configuration devices are the switch of choice for medium to enterprise business looking to maximize IT budgets while maintaining rich functionality and a borderless experience.

StackPower is a innovative power sharing and redundancy technology available on the Cisco 3750-X series of switches. As long as the switch is running LAN Base IOS 15.0(2) software version or later, you can interconnect up to (4) 3750X's in series using the CAB-SPWR-xxxCM cable. This configuration allows members of the stack to share in one of two power pooling topologies. The first, power sharing mode, aggregates then distributes the power among the stack. Power is dynamically allocated where its needed. The second, redundant mode, polls the stack, identifies the supply with the greatest wattage then reserves its use for failure. Power is then allocated to the stack from the remainder of the supplies. Once the reserved power supply is activated, the stack migrates to power sharing mode automatically. This technology eliminates the need for an external RPS unit and allows users to simply add another power supply for either redundancy or additional power to the pool.

StackWise Plus improves upon the established stacking architecture, StackWise. This technology allows up to 9 switches, or (432) 10/100/1000 ports, to be logically aggregated and managed using a single IP address, command line or telnet session. In addition, StackWise Plus is backwards compatible with older 3750 and 3750-E switches running standard StackWise while maintaining an increased throughput of 64Gbps.

PoE+ (or 802.at) builds on the legacy of Cisco's industry leading PoE (802.af) and Inline Power legacy. This new power delivery method allows 30W of power per port to PD's (Powered Devices) as opposed to 15.4W with standard PoE. This decreases deployment costs and TCO by eliminating the need for power runs to the PD instillation location. Automatic power negotiation manages power consumption and keeps wattage transmission from the switch at the appropriate levels eliminating electrical waste. In addition, PoE+ devices are backwards compatible with older PoE 802.3af, so you get the best of both worlds!

The 3560-X and 3750-X series of switches are also equipped with a network module slot that accepts one of four optional modules for up-linking. With a combination of copper, SFP and SFP+ support these modules continue to lower the TCO and add the flexibility and investment protection you need. This 3750X-48T-S has 48, 10/100/1000 Ethernet auto-sensing ports and (1) NM slot.

The will enhance productivity and lower cost by giving users controlled, managed and highly available access to the applications and borderless experience that drives today's communication.

Details Back to top
Warranty: Lifetime Warranty
Series: Catalyst 3750X
Rack Units: 1RU
PoE Compatibility: No PoE
OSI Layer: 3
Deployment Pack: No
Hot Swappable Modules: No
Hot Swappable Fans: No
Hot Swappable Power Supply: No
Stacking: Data and Power (StackWise and StackPower)
Energy Efficient: No
Port Speed: Gigabit Ethernet
