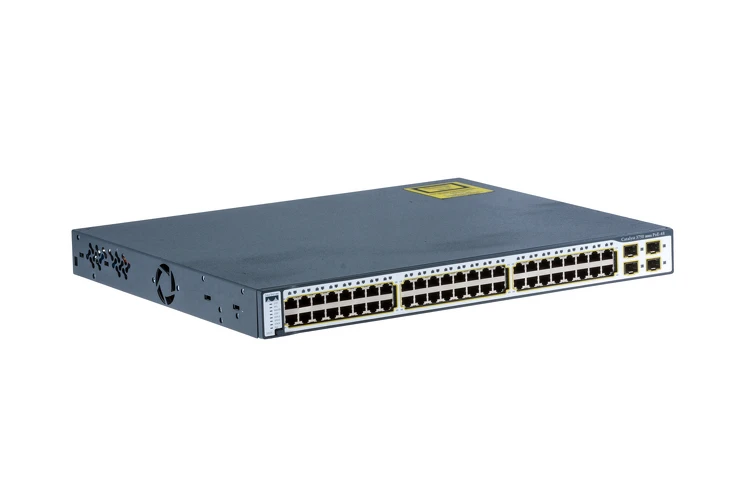

Cisco 3750 Series 48 Port Stackable PoE Switch, WS-C3750-48PS-S
| Refurbished | |||
|---|---|---|---|
| WS-C3750-24PS-S | $99.99 | ||
| WS-C3750-48PS-S | $129.99 | ||
click here to chat with a CK representative.
Back to topCisco Catalyst 3750 Series | 24 Port | 10/100 Fast Ethernet | IP Base | Managed | WS-C3750-48PS-S
The Cisco Catalyst 3750 Series switches are an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise™ technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system---one switch at a time. The Cisco Catalyst 3750-48PS-S switch has 48 Ethernet ports and four Small Form-Factor Pluggable (SFP) uplinks.
Quick Specs:
| Form Factor | Desktop, Rack Mountable |
|---|---|
| Rack Units | 1RU |
| Software | IP Base |
| Subtype | Fast Ethernet |
| Flash Memory | 16 MB |
| Expansion Slots | 0 |
| Total VLANs | 1,005 |
| Product Line | Cisco Catalyst |
| Series | 3750 |
| Manufacturer | Cisco |
|---|---|
| Power Over Ethernet (PoE) | PoE |
| RAM | 128 MB |
| Jumbo Frame Support | 9,018 byte |
| MAC Address Table Size | 12,000 |
| Stackable | Yes |
| AC Input Voltage | 100-240 VAC |
| DC Input Voltage | +12V at 7.5A |
| Warranty | Lifetime |
WS-C3750-48PS-S:
| Ports: | (48) x 10/100 PoE + 4 SFP |
|---|---|
| Measured 100% Throughput Power Consumption: Switch Power | 89W |
| Measured 100% Throughput Power Consumption: Total Output BTU | 302 BTU/hr |
| Measured 100% Througput Power Consumption (w/max possible PoE Loads): Switch Power | 489W |
| Measured 100% Througput Power Consumption (w/max possible PoE Loads): PoE Power | 370W |
| Measured 100% Througput Power Consumption (w/max possible PoE Loads): Total Output BTU | 404 BTU/hr |
| Power Supply Rated Maximum | 540W |
| Dimensions: | 1.73 x 17.5 x 16.1 in |
| AC Input Voltage & Frequency | 100-240VAC, 4.0-8.0A, 50-60 Hz |
| Stack Forwarding Rate | 13.1 mpps |
|---|---|
| Measured 5% Throughput Power Consumption: Switch Power | 84W |
| Measured 5% Throughput Power Consumption: Total Output BTU | 285 BTU/hr |
| Measured 5% Throughput Power Consumption (w/max possible PoE Loads): Switch Power | 288W |
| Measured 5% Throughput Power Consumption (w/max possible PoE Loads): PoE Power | 187W |
| Measured 5% Throughput Power Consumption (w/max possible PoE Loads): Total Output BTU | 345 BTU/hr | Weight: | 13.2 lbs |
| MTBF: | 166,408 hours |
| AC Input Voltage | 100-240VAC |
Environmental Parameters:
| Min Operating Temperature | 32° F |
|---|---|
| Max Operating Temperature | 113° F |
| Operating Humidity | 10 to 85% noncondensing |
| Min Storage Temperature | -13° F |
|---|---|
| Max Storage Temperature | 158° F |
| Storage Humidity | 10 to 85% noncondensing |
Stack Cables
- CAB-STACK-50CM - Cisco StackWise 50 cm stacking cable
- CAB-STACK-1M - Cisco StackWise 1 m stacking cable
- CAB-STACK-3M - Cisco StackWise 3 m stacking cable
- CAB-STACK-50CM-NH - Cisco StackWise 50 cm stacking cable
- CAB-STACK-3M-NH - Cisco StackWise 3 m stacking cable
Power Cords:
- CAB-AC-05 - AC Power Cord - US, CAB-AC, 5ft, Black
- CAB-AC - AC Power Cord - US, Cisco Compatible, 6ft, Black
- CAB-AC-08 - AC Power Cord - US, CAB-AC, 8ft, Black
- CAB-AC-10 - AC Power Cord - US, CAB-AC, 10ft, Black
- CAB-AC-RA-10 - AC Power Cord - US, CAB-AC, 10ft, Right-Angle
Transceivers:
- GLC-SX-MM - 1000BASE-SX SFP Module
- GLC-GE-100FX - 100BASE-FX SFP Module for Gigabit SFP Ports
- SFP-GE-L - 1000BASE-LX/LH SFP Module
- SFP-GE-S - 1000BASE-SX SFP Module (New)
- SFP-GE-S - 1000BASE-SX SFP Module (Refurb)
Click here to check out our deployment pack which has everything you need to be up and running in no time!
Media:
| What Is A Network Switch? |
|
| Basics of Network Switches |
| Warranty: | Lifetime Warranty |
|---|---|
| Series | Catalyst 3750 |
| 24 Port Model #: | WS-C3750-24PS-S |
| 48 Port Model #: | WS-C3750-24PS-S |
| Subtype: | Fast Ethernet |
| Rack Units | 1RU |
| PoE Compatibility | PoE |
