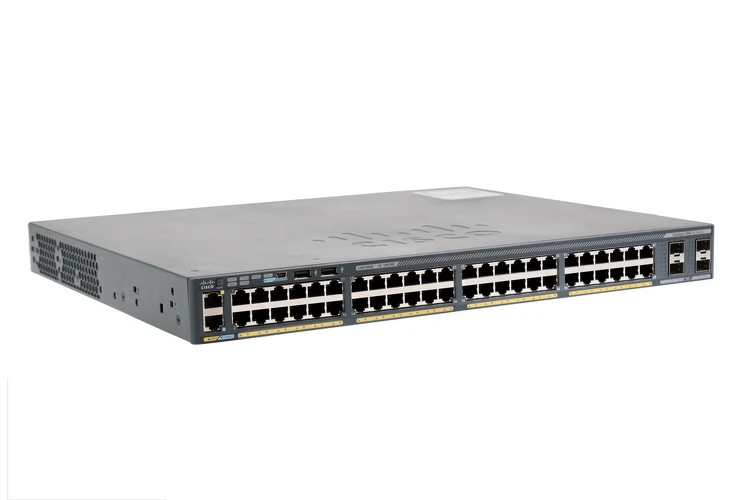

Cisco 2960-X Series 48 Port LAN Base Switch, WS-C2960X-48TS-L
click here to chat with a CK representative.
Cisco Catalyst 2960-X Series | 48 Port | 2 SFP | LAN Lite | Stackable | Managed | WS-C2960X-48TS-LL
Cisco has always done an amazing job with catering to small and medium business. The Cisco 2960-X series is another generation to the already popular 2960 series that will enable the typical small to medium business to function at an enterprise level without the enterprise budget. The 2960-X series switches offer a fixed configuration of Ethernet switches that are not only Gigabit, but also stackable. The 2960-X was specifically designed for easy deployment and operational efficiency. These switches are also energy cautious and have a large range of IOS software features.
Within the 2960-X family, the switches come in either 24 or 48 variations and have gigabit Small Form Factor (SFP) or 10G SFP+ uplinks. Each switch is equipped with FlexStack Plus. This enables the switch to be stacked up to eight switches and can produce 80 Gbps of stack throughput. Along with stacking, each unit will feature USB and Ethernet managed interfaces, LAN Base or LAN Lite, and energy management features. Power over Ethernet Plus (PoE+) is available on most models.
Switching capacity on the 2960-X series come in twenty-two percent higher than the 2960-S units as they have a total capacity of 216 Gbps. Each switch will offer either two 10 gig uplinks or four 1 gig uplinks and zero-touch configuration as well as IOS software updates when you are deploying the 2960-X switch.
- Cost-Effective Enterprise-Class Switching - The Cisco Catalyst 2960X Series of switches were designed to allow for a lower total cost of ownership. These switches provide enterprise-class access, but without the expensive price tag that normally accompanies enterprise-level equipment. Perfect for campus and branch applications.
- Enhanced Visibility & Reliability - These switches provide for increased visibility with Full (Flexible) NetFlow and NetFlow Lite as well as the Domain Name System as an Authoritative Source (DNA-AS) feature. They also are extremely reliable and resilient with many features built-in to prevent outages such as optional dual field-replaceable power suppliesm Cross-stack EtherChannel, Flex Links, and more.
- Stackable with Cisco FlexStack-Plus and FlexStack-Extended - Cisco 2960X series switches feature FlexStack technology. The hot-swappable Cisco FlexStack-Plus module can be added to any 2960X switch with a FlexStack-Plus slot and allows users to stack up to 8 Cisco Catalyst 2960X switches.
- Increased Security for Network Protection - The Cisco Catalyst 2960X series of switches provide a range of security features that allow users to limit access to their networks and to mitigate threats. These security features include Mac-based VLAN assignment, Cisco TrustSec, Comprehensive 802.1X, IPv6 First-Hop Security, Cisco Trust Anchor Technology, Cisco Threat Defense, and more.
- Intelligent PoE+ and Perpetual PoE - Select models support both IEEE 802.3af PoE and IEEE 802.3at PoE+ (up to 30W per port). The PoE power allocation is dynamic and power mapping scales up to a maximum of 740W of PoE+ power. In addition, some models support Perpetual PoE. With this feature, the PoE+ power is maintained during a switch reload which allows users to avoid disruption.
|Ports||(48) 10/100/1000 + (2) SFP|
|Port Speed||10/100/1000 Gigabit Ethernet|
|Forwarding Bandwidth||50 Gbps Forwarding Bandwidth|
|PoE Spec||No PoE|
|Max PoE+ Ports||None|
|Max PoE Ports||None|
|Switching Bandwidth||100 Gbps Switching Bandwidth|
|Uplink Ports||2 Dual Purpose Uplink Ports (10/100/1000 or SFP)|
|DRAM||256MB DRAM (standard)|
|VLAN IDs available||4096 VLANs|
|Max Active VLANs||64|
|Max Stacking Units||8|
|Software||LAN Lite Image|
|Predicted Reliability||476,560 hrs MTBF (Mean Time Before Fail)|
|Forwarding Rate: 64-Byte L3 Packets||104.2 Mpps|
|MAC Address Table Size||16k (default)|
|Min Operating Temp (up to 5,000 ft)||23° F|
|Max Operating Temp (up to 5,000 ft)||113° F|
|Operating Humidity||10 to 95% noncondensing|
|Min Storage Temperature (up to 15,000 ft)||-13° F|
|Max Storage Temperature (up to 15,000 ft)||158° F|
|Storage Humidity||10 to 95% noncondensing|
- Cisco AutoSecure
- Dynamic Host Configuration Protocol (DHCP)
- Stacking Master Configuration Management
- Dynamic Trunking Protocol (DTP)
- Port Aggeration Protocol (PAgP)
- Link Aggeration Protocol (LACP)
- Automatic Media-Department Interface Crossover (MDIX)
- Switching Database Manager
- Local Proxy Address Resolution Protocol (ARP)
- Multicast VLAN Registration (MVR)
- Unidirectional Link Detection Protocol (UDLD)
- VLAN1 Minimization
- Smart Multicast, With Cisco FlexStack-Plus Technology
- Internet Group Management Protocol (IGMP)
- Voice VLAN
- Cisco VLAN Trunking Protocol (VRP)
- Layer 2 Trace Route
- Trivial File Transfer Protocol (TFTP)
- Network Timing PRotocol (NTP)
- Mac-based VLAN Enabling
- Cisco TRUSTSec
- Comprehensive 802.1X
- IPv6 First-Hop Security
- Device Sensor and Device Classifier
- Private VLANs
- Access Control Lists (ACL's)
- Secure Shell (SSH) Protocol
- MAC Address Notification
- Bridge Protocol Data Unit (BPDU)
- IGMP Filtering
- Cross-Stack EtherChannel
- IEEE 801.1s/w Rapid Spanning Tree Protocol (RSTP)
- Power Redundancy
- Cisco Hot Standby Router Protocol (HSRP)
- Coss-stack QoS
- Rating Limiting
- 801.1p Class of Service
- GLC-GE-100FX (NIB) - 100 Mbps
- GLC-GE-100FX (Refurbished) - 100 Mbps
- GLC-GE-100FX (Compatible) - 100 Mbps
- GLC-T (NIB) - 10/100/1000 Mbps
- GLC-T (Refurbished) - 10/100/1000 Mbps
- GLC-T (Compatible) - 10/100/1000 Mbps
- GLC-TE (NIB) 10/100/1000 Mbps
- GLC-TE (Compatible) 10/100/1000 Mbps
- GLC-BX-D (Compatible) 1 Gbps
- GLC-BX-U (Compatible) 1 Gbps
- GLC-EX-SMD (Compatible) 1 Gbps
- GLC-LH-SMD (NIB) 1 Gbps
- GLC-LH-SMD (Refurbished) 1 Gbps
- GLC-LH-SMD (Compatible) 1 Gbps
- GLC-SX-MMD (NIB) 1 Gbps
- GLC-SX-MMD (Refurbished) 1 Gbps
- GLC-SX-MMD (Compatible) 1 Gbps
- CWDM-SFP-XXXX (Compatible) 1 Gbps
- C2960X-STACK - FlexStack-Plus hot-swappable stacking module
- C2960X-FIBER-STK - FlexStack-Extended Fiber stacking module
- C2960X-HYBRID-STK - FlexStack-Extended Hybrid module, with one copper and one fiber port
- CAB-STK-E-0.5M (NIB) - Stacking Cable 0.5M Length
- CAB-STK-E-0.5M (Refurbished) - Stacking Cable 0.5M Length
- CAB-STK-E-0.5M (Compatible) - Stacking Cable 0.5M Length
- CAB-STK-E-1M (NIB) - Stacking Cable 1M Length
- CAB-STK-1M (Refurbished) - Stacking Cable 1M Length
- CAB-STK-1M (Compatible) - Stacking Cable 1M Length
- CAB-CONSOLE-RJ45 - Console Cable with RJ45 Connector 6 Feet
- CAB-CONSOLE-USB - Console Cable with USB Type A and mini-B connectors 6 Feet
- PWR-CLP - Power Cable Restraining Clip
Redundant Power Supply Options:
- PWR-RPS2300 - Cisco Redundant Power System 2300 and blower, no power supply
- BLNK-RPS2300 - Spare bay insert for Cisco Redundant Power System 2300 for Cisco Catalyst 2960-X Series Switches
- CAB-RPS2300-E - Spare RPS 2300 cable for Cisco Catalyst 2960-X Series Switches
- BLWR-RPS2300 - Spare 45 CFM blower for RPS 2300
- C3K-PWR-750WAC - RPS 2300 750W AC power supply spare for Cisco Catalyst 2960-X Series
Power Cords (USA):
- CiscoWorks LAN Management Solution
- Cisco TrustSec
- Cisco Network Assistant
- Cisco Catalyst Smart Operations
- Borderless Networks
