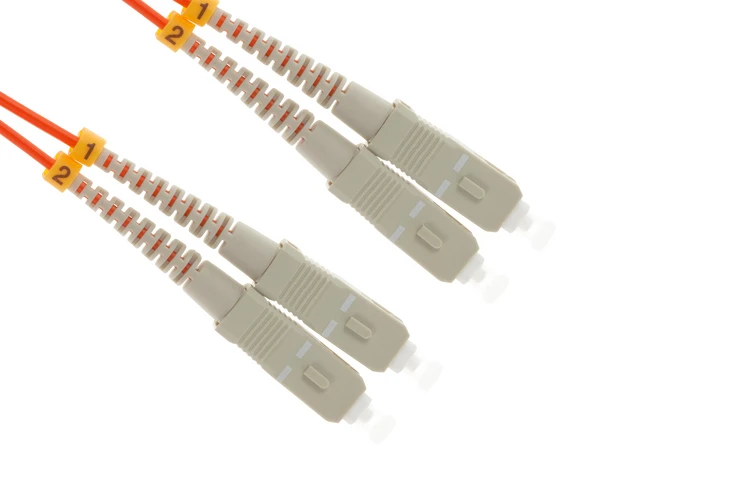

SC to SC Multimode Duplex 50/125 OM2 Fiber Patch Cable, 2 Meters
click here to chat with a CK representative.
(Length (in Meters))
Multimode OM2 (50/125) | SC to SC | 2 Meter (6.56 ft)
Fiber optic cabling is the medium of choice for longer distance and challenging cabling runs. These cables are thinner than copper patch cords and immune to EMI (Electromagnetic Interference) making them perfect for riser runs and uplink cables.
There are two basic types of fiber cabling, single-mode and multi-mode. The cables listed here are multi-mode. Inside these cables you will find three basic layers. Starting from the inside, you have the core which is surrounded by the cladding. Both are protected with the jacket on the outside. Multi-mode cables have a thicker "core size". The core size is simply the thickness of the optical fiber inside the cladding. The cladding is material that surrounds that core which basically serves as the boundary for the signal, keeping the light refined to the core and not allowing it to escape. The thicker the core size, the more refraction the signal exhibits, the more signal degradation that occurs and the shorter the distance an intelligible signal can transmit. For example, these cables are 50/125. 50 is the diameter of the core, and 125 is the diameter of the cladding, both in micrometers. Lastly, the jacket is the part of the cable you see. This layer protects the cable and provides easy identification based on its color. TIA-598C recommends orange for multi-mode.
SC connectors, commonly referred to as Subscriber Connectors, Square Connectors or Standard Connectors, are a larger, older connection type found in Cisco GBIC's. The design is rectangle allowing a higher density installation compared to even older, legacy fiber end types. The connector is a "push-pull" type, has a ferule diameter of 2.5mm and defined by IEC 61754-4
- OM2 Multi-mode Fiber
- SC to SC
- 2 Meters (6.56 ft)
- PVC (Polyvinyl Chloride) Jacket
- 2000M (6562 ft) @ 100Mps (can vary depending on optical transceiver, modal bandwidth and wavelength)
- 550M (1804 ft) @ 1Gbps (can vary depending on optical transceiver, modal bandwidth and wavelength)
- Most commonly used to connect Cisco uplink modules and various other fiber modules
- Uplink and riser cabling
|OM Rating||OM 2|
|Core Size||50 Micron|
|Cladding Size||125 Micron|
|Polish Type||PC (Physical Contact)|
