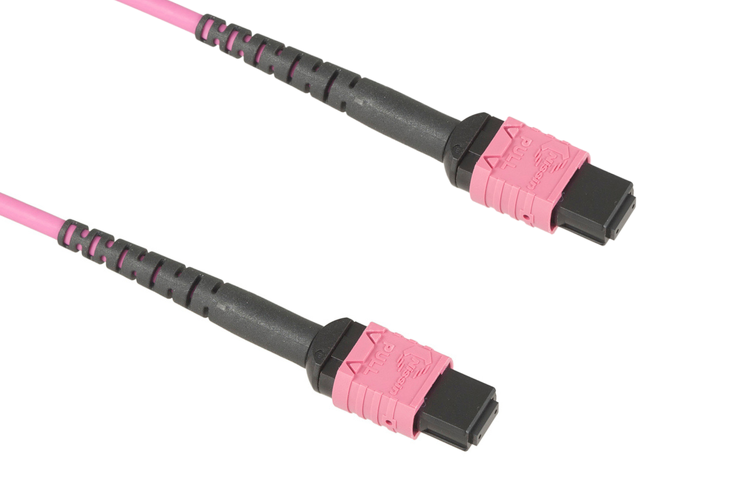

MPO Cable, 12-Strand, OM4, LSZH, UPC, Type B, Female Key Up to Female Key Up, 1 Meter
Length | 1 m | Product Type | Essentials |
Connector 1 | MPO | Connector 2 | MPO |
Cable Type | OM4 | Mode | Multimode |
Connector Type | MTP/MPO | Fiber Strands | 12 Strands |
Core Size | 50 Micron | Connectors | MPO |
Package Quantity | 1 | Jacket | LSZH |
RoHS Compliant | Yes | Polish Type | UPC (Ultra Physical Contact) |
Connector Pairs | MPO - MPO | Polish Type 1 | UPC (Ultra Physical Contact) |
Polish Type 2 | UPC (Ultra Physical Contact) | Mode Conditioning | No |
Jacket Color | Violet | Core Material | Standard |
Brand | CablesAndKits | OM Rating | OM4 |
Polarity | Type B | Gender | Female to Female |
Jacket Material | LSZH | Core/Cladding | 50/125 |
MPO Essentials Fiber Cable | OM4 Multimode | 50/125 | 12 Strand | Female to Female (No Pins) | Type B (Rollover) | LSZH | 1 Meter
Our MPO Essentials line of fiber cables feature high-quality, precision-built connectors that ensure secure connections for stable transmission with minimal optical loss. This female to female cable features 12 strands of laser optimized cable that allows you to drastically increase your network bandwidth. Additionally, this cable is made with a durable, Low Smoke Zero Halogen (LSZH) jacket. As with all of our products, these cables come with a Lifetime Advanced Replacement Warranty meaning that you can purchase risk-free knowing your satisfaction is guaranteed!
Features:
- Highly Durable OM4 50/125 Multimode Fiber
- 12 Fiber Strands for High-Density Trunk & Backbone Applications, creating 40G links and more (or utilize 8 of the strands for QSFP+ transceivers)
- Tybe B - Key Up to Key Up Polarity Perfect for Connecting Devices Directly or Migrating to a 40G Network
- Female to Female Connectors (No alignment pins) Perfect for Connecting to QSFP Transceivers & More
- Made with Fire Resistant Low Smoke Zero Halogen (LSZH) Jacket
- Our MPO Connectors Are Compatible with MTP Products
Quick Specs:
Connectors | MPO |
---|---|
Strands | 12 Strand |
Cladding Size | 125 Micron |
Core Size | 50 Micron |
Mode | Multimode |
Optical Mode | OM4 50/125μm |
Max Attenuation @ 850nm | 3.5dB |
Max Attenuation @ 1300nm | 1.5dB |
Insertion Loss: | 0.5dB or lower |
Return Loss: | 20db or higher |
Length | 1 Meter |
Polish Type | UPC (Ultra Physical Contact) |
---|---|
Color | Violet |
Jacket Material | LSZH |
Jacket Size | 3.0mm |
Installation Tensile Load | 160 N |
Long Term Tensile Load | 80 N |
Operating Temperature | -20°F to 140°F |
Storage Temperature | -30°F to 140°F |
RoHS Compliant | Yes |
Warranty | Lifetime |
The ever increasing demands for higher bandwidth and faster data transfer has led to some incredible innovations in technology. One such innovation is MPO fiber cable. Perfect for high-density environments, Multifiber Push-On (MPO) cables are an excellent way to quickly create high-speed interconnections for a wide range of purposes:
- Expanding capacity within an existing 10G network
- Migrating a 10G network to 40G or 100G
- Creating a connection between two 40G or 100G switches or servers
- Creating a connection between optical distribution racks
Whatever you are using them for, MPO cables can offer increased capacity to help your network run quickly and efficiently. Our exclusive line of MPO Essentials fiber cables were designed to deliver a quality product at a budget-conscious price. These high-performance cables feature high-quality MPO connectors on both ends, a Low Smoke Zero Halogen (LSZH) jacket, and come with an Advanced Replacement Lifetime Warranty included at no extra cost!
Female to Female Connectors
These fiber cables feature female MPO connectors on each end. Female connectors do not include alignment pins. These are excellent for connecting to QSFP/QSFP+ transceivers which include the alignment pins as part of the transceiver module.Plug-and-Play Design
Our MPO Essentials fiber cables come pre-terminated with MPO connectors so they are truly plug-and-play. This results in big time savings and ease of installation in the field.LSZH Jacket Material
The Low Smoke Zero Halogen (LSZH) jacket material provides you with the safest cabling environment by reducing the amount of toxic and corrosive gas that could be emitted when exposed to extreme heat or during combustion.Ultra Physical Contact (UPC) Polish
With the Ultra Physical Contact Connectors, these fiber cables will give lower Optical Return Loss (ORL) and Back Reflection than standard PC connectors giving you more reliable signals for data, digital, and telephony applications.12 Strand Fiber
These MPO cables feature 12 strands, making them incredibly versatile. Utilize all 12 strands to establish a 40G connection, back end trunk connections, or a connection between two high density patch panels. This fiber allows you to utilize all 12 strands or the outer 8 bands, depending on your needs.Type B Polarity
Also known as Rollover, Inverted, or Reversed, these type b cables have one end wired exactly opposite from the other end. This effectively "rolls over" the wires. This means that the fiber located at Position 1 on one end arrives at Position 12 on the other end. These are typically used to connect a device to a router or switch's console port.Your MPO Essentials Fiber Cable Toolkit
General Fiber Cabling Videos:
MPO Fiber Connectors Explained |
MPO Polarity Explained |
