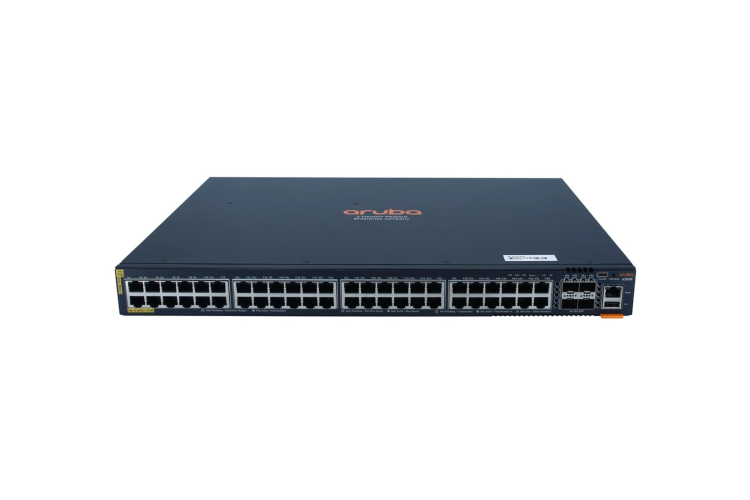

Aruba 6200F 48G Class4 PoE 4 SFP+ 370W Switch, Refurbished, JL727A
| Condition | |||
|---|---|---|---|
| Refurbished | $3,299.99 | ||
| Factory Sealed | $5,499.99 | ||
| Port Quantity | 48 | Series | Aruba 6200F |
| Rack Units | 1RU | Software | Aruba OS |
| OSI Layer | L3 | Stacking | Virtual Stacking |
| Deployment Pack | No | Hot Swappable Modules | No |
| Hot Swappable Fans | No | Hot Swappable Power Supply | No |
| Energy Efficient | Yes | Port Speed | 10/100/1000 |
| Ram | 8 GB | Display Condition | CK Certified Refurbished |
| Group On | Condition | Flash | 16 GB |
| Ports | 48 10/100/1000 + 4 SFP+ | Min Operating Temp | 32°F |
| Max Operating Temp | 113°F | Jumbo Frame Support | 9220 bytes |
| Predicted Reliability | - | Mac Addresses | 32K |
| Vlan Ids | 4094 | Min Storage Temp | -40°F |
| Max Storage Temp | 158ºF | Operating Humidity | 15 to 95% (noncondending) |
| Storage Humidity | 15 to 90% (noncondensing) | Ac Input Voltage | 100 to 240 VAC |
| Fans | Internal | Stacking Bandwidth | - |
| Unicast Routes | 2K IPv4 direct routes; 1K IPv6 direct routes | Available PoE Power | 370W |
| Forwarding Rate Based On 64-Byte Packets | 130.9 mpps | Power Specifications | 100-240VAC, 50-60Hz |
| Uplink Interfaces | 4 x SFP+ | Switched Virtual Interfaces (SVI's) | 128 |
| Brand | Aruba | Total Multi-Gigabit Ethernet Ports | None |
| Switching Capacity | 176 Gbps | Switching Capacity W/Stacking | - |
| Forwarding Rate W/Stacking | - | QoS Scale Entries | - |
| ACL Scale Entries | 5120 |
JL727A | HPE Aruba CX 6200F | 48-Port Gigabit PoE+ Switch | 4 SFP+ | 370W | Refurbished
The HPE Aruba CX 6200F JL727A is a high-performance 48-port Gigabit PoE+ switch designed for modern enterprise networks. It features 4 SFP+ uplink ports, providing high-speed connectivity and seamless scalability. With a 370W power budget, it efficiently powers PoE-enabled devices such as IP phones, wireless access points, and security cameras. Built on Aruba’s AOS-CX operating system, this switch offers advanced Layer 2 and Layer 3 capabilities, intelligent automation, and robust security features for enhanced network reliability. Its compact design and enterprise-grade performance make it an ideal solution for campus access, branch offices, and SMB networks. This refurbished model is fully tested and certified, delivering cost-effective, high-quality networking without compromising performance.
Highlights:
- High Performance & Power Efficiency – Layer 3 switching with low latency, adaptive power consumption, and high-speed connectivity. Supports PoE+ (up to 1440W) for wireless APs & IoT devices.
- Scalable & Resilient – 8-member stacking with built-in SFP+ ports for easy network expansion. Hot-swappable power supplies & fans ensure reliability.
- Automated Monitoring & Troubleshooting – AI-driven analytics detect and resolve network issues using real-time telemetry, Python scripting, and REST APIs.
- Enhanced Security & Segmentation – Dynamic segmentation ensures role-based access control, device profiling, and Layer 7 firewall protection for improved network security.
Tech Specs:
| Ports | (48) x 10/100/1000 PoE + (4) 1/10G SFP |
|---|---|
| Subtype | Gigabit Ethernet |
| Additional Ports | (1) x USB-C Console Port; (1) USB Type-A Host Port |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Flash Memory | 16GB |
| RAM | 8GB |
| Packet Buffer | 6MB |
| Switched Virtual Interfaces (dual stack) | 256 |
| IPv4 Host Table (ARP) | 8,192 |
| IPv6 Host Table (ND) | 8,192 |
| IPv4 Unicast Routes | 2,048 |
| IPv6 Unicast Routes | 1,024 |
| Form Factor | Desktop, Rack Mountable |
| Rack Units | 1RU |
| Software | Aruba AOS-CX |
| Fans | Fixed Internal |
| Power Supply | F2 field-replaceable, hotswappable power supply slots |
| Manufacturer | HPE Aruba |
|---|---|
| Power Over Ethernet (PoE) | PoE/PoE+ |
| IPv4/IPv6/MAC ACL Entries (ingress) | 5,120/1280/5,120 |
| IPv4/IPv6/MAC ACL Entries (egress) | 2,048/512/2,048 |
| Available PoE | 370W |
| Jumbo Frame Support | 9,220 bytes |
| MAC Table Capacity | 32,768 |
| IGMP Groups | 1,024 |
| MLD Groups | 1,024 |
| Operating Temperature | 32° to 113° up to 5,000 ft |
| Operating Humidity | 15% to 95% (non-condensing) |
| Storage Humidity | 15% to 90% (non-condensing) |
| Frequency | 50/60 Hz |
| AC Voltage | 100-120V/200-240V |
| Current | 7.5A/3.5A |
| CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
| Stackable | Up to 8 members |
| Dimensions | 1.73 x 17.4 x 12.9 in |
| Weight | 11.13 lbs |
| Warranty | Lifetime |
CX 6200 Compatible 1G SFP Transceivers:
CX 6200 Compatible 10G SFP+ Transceivers:
- HPE Aruba 10G SFP+ LC SR 300m (J9150D) – MMF, up to 300m
- HPE Aruba 10G SFP+ LC LR 10km (J9151D) – SMF, up to 10km
- HPE Aruba 10G SFP+ LC ER 40km (J9153D) – SMF, up to 40km
CX 6200 Compatible 10G Direct Attach Cables (DAC):
- HPE Aruba 10G SFP+ to SFP+ 0.65m DAC (J9281D)
- HPE Aruba 10G SFP+ to SFP+ 1.2m DAC (J9283D)
- HPE Aruba 10G SFP+ to SFP+ 3m DAC (J9285D)
- Mounts in an EIA-standard 19 in. Horizontal surface mounting only.
- 2-post rack kit included.
- HPE Aruba C13 to NEMA 5-15P 10A Power Cord (J9827A) – North America
- HPE Aruba C13 to C14 Power Cord (J9990A) – International/Datacenter Use
- HPE Aruba C13 to BS 1363 Power Cord – UK
- HPE Aruba C13 to Schuko (CEE 7/7) Power Cord – EU
- HPE Aruba C13 to AS 3112 Power Cord – Australia/New Zealand
Standard Features:
- Enterprise-Grade Performance – Supports ACLs, QoS, static & OSPF routing for reliable connectivity.
- Scalability – 8-switch VSF stacking for up to 384 ports.
- Flexible Uplinks – Supports 1G/10G with LRM & MACsec 256 on modular models.
- Built-In Uplinks – Fixed power models include 1G/10G uplinks, with cost-effective 1G options available.
- Power over Ethernet (PoE) – Up to 30W (Class 4) per port on fixed models, up to 60W (Class 6) on modular models.
- Smart Network Management – Real-time monitoring, visibility, and troubleshooting with Network Analytics Engine.
Media:
| What Is A Network Switch? |
|
| Aruba vs. Cisco Switches |
