Plenum vs. Riser Ethernet Cables: Don't Install Until You Read This

Planning a network setup? Have you considered whether your Ethernet cables meet building code requirements or just assumed they do?

When setting up a network whether at home, in a corporate office, or deep inside a data center, most people focus on speed, bandwidth, and devices. But there’s a hidden choice that can make or break your setup: the type of Ethernet cable jacket.

At first glance, Plenum and Riser cables may seem interchangeable. But using the wrong one can quietly jeopardize your safety, violate building codes, and even lead to failed inspections without you realizing it until it’s too late.

In this guide, we’ll break down the real difference between Plenum and Riser Ethernet cables, why one is safer in emergencies, and how to make a code-compliant choice that protects your network and your peace of mind.

Understanding Plenum and Riser Cables

Plenum Ethernet Cables

A Plenum Ethernet cable is designed with a special jacket made from low-smoke, fire-retardant materials like FEP (Fluorinated Ethylene Propylene). These cables are built to comply with strict safety regulations for areas where air circulates known as plenum spaces such as air ducts and drop ceilings.

Riser Ethernet Cables

A Riser Ethernet cable uses a PVC (Polyvinyl Chloride) jacket that meets the fire-resistance requirements for vertical runs between floors. These are commonly used in riser shafts, elevator shafts, or walls anywhere not exposed to open airflow.

Key Differences Between Plenum and Riser Ethernet Cables

Regarding network infrastructure, the terms Plenum and Riser aren’t just labels. They refer to crucial safety and installation distinctions affecting performance, compliance, and legal liability.

Fire Safety Rating

• Plenum (CMP): It is engineered for environments with circulating air, such as above drop ceilings or under raised floors. These cables meet the highest fire safety standards, producing very low smoke and toxic emissions if burned critical in helping occupants evacuate safely during a fire.
• Riser (CMR): It is intended for vertical spaces like riser shafts or cable runs between floors. While they offer decent flame resistance, they emit more smoke and aren’t safe for areas with open airflow.

Installation Environment

• Plenum: It is required by code in air-handling spaces, especially in commercial buildings where ventilation systems could rapidly spread smoke or fumes.
• Riser: It is commonly used in residential buildings or office spaces for in-wall or floor-to-floor cabling where the air is not actively circulated.

Cost Comparison

• Plenum: Due to their specialized materials and fire-retardant properties, plenum cables tend to be significantly more expensive, sometimes twice the price of riser cables.
• Riser: It offers a more budget-friendly solution for applications where plenum-grade protection is unnecessary.

Flexibility & Ease of Use

• Plenum: It is often more rigid due to its insulation, which can make it slightly harder to maneuver during installation, especially in tight spaces.
• Riser: They are generally more flexible, making them easier to work with for long vertical runs or curved pathways within walls.

Code Compliance & Ratings

• Plenum: Must comply with UL 910 and NFPA 262, which test flame spread and smoke production in horizontal airflow environments.
• Riser: It is rated under UL 1666, which tests flame propagation in vertical shafts without active air movement.

Where Should Each Cable Type Be Installed?

One of the most critical factors when selecting between Plenum and Riser Ethernet cables is knowing where each is allowed and best suited to be installed.

Plenum Cable Applications

Plenum-rated cables (CMP) are required in environments where air circulates freely, typically spaces that play a role in building ventilation. These areas pose a greater fire risk because air movement can spread flames and smoke quickly.

Here’s where Plenum cables are commonly used:

• Plenum space installation: Drop ceilings or raised floors used for air return.
• Air duct compatibility: It is safe for use inside or adjacent to HVAC ducts.
• HVAC areas: They are necessary for heating and cooling zones with shared airflow.
• Commercial buildings with shared air systems: Plenum cables are code-mandated in offices, schools, and healthcare facilities with central air distribution.

Riser Cable Applications

Riser-rated cables (CMR) are intended for vertical cabling pathways that don’t require airflow-safe insulation. These are still fire-resistant but not held to the same high standard as plenum cables.

Typical uses include:

• Vertical cable runs between floors: It is often installed inside walls or riser shafts.
• Multi-story building riser shafts: It is Ideal for distributing network connections across levels.
• Residential building use: Suitable for homes without plenum spaces or central air return systems.

Performance & EMI Resistance

When installing Ethernet cables, it’s essential to consider how they will perform under typical network conditions and whether they will be exposed to Electromagnetic Interference (EMI).

Signal Transmission

Both Plenum and Riser cables provide high-quality signal transmission. The only notable difference is their construction, which primarily affects fire resistance and flexibility rather than transmission capabilities.

EMI Resistance:

• Plenum Cable: Plenum cables have thicker insulation, which helps protect against interference in areas with a lot of electromagnetic noise.
• Riser Cable: Riser cables can resist EMI but have less shielding than plenum cables, making them better for places with low interference.

Flexibility:

• Plenum cables are generally stiffer due to the material composition needed to meet fire safety standards. This makes installation more challenging, particularly in tight spaces.
• Riser cables are more flexible and can be easier to route, especially in environments where the cable needs to navigate around corners or obstacles.

Explore Our High-Quality Plenum and Riser Ethernet Cables.

Looking for premium Plenum and Riser Ethernet cables? CablesAndKits offers a variety of options designed to meet NEC standards and ensure optimal performance and safety for your network installations

Plenum-Rated Ethernet Cables

It is designed for air-handling spaces with enhanced flame resistance and low smoke emission.

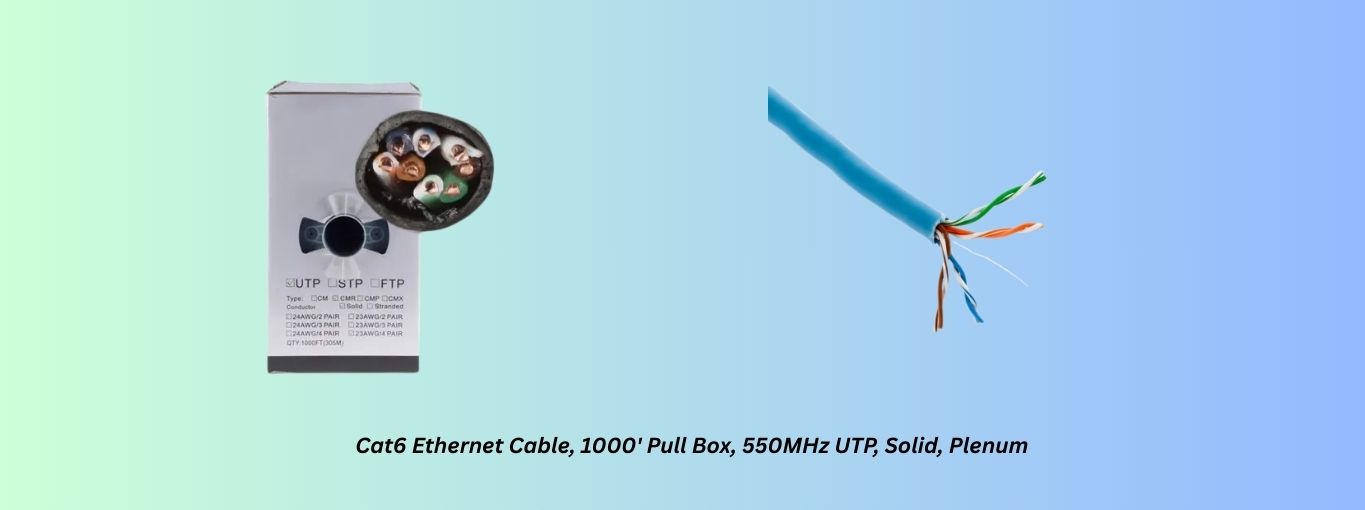

Cat6 Ethernet Cable, 1000' Pull Box, 550MHz UTP, Solid, Plenum

The Cat6 Ethernet Cable is ideal for high-speed network installations with 550 MHz bandwidth and solid copper conductors. The plenum-rated jacket (CMP) ensures fire safety in air-handling spaces.
Quick Specs:

• Bandwidth: 550 MHz
• AWG: 23
• Jacket: Plenum (CMP)

Enhance your network performance with the Cat6 Ethernet Cable perfect for high-speed applications in sensitive spaces. Order now and experience optimal network speed and safety.

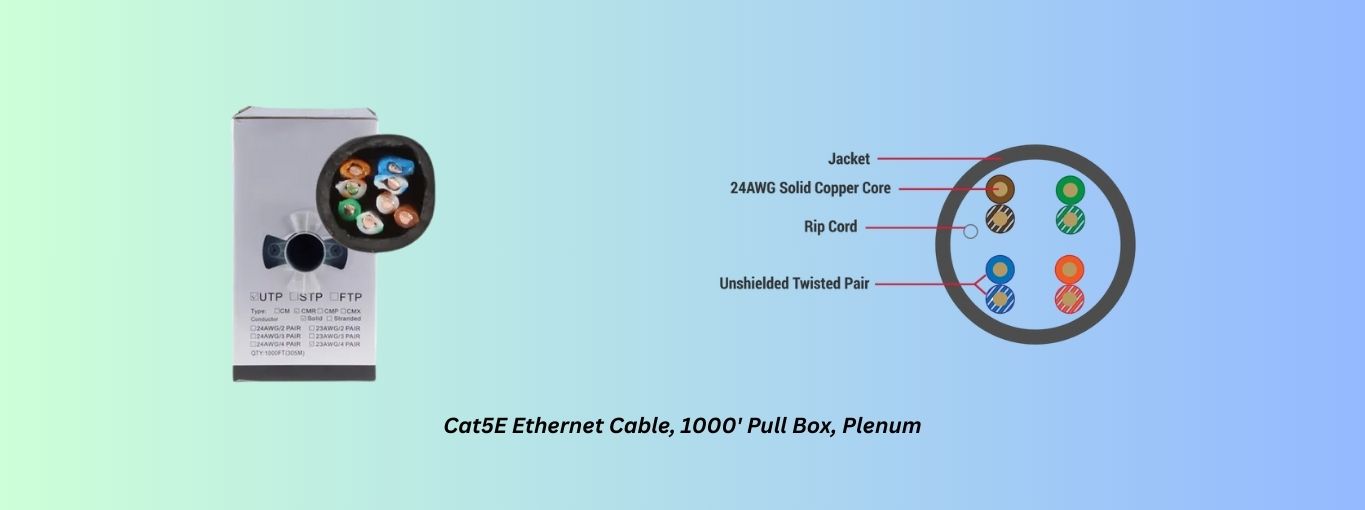

Cat5E Ethernet Cable, 1000' Pull Box, Plenum

This Cat5e Ethernet Cable supports Gigabit speeds with 350 MHz bandwidth, making it ideal for general networking. Its plenum-rated jacket (CMP) ensures safe installation in air-handling spaces.
Quick Specs:

• Bandwidth: 350 MHz
• AWG: 24
• Jacket: Plenum (CMP)

Equip your network with a reliable, plenum-rated solution ideal for safe, high-speed installations. Shop now for a safer and faster network experience.

Riser-Rated (Non-Plenum) Ethernet Cables

Riser-rated cables are perfect for vertical runs in walls or between floors. They offer fire resistance but are not suited for air-handling spaces.

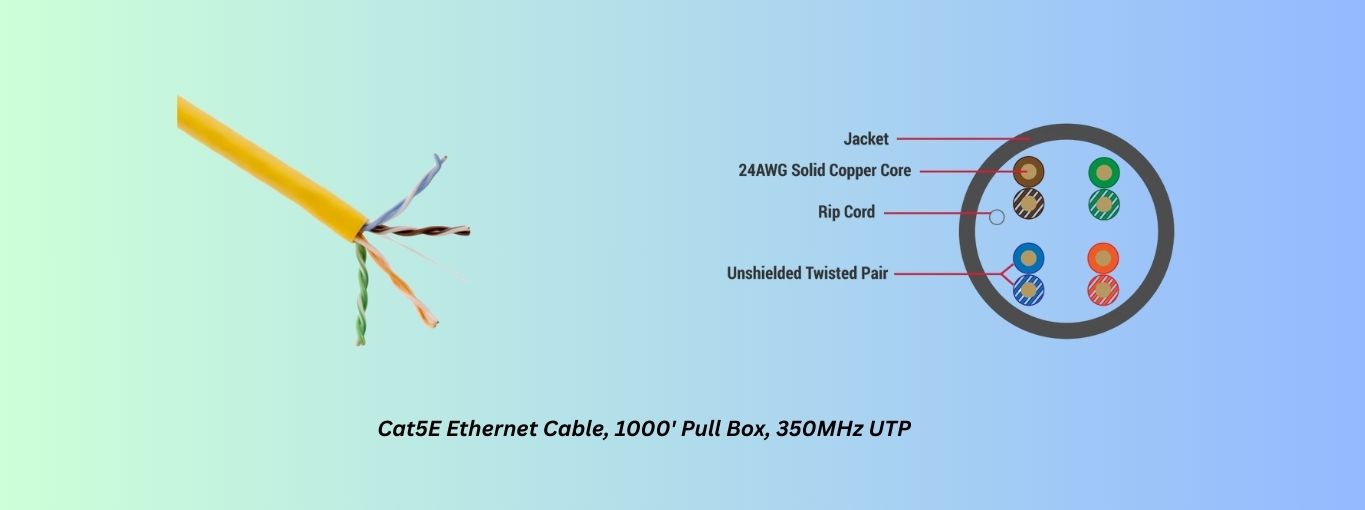

Cat5E Ethernet Cable, 1000' Pull Box, 350MHz UTP

This Cat5e Ethernet Cable offers 350 MHz bandwidth for standard networking. Its riser-rated PVC jacket ensures safety for vertical installations in walls or between floors.
Quick Specs:

• Bandwidth: 350 MHz (Gigabit speeds)

• AWG: 24 (Solid copper conductors)

• Jacket: PVC (CMR) (Fire-resistant for vertical installations)

Get the Cat5e Ethernet Cable for your riser-rated applications perfect for cost-effective, safe vertical runs. Shop now and ensure safe and cost-effective installations.

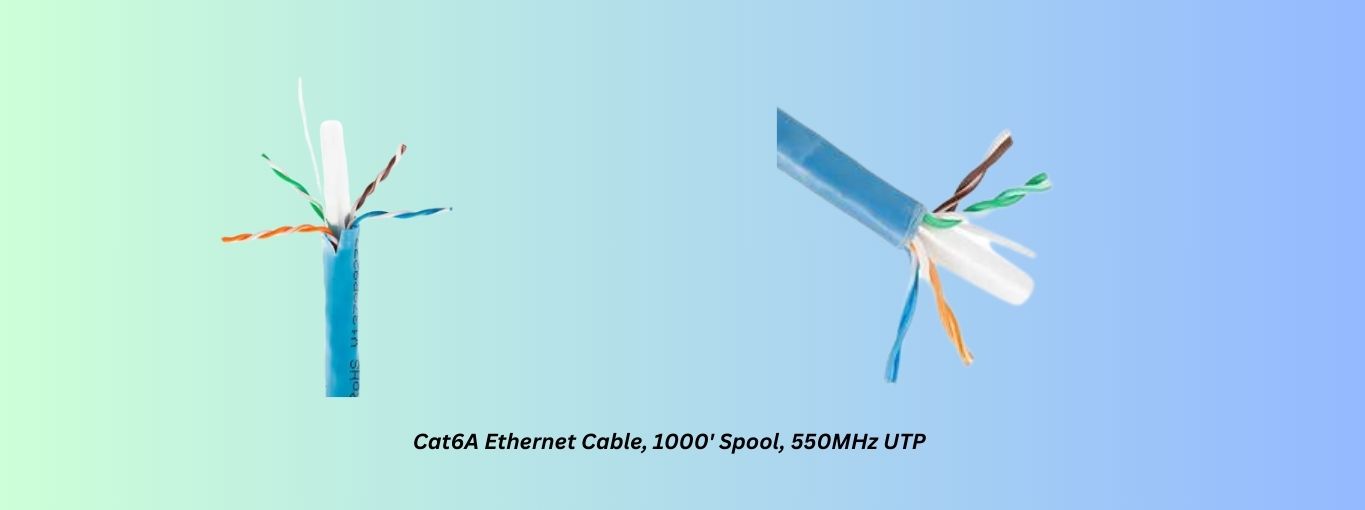

Cat6A Ethernet Cable, 1000' Spool, 550MHz UTP

The Cat6A Ethernet Cable offers 550 MHz bandwidth and 10GbE support. The riser-rated PVC jacket ensures safe, vertical runs across multiple floors.
Quick Specs:

• Bandwidth: 550 MHz (Supports 10GbE)
• AWG: 23 (Solid copper conductors)
• Jacket: PVC (CMR) (Fire-resistant for vertical runs)

Power your network with the Cat6A Ethernet Cable perfect for high-speed vertical runs and 10GbE performance. Book now for fast, reliable networking.

How to Choose the Right Cable for Your Installation

Selecting the correct cable type Plenum or Riser is essential for both safety and performance. To make an informed decision, consider these key factors before purchasing:

1. Is the Building Commercial or Residential?

• Plenum-rated cables are often needed in commercial settings to meet stricter fire safety codes, especially in spaces with air handling systems.
• Residential installations can often use Riser cables, which are more cost-effective for areas with lower fire hazards.

2. Where Will the Cable Be Installed?

• Plenum cables are mandatory for air ducts or ceiling spaces due to their enhanced fire resistance.
• If the installation involves vertical runs between floors, Riser cables are typically the best choice.

3. What Level of Fire Resistance Do You Need?

• For installations requiring maximum fire safety, Plenum cables are preferred.
• For installations that primarily need to meet basic code requirements, Riser cables offer a practical and more affordable option.

Conclusion

Choosing the right cable depends on your installation’s specific needs. Plenum cables offer the highest fire safety standards and are required for certain environments like air ducts or shared air systems. Riser cables, on the other hand, offer a more economical option for non-airflow spaces, such as vertical runs between floors.

Before making a purchase, be sure to confirm the cable requirements for your specific environment. For a wide selection of high-quality options, visit CablesAndKits.com.
