The Ultimate Guide to 24-Port Gigabit Ethernet Switches: Everything You Need to Know

In today’s tech-driven world, a reliable network is crucial for businesses of all sizes. 24-port Gigabit Ethernet switches are essential for expanding network capacity and boosting performance. It ensures seamless communication and data transfer. With so many options available, choosing the right switch can be overwhelming.

Moreover, this guide simplifies the process, covering the basics of Gigabit Ethernet technology, key features, and model comparisons. Whether upgrading your current setup or building a new network, this guide offers expert insights to help you choose the best switch for your needs and stay competitive in the business world.

Understanding Gigabit Ethernet Technology

Gigabit Ethernet technology has become the backbone of modern network infrastructures, offering faster data transfer speeds and improved performance. It enables the transmission of data at speeds of 1,000 Mbps. This is significantly faster than traditional Fast Ethernet which operates at only 100 Mbps. This enhanced speed is crucial for handling large data volumes. It makes it ideal for businesses that need to support multiple users and devices.

Whether you’re running a small office network or a large data center, Gigabit Ethernet ensures smoother operations and better productivity by minimizing network delays and congestion.

Benefits of Using 24 Port Gigabit Ethernet Switches

A 24 port GB Ethernet switch offers several advantages for businesses, primarily by providing more connectivity options for devices like computers, printers, access points, and IP cameras.

Here are some of the key benefits:

Its scalability supports multiple devices, reducing the need for additional switches. With PoE support, it powers devices like IP phones and cameras through Ethernet cables, eliminating extra power sources.

Advanced features like VLAN support and cloud-based management simplify network control and traffic monitoring. Additionally, a 24-port switch is cost-effective. It handles more devices and lowers equipment costs. This makes it an ideal solution for growing networks.

Factors to Consider When Choosing a 24-Port Gigabit Ethernet Switch

When selecting a 24-port gigabit Ethernet switch, there are several factors you should keep in mind:

PoE Compatibility:

If you plan to power devices like cameras, access points, or VoIP phones, ensure the switch supports PoE or PoE+ to handle different power requirements.

Uplink Ports:

An uplink port is a unique type of Ethernet port made for connecting to another network device's uplink port. It's often used to expand a network by linking multiple switches or hubs together, extending the network's range beyond a single device.

Look for switches with SFP or SFP+ uplink ports for high-speed connections to other switches or servers, especially if you're integrating fiber-optic connections.

Switching Capacity and Performance:

Consider the switching bandwidth and forwarding rate to ensure the switch can handle the expected data traffic without bottlenecks.

Management Features:

Decide if you need a managed switch. It offers features like cloud-based management, VLAN support, and security protocols. Or, check if an unmanaged switch will be enough for your needs.

Energy Efficiency:

Some switches feature low-power designs and fanless operation for quiet and energy-efficient performance. This makes them ideal for noise-sensitive environments.

Brand Reliability:

Cablesandkits.com offers high-quality switches with good warranty and support options.

Best 24-Port Gigabit Ethernet Switches

Here are three Cisco Meraki 24-port gigabit Ethernet switches, each with unique features to fit different network needs.

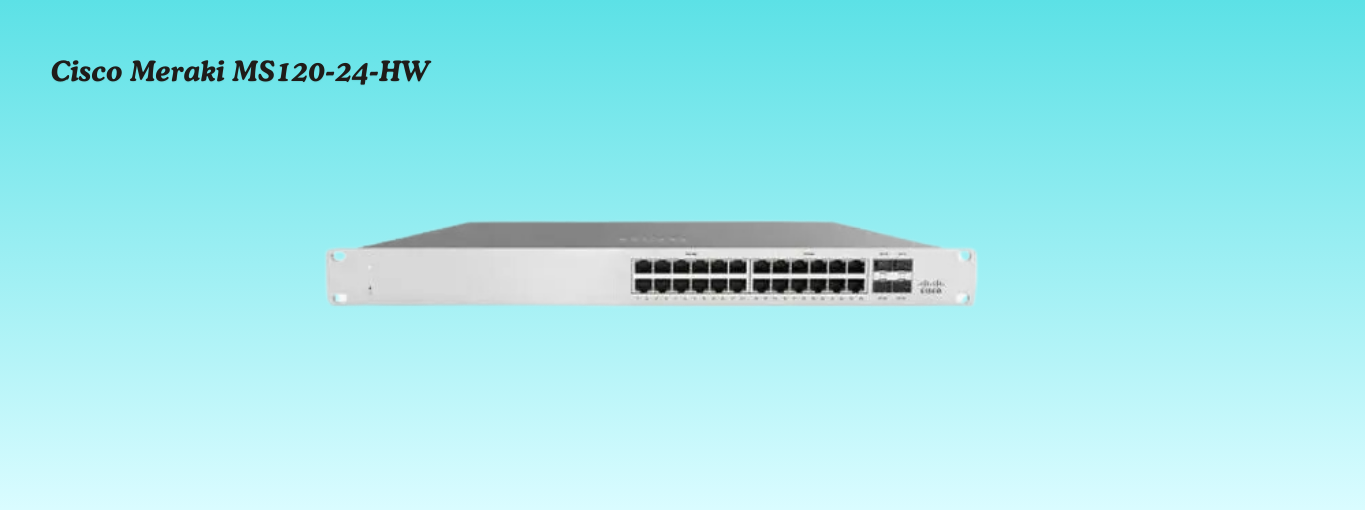

Cisco Meraki MS120-24-HW

The MS120-24-HW is a 24-port gigabit Ethernet switch with 4 SFP (1G) uplinks and a switching capacity of 56 Gbps. It does not support PoE, making it ideal for simpler network setups where powering devices like IP phones or access points through the switch is not required. This model is best suited for environments that need reliable connectivity without the need for PoE functionality.

Cisco Meraki MS120-24P-HW

The MS120-24P-HW offers the same 24 gigabit Ethernet ports and 4 SFP (1G) uplinks as the MS120-24-HW, but with the added benefit of PoE/PoE+ support. It provides up to 370W of power to connected devices, making it perfect for networks that need to power IP cameras, wireless access points, and other PoE-enabled devices. It also maintains a switching capacity of 56 Gbps, making it versatile for a variety of business setups.

Cisco Meraki MS225-24P-HW

The MS225-24P-HW is a more advanced model with PoE/PoE+ support and 4 SFP+ (10G) uplinks, offering faster data transfer speeds and a significantly higher switching capacity of 128 Gbps. This switch is ideal for larger networks that require both PoE and high-speed uplinks for more demanding data traffic. It’s perfect for businesses that need superior performance and scalability in their network infrastructure.

Installation and Setup Guide

Setting up a 24 port GB Ethernet switch is a straightforward process that can be completed in a few steps:

• Unboxing and Placement: Ensure the switch is positioned in a well-ventilated area, ideally within a rack or on a desktop, depending on the form factor.
• Power Connection: Connect the switch to a power source and make sure it powers on successfully.
• Connecting Devices: Plug Ethernet cables from your devices (computers, printers, access points) into the available ports. Use the uplink ports to connect the switch to other switches or your network’s main router.
• Configuration: For managed switches, log into the switch’s web-based interface or management software to configure settings like VLANs, security protocols, and port assignments.
• Testing and Monitoring: Once everything is connected, test the connections to ensure all devices are communicating properly. Use monitoring tools to track performance and troubleshoot any issues.

Troubleshooting Common Issues

Even with high-quality switches, issues can arise. Here are some common problems and their solutions:

• No Connectivity on Some Ports: Ensure the cables are properly connected and not damaged. Test with different devices or ports to rule out a faulty port.
• Slow Network Speeds: Check for any devices running at lower speeds (10/100 Mbps) that may be slowing down the entire network. Ensure that the switch is configured for Gigabit Ethernet speeds on all ports.
• Power Issues with PoE Devices: Verify the PoE budget of the switch and ensure it's sufficient to power all connected devices. If some devices aren’t receiving power, redistribute the load or consider a switch with a higher PoE budget.
• Management Access Issues: For managed switches, check the IP settings and ensure your device is on the same network. Reset the switch if necessary.

Best Practices for Maintaining and Optimizing

To ensure your 24-port gigabit Ethernet switch runs smoothly, it's crucial to implement key maintenance practices. First, regularly update the switch’s firmware to apply the latest security patches and boost performance. Additionally, monitor network traffic with built-in tools to quickly identify and resolve bottlenecks or other potential issues.

Proper cable management is also vital. Organize and inspect cables to prevent damage that could disrupt connectivity. Lastly, review and update security settings like port security, MAC whitelisting, and VLAN configurations regularly to protect your network from unauthorized access and maintain optimal security levels.

Conclusion

A 24-port gigabit Ethernet switch is a vital component for building a reliable, scalable, and efficient network. Whether you're expanding a small office setup or managing a larger infrastructure, these switches offer high-speed connectivity, enhanced security features, and seamless integration of devices.

By understanding the key factors such as PoE support, uplink options, and management features, you can make informed decisions that optimize your network’s performance. Investing in the right switch not only future-proofs your network but also simplifies management and reduces long-term costs. With the insights from this guide, you’re now equipped to choose the best 24-port gigabit Ethernet switch for your business needs.
