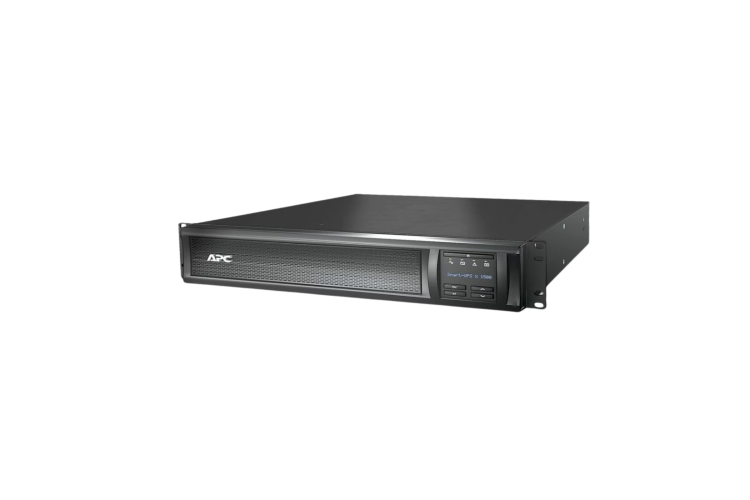

APC UPS EXT RUN 1500VA RACK 120V +AP9641, SMX1500RM2UCNC
| Series | APC Smart-UPS X | Rack Units | 2RU |
| Color | Black | Form Factor | 2RU |
| Power Rating | 1500 VA / 1350 W | Rack Type | Two Piece Wall Mount Rack |
| Front Door Type | - | Rear Door Type | - |
| Battery Type | Sealed (lead-acid) | Network Management Card | Included (pre-installed) |
| Topology | Line-Interactive | Power Input | 120V AC |
| Rack Depth | 19.29 in. | Brand | APC |
| Portable/casters | No | Additional Ports | USB Port |
| Input Plug Type | NEMA 5-15P | UPS Power Architecture | Integrated UPS power system |
| Expandable Runtime | Yes (supports external battery packs) | Included Battery Modules | 1 |
| Output Receptacles | 8 x NEMA 5-15R | Output Waveform | Pure sine wave |
| Surge Protection | 540 joules | LCD Interface | Multi-function LCD status and control panel |
| Transfer Time | 4 ms typical / 8 ms max | Typical Recharge Time | ~3 hours |
SMX1500RM2UCNC | APC UPS EXT RUN | 1500VA RACK 120V +AP9641 | NIB
The APC Smart-UPS X SMX1500RM2UCNC is a high-performance 1500VA / 1350W line-interactive rackmount UPS designed to provide reliable battery backup and advanced power protection for servers, networking equipment, and critical IT infrastructure. Built for 2U rack installations (with optional tower configuration), this UPS delivers pure sine wave output to ensure compatibility with modern power supplies and sensitive electronics.
This model includes the AP9641 Network Management Card, enabling secure remote monitoring, management, and firmware updates through a web interface or network protocols. In addition, the SmartConnect Ethernet port provides cloud-based UPS monitoring with proactive alerts and diagnostics, helping administrators maintain uptime and manage distributed IT environments efficiently.
With automatic voltage regulation (AVR) and line-interactive topology, the SMX1500RM2UCNC corrects voltage fluctuations without switching to battery power, improving battery longevity and ensuring consistent output during unstable power conditions. The unit features 8 NEMA 5-15R battery-backup outlets, a backlit LCD interface, and support for up to five external battery packs to significantly extend runtime during outages.
Features:
- 1500VA / 1350W power capacity for servers, networking gear, and IT equipment.
- 1Line-interactive topology with Automatic Voltage Regulation (AVR) to stabilize voltage without switching to battery.
- 1Pure sine wave output for compatibility with sensitive electronics and active PFC power supplies.
- 12U rack / tower convertible design for flexible deployment in racks or standalone setups.
- 18× NEMA 5-15R battery backup outlets to support multiple connected devices.
- 1Pre-installed AP9641 Network Management Card for secure remote monitoring and UPS management.
- SmartConnect cloud monitoring with alerts and diagnostics via Ethernet connection.
- Extended runtime capability with support for external battery packs.
- Hot-swappable, maintenance-free sealed lead-acid battery for easy replacement without downtime.
- LCD display interface for real-time status, configuration, and diagnostics.
- Three switchable outlet groups for load prioritization and controlled shutdowns.
- ENERGY STAR certified high-efficiency operation (up to ~98% efficiency).
Applications:
- IT & Server Rooms
- Networking Infrastructure
- Enterprise & Branch Offices
- Healthcare & Lab Equipment
- Light Industrial & Critical Systems
- Edge & Remote Monitoring Deployments
