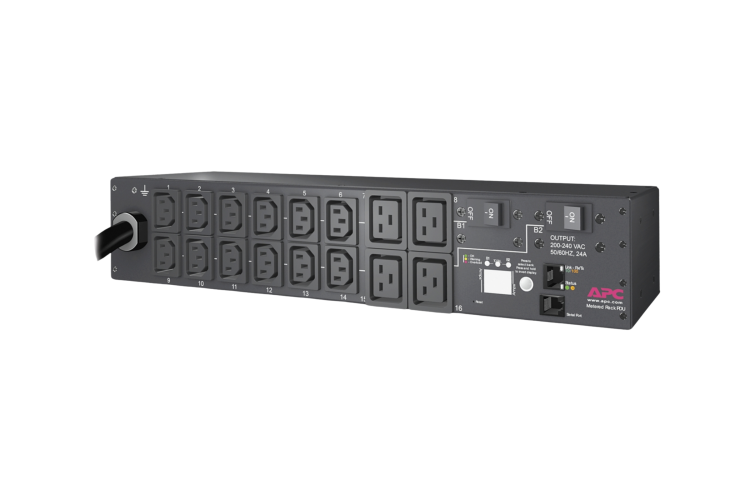

APC Metered 2U Rack PDU, 30A 208V Power Distribution Unit with (12) C13 & (4) C19 Outlets, AP7811B
| Series | APC 7000 | Rack Units | 2U |
| Length | 3.6 m | Mount Direction | Horizontal |
| UL Listed | Yes | RoHS Compliant | Yes |
| Supply End | NEMA L6-30P | Equipment End | NEMA L6-30R |
| PDU Type | Metered | Ac Input Voltage | 200-208 VAC |
| Brand | APC | Line Rated Current | 24 A |
| Mounting Location | Front | USB Compatible | No |
| Communication Port Protocol | SNMP, Redfish |
AP7811B | Power Distribution Units | APC Metered 2U Rack PDU, 30A 208V Power Distribution Unit with (12) C13 & (4) C19 Outlets | NIB
The APC Metered 2U Rack PDU, 30 A, 208 V Power Distribution Unit is designed to deliver reliable AC power distribution for rack-mounted IT equipment in data centers, server rooms, network closets, and other mission-critical environments. It combines sturdy construction with intelligent metered power monitoring to help IT staff optimize power usage, balance loads, and avoid circuit overloads.
Features:
- 2U horizontal form factor fits standard rack enclosures and includes mounting hardware.
- Real-time current metering lets you see aggregate power draw and trending loads so you can plan capacity and avoid overloads.
- Network management support with Web interface, SNMP, and command-line access to monitor PDU status remotely and integrate with management platforms.
- Rated for 30 A input at 208 V AC via a NEMA L6-30P plug, delivering up to about 5.0 kW of power.
- User-configurable alarms warn before critical thresholds are exceeded.
- ACL scale: 16,000 entries; QoS scale: 2,048 class/policy maps, 8,192 policers/shapers
- Fully compatible with Meraki Advanced/Enterprise features
- Refurbished, tested, and ready for deployment
- PDU Type: Metered Rack PDU (monitors total load)
- Input Voltage: 200 V, 208 V, or 230 V AC nominal
- Output Voltage: 208 V AC
- Load Capacity: ~4992 VA (≈5.0 kW)
- Operating Elevation: 0–10,000 ft (0–3048 m)
- Storage Temp/Humidity: –25 °C to 65 °C, 5 %–95 %
- Input Frequency: 50 / 60 Hz
- Dimensions (H × W × D): ~3.46″ × 17.48″ × 4.41″ (~88 mm × 444 mm × 112 mm)
- Operating Temperature: 32° to 104°F (0° to 40°C)
- APC AP7811B PDU
- Cord retention bracket(s) (to secure the power cord in place)
- Rack mounting brackets for installing the PDU in a standard 19″ rack enclosure
- Installation guide with instructions for setup and mounting
- User manual / safety guide with operating details and safety information
