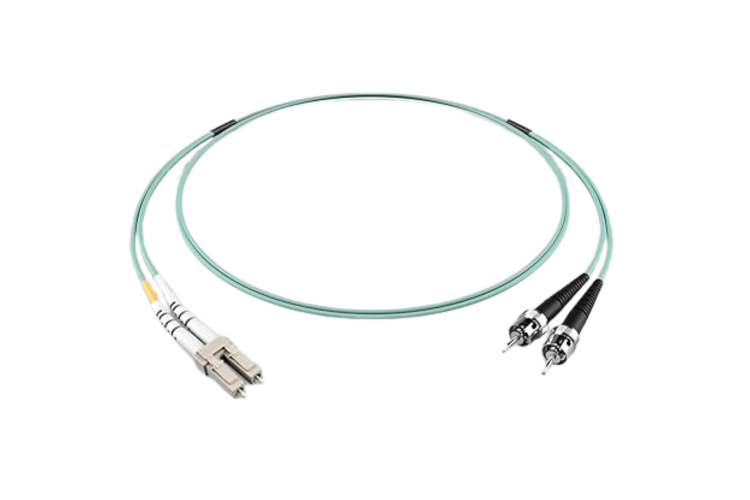

1M LC-ST OM4 40G 50/125 Multimode Duplex UPC Fiber Patch Cable

Model: F4MD5-LCST-01
1M LC-ST OM4 40G 50/125 Multimode Duplex UPC Fiber Patch Cable
Ships Tuesday
$5.07

Volume Pricing
1-9 10-49 50-99 100+
$5.07 $4.92 $4.77 $4.56
100% Satisfaction Guarantee
Free Returns
Same Day Shipping
Quick Specs
Length1 mProduct TypeCables
Connector 1LCConnector 2ST
Cable TypeMultimode Fiber (MMF)ModeMultimode
Connector TypeFCFiber StrandsDuplex
Core Size50 MicronConnectorsLC
Package Quantity1JacketLSZH
Polish TypeUPC (Ultra Physical Contact)Mode ConditioningNo
Jacket ColorAquaCore MaterialCorning Glass
BrandCablesAndKitsOM RatingOM4
Description

F4MD5LCST01 | Fiber Optic Cables | LC-ST OM4 40G 50/125 Multimode Duplex UPC | 1 meter | Aqua | New

The F4MD5LCST01 LC-ST OM4 40G Fiber Optic Patch Cable is a high-performance multimode duplex fiber cable designed for fast and reliable data transmission in enterprise and data center environments. Built with OM4 laser-optimized 50/125 µm multimode fiber, it supports high-bandwidth applications including 10G, 40G, and 100G Ethernet links over short to medium distances.

Lifetime Warranty Badge

Features:

  • OM4 laser-optimized multimode fiber (50/125 µm core/cladding)
  • LC to ST connector configuration
  • UPC polished connectors for low loss and high signal integrity
  • Duplex (2-fiber) design for bidirectional communication
  • Supports high-speed networks up to 40G/100G applications
  • Aqua jacket for OM4 identification and durability
  • 1-meter length for short-reach interconnects in rack environments

Quick Specs:

Connectors LC to ST Connector
Strands 2 Strands
Cladding Size 125 Micron
Core Size 50 Micron
Mode Multimode
Optical Mode OM4 50/125μm
Max Attenuation @ 850nm 3.5dB
Max Attenuation @ 1300nm 1.5 dB
Insertion Loss: 0 dB or lower
Return Loss: 20db or higher
Length 1 Meter

Warranty
Awesome is GUARANTEED.

Risk Free Purchase, Hassle Free Returns. AWESOME is GUARANTEED

After receiving your order, take a full month to try it out. If you decide it's not right for you, or if you're not completely satisfied in every way - if it's not AWESOME, we'll take it back and refund your money. Your complete satisfaction is GUARANTEED or your money back. That's Awesome.

Awesome That Never Ends.

Everything you purchase from CablesAndKits is covered by a LIFETIME Warranty including a LIFETIME Advance Replacement Guarantee. The AWESOME never ends.

We understand that in the event of a product malfunction or failure long downtimes are not an option. If you experience a malfunction or failure with a product at any point during your ownership we'll ship a replacement the same day you report the issue. We'll even expedite the shipment if requested, with an effort to provide a delivery date and time that meets your needs. That's Awesome.

Terms and Conditions apply. Click here for details.

Reviews
Questions & Answers
Consent Preferences
Polish Type UPC (Ultra Physical Contact)
Color Aqua
Jacket Material LSZH
Jacket Size 2.0 mm to 3.0mm
Installation Tensile Load 100 N
Long Term Tensile Load 50 N
Operating Temperature -20°C to +70°C (≈ -4°F to +158°F)
Storage Temperature -40°C to +85°C
RoHS Compliant Yes
Warranty Lifetime
