1000Ft Shielded 18AWG/2 Power CMR White
| Length | 1000 ft | Color | White |
| RoHS Compliant | Yes | Brand | CablesAndKits |
| Gender | Female to Female | Length - Feet | 1000 |
| Length - Meters | 305 |
Power Wire | Shielded 18AWG/2 CMR | 1000 ft. | White | Data Cables | Lifetime Warranty
This 1000 ft. Shielded 18AWG/2 CMR Power Wire is a premium low-voltage cable engineered for dependable power and signal transmission across residential, commercial, and industrial settings. It includes two 18 AWG stranded copper conductors and a foil shield with a drain wire, providing strong protection against EMI and RFI for clear, interference-free signal delivery.
Features:
- Conductor: 2 x 18 AWG stranded bare copper
- Shielding: Aluminum foil shield with drain wire for interference protection
- Jacket: CMR-rated PVC, White

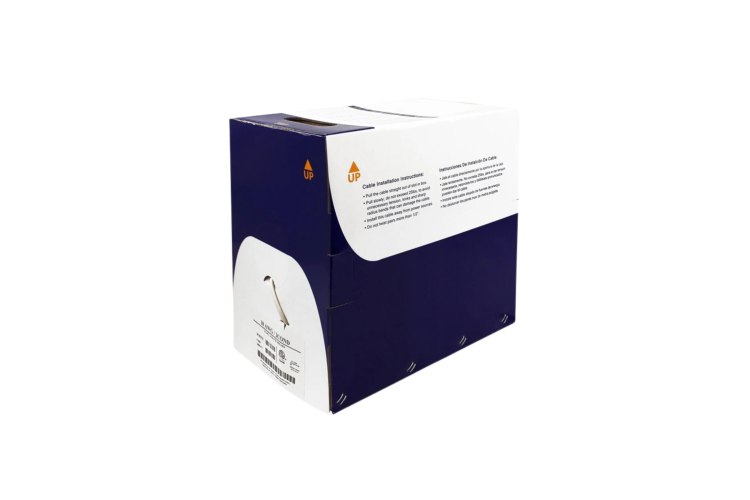

- Length: 1000 feet (convenient pull box)
- Certifications: UL Listed, RoHS Compliant
- Temperature Rating: -20°C to +60°C
- Standards Compliance: NEC Article 725 (CL3R/CMR use)
Specifications:
- Voltage Rating: 300V
- Current Capacity: Approx. 10 amps
- Resistance: ~6.5 ohms per 1000 ft.
- Outer Diameter: Approx. 0.28 – 0.32 in.
- Packaging Type: Tangle-free pull box
- Weight: Approx. 30–40 lbs
- Insulation Material: PVC (Polyvinyl Chloride)
- Outer Diameter: Approx. 0.19 – 0.22 inches
- Temperature Rating: -20°C to +60°C
Applications:
- Security and Surveillance Systems
- Access Control and intercom wiring
- Low-voltage power distribution
- Building automation systems
- Audio signal transmission
