Powering Up Safely: Why NEMA Connectors Matter
Selecting the right NEMA connector is crucial for safe and efficient power connections across various applications. From household electronics to industrial machinery, they offer a standardized approach that ensures compatibility and reliable performance across different power needs.
This guide explains the different types of NEMA connectors and their specifications. It helps you choose the right connector for your equipment, whether you’re setting up at home, in the office, or in an industrial environment.
What is a NEMA Connector?
A NEMA connector is a type of electrical plug or socket that follows specific design standards established by the National Electrical Manufacturers Association (NEMA). These standards define the shape, size, and pin configuration of the connectors to ensure they meet safety, compatibility, and performance requirements for various electrical applications.
Decoding NEMA Configurations
NEMA connectors come in various configurations, such as:
Each configuration serves specific settings, whether residential, commercial, or industrial. The code used to describe each connector provides essential information about its type and capacity.
Let's break down the code using an example: 5-15P
- The first number “5” in the code indicates the type or configuration of the connector, typically used for 125V applications.
- The second number “15” specifies the amperage capacity it can handle. It tells us this connector can handle a maximum of 15 amps of current.
- The letters "P" and "R" further define the connector's design. "P" stands for a plug (the male end), while "R" indicates a receptacle (the female end).
This system helps select the right connector based on different applications' power and voltage requirements.
Choosing the Perfect NEMA Connector: Key Factors to Consider
To ensure you choose the correct NEMA connector for your application, consider the following key factors:
-
Determine Device Power Needs:
Check your device’s specifications for voltage, amperage, and connector type requirements to ensure compatibility with the power cord.
-
Connector Type & Compatibility:
Matching connector types is essential to avoid compatibility issues. For example, a 5-15P to C13 cord is ideal for connecting a power source to equipment requiring a C13 connection, commonly found on computers and networking equipment.
-
Voltage and Amperage Ratings:
Voltage (e.g., 125V, 250V) and amperage ratings (e.g., 10A, 15A, 20A) indicate the power a cord can handle. Choosing the right ratings ensures safe power delivery without overloading circuits. Always match the device’s power needs to the connector’s specifications for reliable performance.
-
Wire Gauge (AWG):
Wire gauge, measured in AWG (American Wire Gauge), determines the wire’s thickness and current-carrying capacity. A lower AWG number signifies a thicker wire. For example, 12 AWG cords are suitable for high-power devices, while 18 AWG is sufficient for lighter electronics.
-
Cord Length & Flexibility:
Cord length impacts flexibility and placement options. Shorter cords (e.g., 1ft) reduce clutter and are ideal for close setups, while longer cords (e.g., 10-15ft) offer more reach and are suitable for larger workspaces. Ensure the length you choose fits your setup without creating unnecessary slack.
-
Environment & Durability:
Select durable cords with jackets like SJT for harsh environments to withstand wear and environmental factors. Standard indoor cords suffice for home and office use, while industrial applications often benefit from shielded or ruggedized cables.
Common NEMA Connector Types and Applications
Discover a wide selection of NEMA connectors at CablesAndKits.com. Whether you need power solutions for Cisco devices, workspace setups, or industrial applications, our range offers reliable options to keep your equipment securely connected.
-
NEMA 1-15P to C7 Connector
Specifications: 1-15P to C7 connector, 18 AWG, 10A/125V rating
Ideal Applications: Designed specifically for Cisco 830, 850, and 870 series power supplies, this power cord ensures reliable performance for consumer electronics and double-insulated devices. It offers flexibility and a secure connection for small networking setups.
Need a reliable power source for your Cisco 830, 850, or 870 series? Order the 1-15P to C7 connector here.
-
NEMA 5-15P to C15 Connector
Specifications: 5-15P to C15 connector, 14 AWG, rated for 15A/125V
Ideal Applications: Suited for computers, networking devices, and other equipment needing higher current. The 10-foot length makes it versatile, allowing flexibility for workstations or equipment that need more room for setup.
Upgrade your power setup with the versatile NEMA 5-15P to C15 connector – grab yours today!
Upgrade your power setup. grab your 10ft 5-15P to C15 power cord today.
-
NEMA 5-15R to C14 Connector
Specifications: 5-15R to C14 connector, 18 AWG, rated for 10A/125V
Ideal Applications: Perfect for close-range connections, such as monitors, computers, or other electronics where a shorter cable is advantageous to reduce excess slack and maintain an organized workspace.
Keep your workspace organized with the compact NEMA 5-15R to C14 connector – order now!
-
NEMA 5-15P to C5 Connector
Specifications: 5-15Pto C5 connector, 18 AWG, rated for 10A/125V
Ideal Applications: This short extension cable is designed for small or home office setups. It offers enough length to minimize clutter, making it ideal for spaces that only need a slight extension. Its compact build helps keep your workspace clean and organized.
Extend power effortlessly with the NEMA 5-15R to 5-15P extension cord. Shop now and streamline your workspace.
-
NEMA 5-20P to C19 Connector
Specifications: 5-20P to C19 connector, 12 AWG, rated for 20A/125V
Ideal Applications: A solid choice for industrial environments and high-power equipment. The robust 20A capacity is well-suited for heavy-use devices, data center equipment, and machinery requiring secure and stable power.
Equip your high-powered devices with the robust NEMA 5-20P to C19 connector – get yours today!
-
NEMA 6-20P to C19 Connector
Specifications: 6-20P to C19 connector, 12 AWG, rated for 20A/250V
Ideal Applications: This cable is tailored for Cisco Catalyst 4500 series networking setups, delivering sufficient length and power capacity for high-demand networking environments and enterprise-level installations.
Enhance your network reliability with the high-capacity NEMA 6-20P to C19 connector, perfect for the Cisco Catalyst 4500 series - Grab here.
-

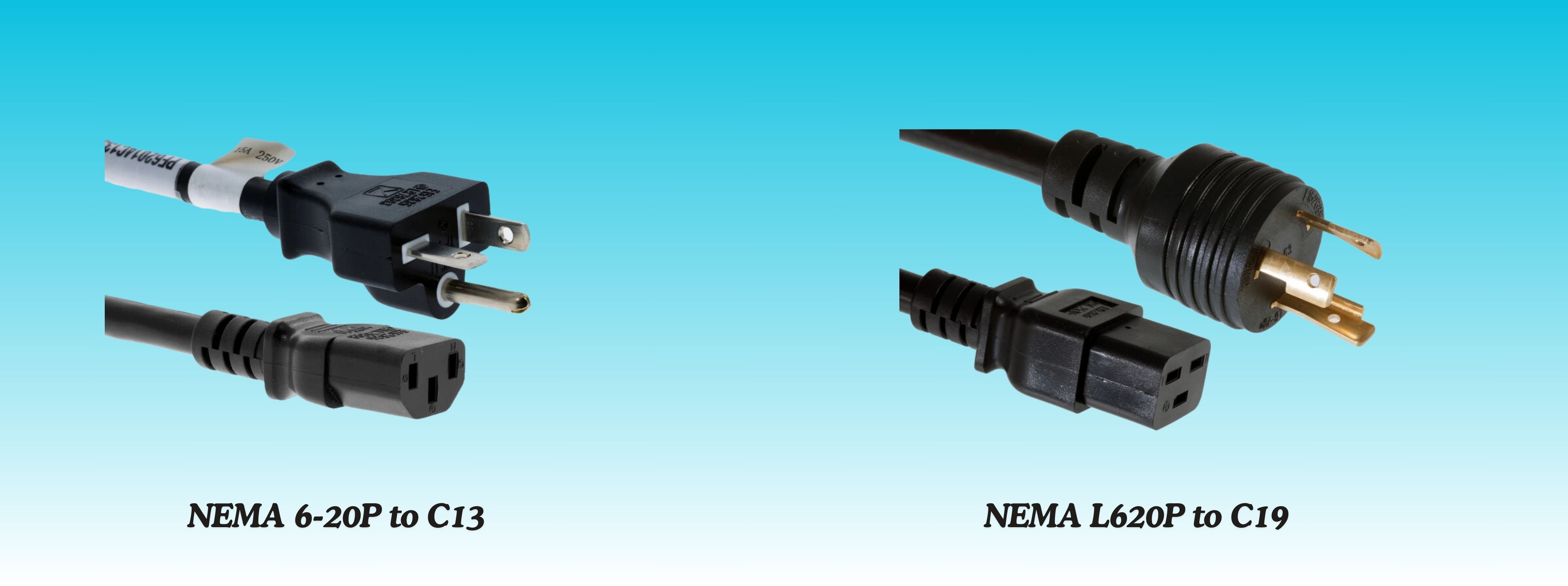

NEMA 6-20P to C13 Connector
Specifications: 6-20P to C13 connector, 14 AWG, rated for 15A/250V
Ideal Applications: Suitable for moderate-power needs in home or business settings, this connector provides a secure fit for networking devices, computing equipment, and standard power applications.
Find the perfect fit for your power needs with the versatile NEMA 6-20P to C13 connector – shop here!
-
NEMA L620P to C19 Connector
Specifications: L6-20P to C19 connector, 12 AWG, rated for 20A/250V, twist-lock feature
Ideal Applications: Designed to meet high-current demands with a secure twist-lock feature, this cable is ideal for data centers and industrial setups, especially where Cisco Catalyst equipment is in use, reducing accidental disconnections and ensuring stability.
Secure your connections and prevent accidental disconnections with the NEMA L620P to C19 twist-lock cord – get yours today!
Installation and Maintenance
To ensure NEMA connectors' optimal performance and safety, follow proper installation practices, maintain cable integrity, and effectively troubleshoot common issues.
-
Proper Installation Practices
Always match voltage and amperage specifications with your device’s requirements. Avoid bending or kinking cords to prevent internal damage, which can compromise performance.
-
Maintaining Connector Longevity
Store cables in dry, safe areas to prevent exposure to environmental damage. Inspect periodically for signs of wear or damage, especially on high-use cables.
-
Troubleshooting Common Issues
Check connections if devices experience power interruptions. Loose fittings or worn cables may need replacement. Avoid using damaged cords, which can cause overheating or fire risks.
Conclusion
Selecting the correct NEMA connector is essential for reliable and safe power connections, whether for home electronics or high-power industrial equipment. By understanding key factors like connector compatibility, voltage/amperage ratings, wire gauge, and environmental needs, you can make an informed decision tailored to your setup.
Explore the wide range of NEMA connectors available at cablesandkits.com to find the perfect fit for your equipment. They are safe, efficient, and built to last.
