Boost Your Network Efficiency with High-Speed DAC Cables: No Transceivers Needed

Direct Attach Copper (DAC) cables play a crucial role in modern networking by offering fast, reliable connections for short distances. Whether upgrading your data center or improving your office network, DAC cables provide an affordable and efficient alternative to fiber optics.

With support for data transfer rates of up to 100 Gbps and an easy plug-and-play setup, these cables are ideal for high-performance environments. In this article, we’ll cover everything you need to know about DAC cables, from their types to their key benefits. We will help you choose the right solution for your networking needs.

What Are DAC Cables?

DAC cables are high-speed, copper-based cables designed for connecting networking devices over short distances, especially in data centers. These cables come pre-terminated with SFP (Small Form-factor Pluggable) or QSFP (Quad Small Form-factor Pluggable) connectors which simplify network setup. It eliminates the need for separate transceivers.

Moreover, DAC cables provide a cost-effective solution for short-range connections between switches, routers, and servers. It supports data transfer speeds of 10Gbps, 25Gbps, 40Gbps, and even 100Gbps, depending on the transceiver type. With their plug-and-play functionality, DAC cables offer simplicity, speed, and reliability for efficient network operations.

Types of DAC Cables Based on Transceivers

Here are the following types of DAC Cables based on transceivers.

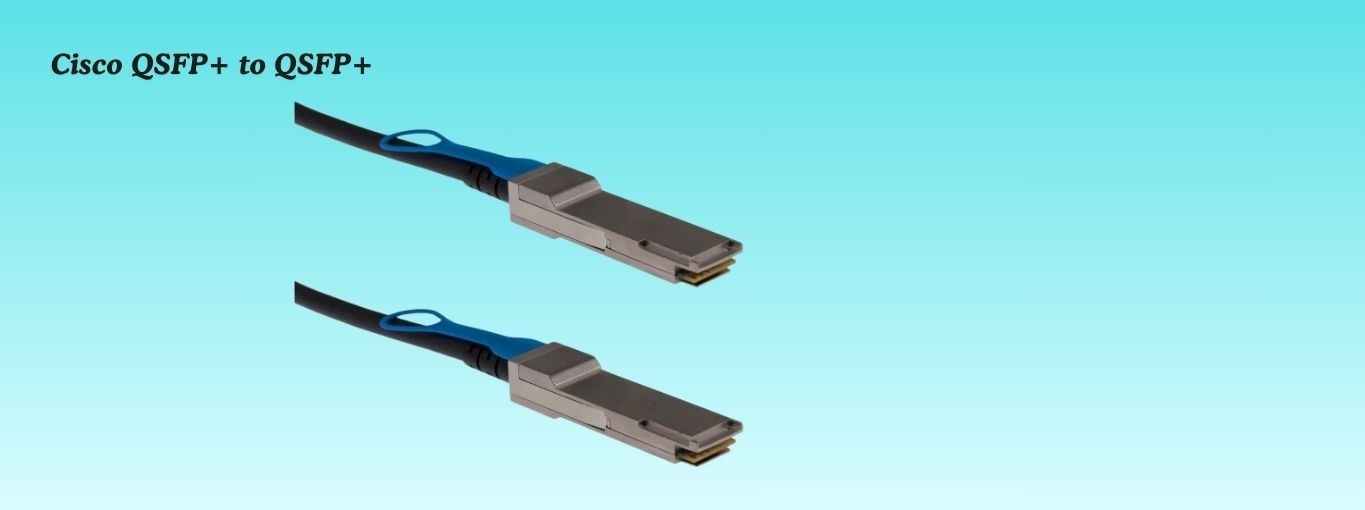

QSFP+ to QSFP+:

DAC cables such as the Cisco QSFP-H40G-CU1M are designed to connect two devices equipped with QSFP+ ports, enabling 40Gbps data transfers. These are ideal for switch-to-switch or switch-to-server connections in high-speed environments like data centers. The cable length is typically short, up to 1 meter, making it suitable for close proximity devices.

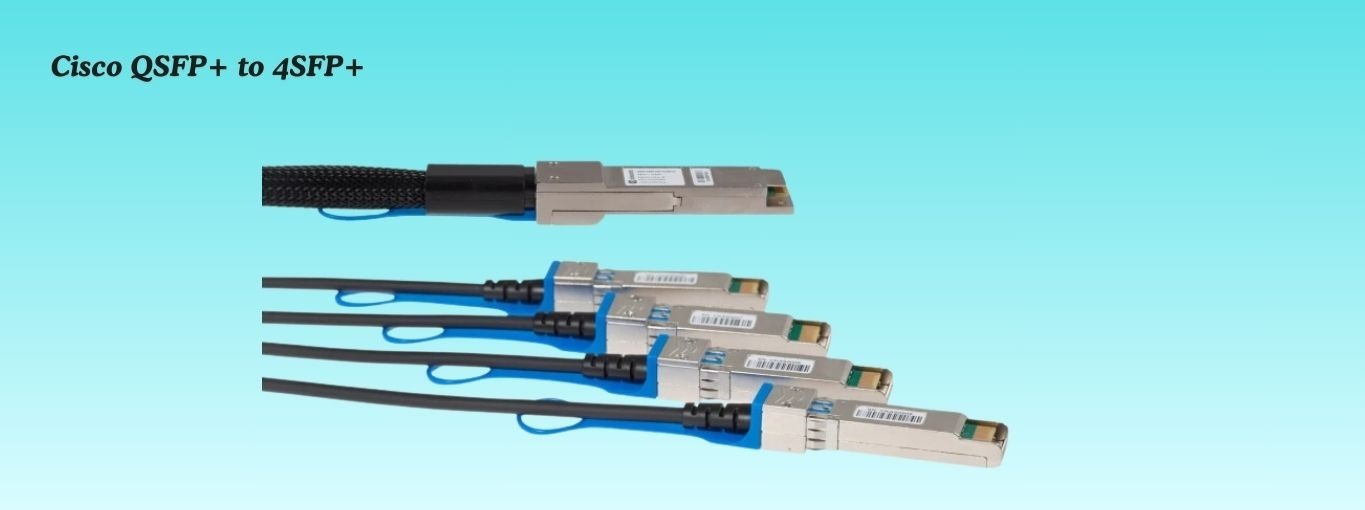

QSFP+ to 4x SFP+:

Breakout cables like the Cisco QSFP-4SFP10G-CU3M allow a single QSFP+ (40Gbps) port to connect to four SFP+ (10Gbps) ports. This type of cable is often used in data centers to split high-bandwidth connections into multiple lower-speed links. It optimizes resource allocation without compromising speed.

SFP28 to SFP34:

Though less common, DAC cables such as the Cisco SFP-H25G-CU2M support connections between devices with different transceiver types and speeds. The SFP28 (25Gbps) to SFP34 (40Gbps) DAC cable is designed to provide flexible, high-speed data transfer options.

Types of DAC Cables Based on Activity

Here are the following types of DAC Cables based on the activity.

Passive DAC Cables:

Passive DAC cables provide a budget-friendly solution for short-distance connections, typically ranging from 5 to 7 meters. These cables are highly energy-efficient as they don’t require external power.

Moreover, Their design is perfect for environments where devices are close together, and there’s no concern about signal loss or degradation. Passive DAC cables offer reliable performance while keeping power consumption low. This makes them an excellent choice for many network setups.

Active DAC Cables:

Active DAC cables are equipped with electrical components to enhance signal strength. It allows for data transmission over greater distances, often up to 10 meters. These cables are ideal when longer connections are required, and signal integrity is crucial.

However, they do consume more power compared to passive DAC cables. Their ability to maintain high-quality connections over longer distances makes them a vital option for specific networking needs.

Applications of DAC Cables

Here are a few important applications of DAC Cables.

Data Centers:

DAC cables are a popular choice for data centers. It offers short-range and high-speed connections between switches and servers. DAC cables provide a cost-effective and reliable solution in densely networked environments. It ensures fast data transfer and streamlined operations.

High-Performance Computing (HPC):

In HPC environments, DAC cables are essential for maintaining ultra-low latency connections between computing nodes. Their ability to handle high-speed data transfers makes them ideal for demanding applications like scientific simulations and real-time analytics, where performance is critical.

Enterprise Networking:

DAC cables are an excellent option for businesses looking to upgrade their network speeds to 10Gbps, 40Gbps, or 100Gbps. Their plug-and-play simplicity and cost-effectiveness make them a top choice for enterprises.

Choose the Right DAC Cable for Your Network

When choosing the right DAC cable for your network, it's crucial to consider the following factors.

• Transceiver Type: When selecting the right DAC cable, the first step is to check its compatibility with your transceivers. For instance, if your network operates with QSFP+ transceivers, a QSFP+ to QSFP+ DAC cable, such as the Cisco QSFP-H40G-CU1M, is the ideal choice.
• Cable Length: It's important to choose a DAC cable length that aligns with the physical distance between your devices. For shorter connections (up to 3 meters), passive DAC cables like the Cisco QSFP-4SFP10G-CU3M work well. However, for longer connections, active DAC cables should be considered.
• Speed Requirements: Ensure the DAC cable supports the data transfer speeds your network requires. For 40 Gbps connections, a QSFP+ DAC cable is recommended, while QSFP28 DAC cables are suitable for higher bandwidth needs, supporting speeds up to 100 Gbps.
• Compatibility: Always verify that the DAC cable you choose is compatible with your network equipment, including switches and routers. Cisco-compatible DAC cables, for example, are engineered to integrate seamlessly with Cisco networking devices.
• Passive vs. Active DAC: For short distances where devices provide adequate signal conditioning, passive DAC cables are a cost-efficient solution. In cases where longer distances or better signal integrity are needed, active DAC cables offer a more suitable option.

DAC Cables vs. Other Cable Types

DAC vs. Fiber Optic: While fiber optic cables can transmit data over longer distances, they are more expensive and require additional transceivers. DAC cables, on the other hand, are ideal for short-range connections and offer a more cost-effective solution without compromising speed.

DAC vs. Ethernet Copper Cables: Traditional Ethernet copper cables, such as Cat6, are limited in terms of speed and distance. DAC cables can support higher data rates, such as 40Gbps and 100Gbps, over short distances, making them better suited for high-performance networking environments.

Conclusion

DAC cables offer an efficient, cost-effective solution for high-speed data transfers in short-range networking environments. Whether for data centers, high-performance computing, or enterprise networks, DAC cables provide seamless, plug-and-play connectivity without the need for additional transceivers.

By understanding the differences between passive and active DAC cables, along with their compatibility and speed requirements, you can choose the best option for your network setup. With the right DAC cable, you’ll ensure faster, more reliable connections, optimizing the performance of your networking infrastructure.

Common Questions About DAC Cables

Q: How far can DAC cables transmit data?

A: Most DAC cables can transmit data up to 7 meters. Active DAC cables can extend this range to 10 meters or more.

Q: What’s the difference between passive and active DAC cables?

A: Passive DAC cables do not require external power and are suitable for short-distance connections, while active DAC cables have built-in electronics to boost signal transmission over longer distances.

Q: Can DAC cables be used for long-distance connections?

A: No, DAC cables are best suited for short-range connections. Fiber optic cables or Active Optical Cables (AOC) are recommended for longer distances.

Q: Are DAC cables compatible with all networking equipment?

A: DAC cables are generally compatible with most networking devices, but it’s essential to ensure that the cable is suited to your transceiver type and network hardware.

Q: What’s the difference between DAC and AOC - Active Optical Cable?

A: DAC cables use copper wiring and are limited to shorter distances, while AOC uses fiber optics and can transmit data over longer distances.
