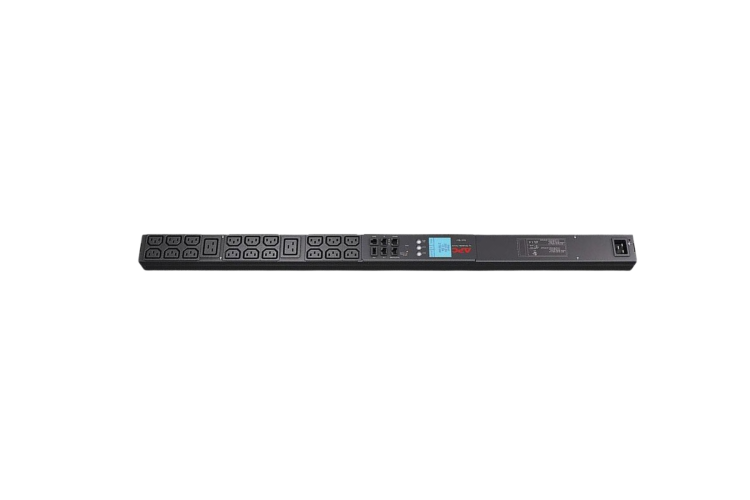

APC Metered 0U Vertical Rack PDU, 30A 208V Power Distribution Unit with (36) C13 & (6) C19 Outlets, AP8841
| Rack Units | 0U | Length | 2.9 m |
| Color | Black | Mount Direction | Vertical |
| RoHS Compliant | Yes | PDU Type | Metered |
| Ac Input Voltage | 200-208 VAC | Brand | APC |
| Input Plug Type | NEMA L6-30P | Line Rated Current | 24 A |
| Mounting Location | Side | Communication Port Protocol | SNMP, Redfish |
| Max Line Current | 30 A |
AP8841 | Power Distribution Units | APC Metered 0U Vertical Rack PDU, 30A 208V Power Distribution Unit with (36) C13 & (6) C19 Outlets | NIB
The APC AP8841 is a metered 0U vertical rack PDU designed for high-density data center and IT environments. It operates at 30A, 208V and features 36 C13 and 6 C19 outlets for reliable power distribution. The space-saving vertical design preserves rack space, while built-in metering provides real-time load monitoring for safer operation and improved capacity planning.
Packaging Includes PDU, Installation guide, Cord retention brackets, Rack Mounting brackets, Toolless Mounting Kit.
Features:
- Metered Load Monitoring – Provides real‑time current and power usage readings to help prevent overloads and support capacity planning.
- High Voltage Capacity – Rated for 30A at 208V to support enterprise‑grade equipment.
- Outlet Configuration – Includes 36 IEC C13 and 6 IEC C19 outlets for versatile device connectivity.
- 0U Vertical Mounting – Space‑saving design mounts along the rack’s side, preserving valuable space for servers and networking gear.
- Reliable Power Distribution – Engineered by APC for consistent, efficient power delivery in demanding IT environments.
- Durable Construction – Built to withstand the rigors of data center and high‑density rack deployments.
- AC Frequency: 50–60 Hz
- Overload Protection: Integrated circuit protection
- Real‑time metering for amps, volts, and energy usage to aid capacity planning and prevent overloads
- Dimensions (HxWxD): ~70.5″ × 2.2″ × 1.7″ (1791 × 56 × 44 mm)
- Operating Relative Humidity: 5 %–95 %
- Certified to CSA C22.2 No. 60950, UL 60950‑1, IEC 60950, VDE, RoHS, REACH
