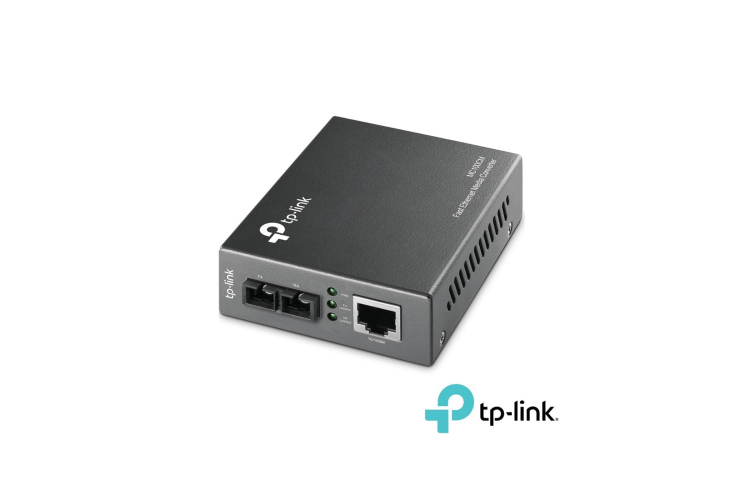

TP-Link MC100CM 10/100M Multi-Mode SC Media Converter, 2km Range – 100Base-FX to 100Base-TX
| Cable Type | Multimode Fiber (MMF) | Mode | Multimode |
| Connector Type | SC | Brand | CablesAndKits |
RJ45 Cat6A Shielded Modular Plug for Stranded Cable | 3PC Type | 50 Micron Gold Contacts | 100-Pack
The TP-Link MC100CM is a compact and reliable 10/100Mbps media converter, designed to bridge 100Base-FX fiber and 100Base-TX copper Ethernet connections. Ideal for extending network reach in business or industrial environments, it uses multi-mode fiber with an SC-type interface to transmit data up to 2 kilometers (1.2 miles) at full wire speed. Compliant with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, this converter supports Auto-negotiation of duplex mode and Auto MDI/MDI-X for seamless integration with existing equipment. Operating at 1310nm wavelength, the MC100CM ensures consistent and efficient data transmission using longwave (LX) laser technology. It includes a DC 9V 600mA power adapter and is ideal for applications requiring fiber connectivity between switches, servers, or remote locations.
Key Features:
- Converts 100Base-FX fiber to 100Base-TX Ethernet and vice versa
- Supports SC-type multi-mode fiber, transmission range up to 2km
- Auto-negotiation for Half/Full-Duplex transfer modes
- Auto MDI/MDI-X for flexible Ethernet port configuration
- Complies with IEEE 802.3u standards
- Operates at 1310nm wavelength
- Power adapter included (DC 9V 600mA)
- Plug-and-play, easy setup
Specifications:
- Interface: 1 × SC Fiber Port, 1 × RJ45 Ethernet Port
- Data Rate: 10/100Mbps
- Fiber Type: Multi-mode
- Wavelength: 1310nm
- Max Distance: 2km
- Standards: IEEE 802.3u
- Power Supply: DC 9V/600mA (included)
