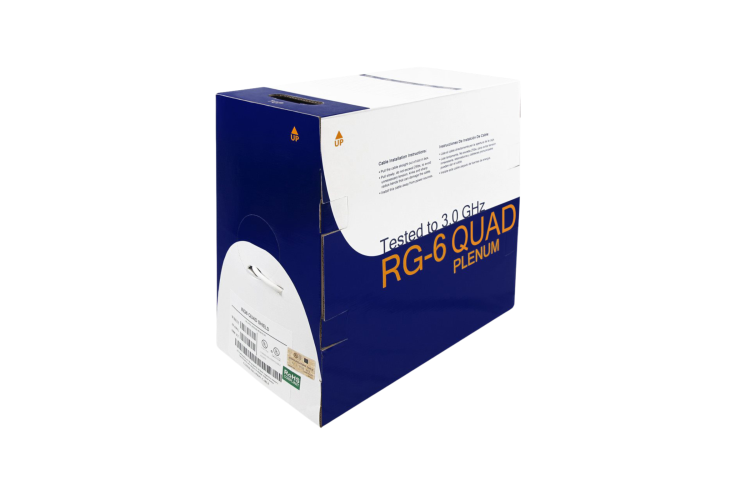

1000Ft RG6 CCS CMP (Plenum) Quad Shield Coax Cable White
| Length | 1000 ft | Color | White |
| Shielded | Yes | Connectors | RG6 - RG6 |
| AWG | 18 AWG | Conductor Material | Copper Clad Steel |
| UL Listed | Yes | RoHS Compliant | Yes |
| Brand | CablesAndKits | Gender | Female to Female |
| Jacket Material | Plenum (CMP) | Length - Feet | 1000 |
| Length - Meters | 305 |
RG6 | CCS CMP Plenum Quad Shield Coaxial Cable | 1000 ft. | White | Data Cables | Lifetime Warranty
Engineered for reliable, high-performance signal delivery in both residential and commercial settings, this RG6 CMP Plenum-Rated Coaxial Cable offers a combination of robust shielding and fire-resistant design. It includes a Copper-Clad Steel (CCS) center conductor and a quad shield configuration—two layers of aluminum foil and two layers of aluminum braid—to provide strong defense against electromagnetic (EMI) and radio frequency interference (RFI).
Features:
- UL Listed
- RoHs Compliant
- 18AWG CCS Core Wire
- CMP (Plenum) Rated
- Quad shield
- White Color Jacket
Specifications:
- Impedance: 75 Ohms – ideal for RF signal applications
- Dielectric Insulation Foam Polyethylene (FPE)
- Shielding Quad Shield – 2 layers of aluminum foil + 2 layers of aluminum braid
- Jacket Material CMP-Rated Plenum PVC – Low smoke, flame-retardant
- Weight ~38–45 lbs per 1000 ft
- Outer Diameter Approx. 0.28 in. (7.1 mm)
Pros of RG6 CCS CMP Plenum Quad Shield Coaxial Cable:
- Fire-Safe for Plenum Spaces
- Strong EMI/RFI Protection
- Durable and Cost-Effective Conductor
- Indoor-Rated for Vertical Installations
- Professional Appearance
Cons of RG6 - CMR CCS Quad Shield Coaxial Cable:
- Higher Cost Than Riser or Non-Shielded Cables
- Copper-Clad Steel = Lower Conductivity
- Indoor Use Only
- Less Flexible
- Requires Code Compliance Knowledge
- Over-Engineered for Low-EMI Environments
Applications:
- CATV and Satellite TV (e.g., Dish, DirecTV)
- Broadband Internet (DOCSIS)
- Indoor video and RF signal distribution
- Surveillance systems (CCTV)
