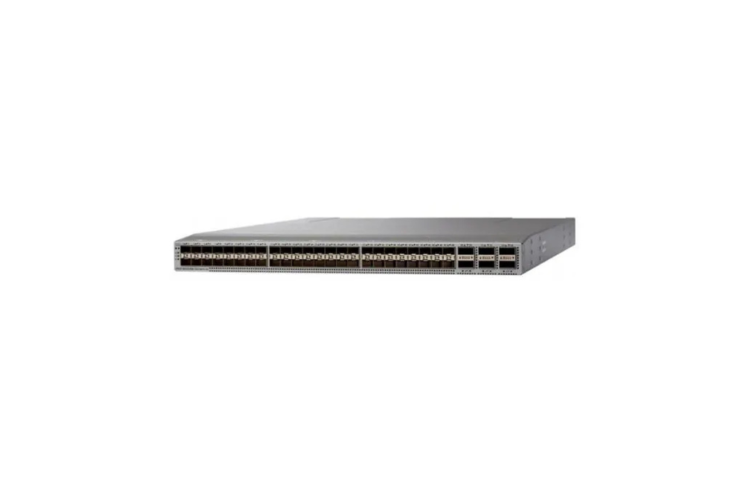

Nexus 9300 with 48p 1/10G/25G SFP28 ports and 6p 40G/100G QSFP28 ports, N9K-C93180YC-FX3, NIB
| Port Quantity | 48 | Series | Cisco Nexus 9300 |
| Rack Units | 1RU | Software | Cisco NX-OS |
| OSI Layer | L3 | Stacking | None |
| Deployment Pack | No | Hot Swappable Modules | No |
| Hot Swappable Fans | Yes | Hot Swappable Power Supply | Supports Duals |
| Energy Efficient | Yes | Port Speed | Multigigabit |
| Ram | 24 GB | Flash | 64 GB |
| Ports | 48 1/10G/25G SFP + 6 40G/100G QSFP28 | Min Operating Temp | 32°F |
| Max Operating Temp | 104°F | Jumbo Frame Support | 9216 bytes |
| Predicted Reliability | 390,330 hours | Mac Addresses | 256,000 |
| Vlan Ids | 4096 | Min Storage Temp | -40°F |
| Max Storage Temp | 158ºF | Operating Humidity | 5 - 95% (non-condensing) |
| Storage Humidity | 5 - 95% (non-condensing) | Ac Input Voltage | 100 to 240 VAC |
| Fans | 4 Total, Redundant | Stacking Bandwidth | - |
| Unicast Routes | 32k | Available PoE Power | No PoE |
| Forwarding Rate Based On 64-Byte Packets | - | Power Specifications | 100-240VAC, 50-60Hz |
| Uplink Interfaces | 6 40G/100G QSFP28 | Switched Virtual Interfaces (SVI's) | 1000 |
| Brand | Cisco | Total Multi-Gigabit Ethernet Ports | None |
| Switching Capacity | 3.6 Tbps | Switching Capacity W/Stacking | - |
| Forwarding Rate W/Stacking | - | QoS Scale Entries | - |
| ACL Scale Entries | 18000 |
N9K-C93180YC-EX | Cisco Nexus 9000 Series |(48) 1/10G/25G Port | (6) 40G/100G QSFP+ Port | Factory Sealed
The Cisco Nexus 9000 series offers the latest in technology to help you simplify and scale your hybrid IT infrastructure. These switches include multispeed ports (1/10/25/40/100 Gbps) and line-rate encryption. These features allow you to scale your network seamlessly. In addition, these switches include built-in support for Cisco Tetration Analytics as well as Cisco Nexus Data Broker.
The N9K-C93180YC-EX switch includes 48 downlink ports which can be configured to work at a variety of speeds: 1, 10, or 25Gbps. In addition, this switch includes six QSFP+ uplink ports which can support 40 or 100 GB connectivity.
Quick Specs:
| Form Factor | Desktop, Rack Mountable |
|---|---|
| Rack Units | 1RU |
| Software | Cisco NX-OS |
| Memory | 24 GB |
| Network Module Slots | 0 |
| Max VLANs | 3,967 |
| Fans | Hot Swappable |
| Max ECMP Paths | 64 |
| Frequency (AC) | 50-60 Hz |
| Manufacturer | Cisco |
|---|---|
| Power Over Ethernet (PoE) | No |
| MAC Address Entries | 256,000 |
| Stackable | No |
| Max LPM Routes | 896,000 |
| Max Multicast Routes | 32,000 |
| Max Port Channels | 512 |
| Mean Time Before Fail (MTBF) | 390,330 hours |
| Product Line | Cisco Nexus |
Environmental Parameters:
| Min Operating Temperature | 32F |
|---|---|
| Max Operating Temperature | 104°F |
| Humidity | 5 to 95% noncondensing |
| Min Storage Temperature | -40°F |
|---|---|
| Max Storage Temperature | 158°F |
Weight & Dimensions:
| Height | 1.72 in |
|---|---|
| Width | 17.3 in |
| Depth | 22.5 in |
|---|---|
| Weight | 17.2 lbs |
