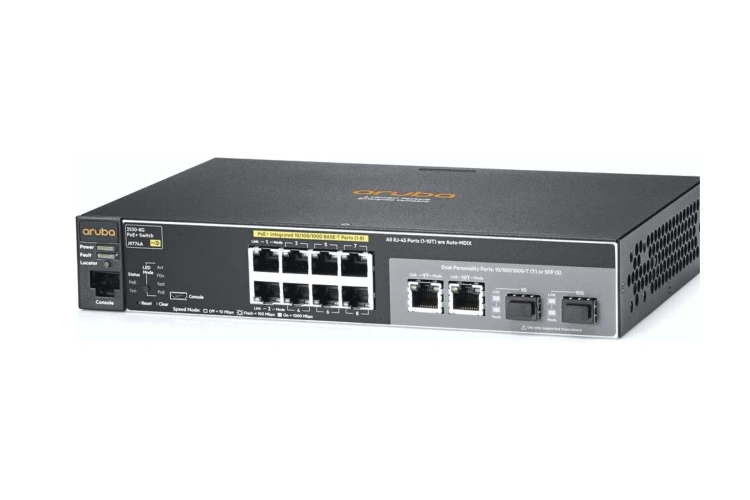

HPE Aruba 2530 Series Switch, 8 10/100/1000 PoE+ ports, 2 x SFP Uplinks, Refurbished, J9774A
Port Quantity | 8 | Series | Aruba 2530 |
Rack Units | 1RU | Software | Aruba OS |
OSI Layer | L2 | Stacking | Virtual Stacking |
Deployment Pack | No | Hot Swappable Modules | No |
Hot Swappable Fans | No | Hot Swappable Power Supply | No |
Energy Efficient | Yes | PoE Compatibility | PoE+ |
Port Speed | 10/100/1000 | Ram | 256 MB |
Group By | Condition | Poe Budget | 67W |
Flash | 128 MB | Ports | 8 10/100/1000 + 2 x 1G copper or 2 x 1G SFP |
Min Operating Temp | 32°F | Max Operating Temp | 113°F |
Jumbo Frame Support | 9220 bytes | Predicted Reliability | - |
Mac Addresses | 16K | Vlan Ids | 4094 |
Min Storage Temp | -40°F | Max Storage Temp | 158ºF |
Operating Humidity | 15 to 95% (noncondending) | Storage Humidity | 15 to 90% (noncondensing) |
Ac Input Voltage | 100 to 240 VAC | Fans | Fanless |
Stacking Bandwidth | - | Unicast Routes | - |
Available PoE Power | 67W | Forwarding Rate Based On 64-Byte Packets | - |
Power Specifications | 100-240VAC, 50-60Hz | Operating Temp | 32°F to 113°F |
Uplink Interfaces | 2 SFP | Max Active VLANS | 512 |
Switched Virtual Interfaces (SVI's) | - | Brand | Aruba |
DRAM | 256 MB | Total Multi-Gigabit Ethernet Ports | None |
Switching Capacity | 20 Gbps | Switching Capacity W/Stacking | - |
Forwarding Rate W/Stacking | - | QoS Scale Entries | - |
ACL Scale Entries | - | Product Depth | 6.28 in |
Product Height | 1.75 in | Product Width | 10 in |
Rack Units Consumed | 1RU |
HP Aruba 2530 Series Switch | (8) 10/100/1000 Gigabit Ethernet Ports | 2 SFP Uplinks | PoE+ | Lifetime Warranty | J9774A
The Aruba 2530 Series of switches was designed to offer cost-effective, reliable, and secure access layer connectivity for a wide range of uses from enterprise, to branch offices and small to mid-sized businesses. These easy-to-deploy switches feature an energy-efficient design which lowers power consumption for greater energy savings. These rackmount switches come in a wide variety of options including 8, 24, and 48 port models, PoE+ options, Gigabit and Fast Ethernet models as well as compact and fanless models. They are easy to deploy and manage using Aruba AirWave or Aruba Central with Zero Touch Provisioning.
Highlights:
- Fully Managed Layer 2 Switches - These switches deliver Layer 2 capabilities including enhanced access security, traffic prioritization, sFlow, and IPv6 host support. These feature support for 512 active VLANs and 4,094 VLAN IDs
- Wired and Wireless Support - Switch auto configuration automatically configures the switches for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected. Further, Local User Role defines a set of switch-based policies in areas such as security, authentication, and QoS.
- Simplified Configuration and Management - The Aruba Central cloud-based management platform offers a simple, secure, and cost-effective way to manage switches. Additionally, zero-touch-provisioning helps to simplify the installation of the switch infrastructure using DHCP-based processes with AirWave. These switches support both cloud-based Central and on-premise Airwave allowing for flexible management. Users can also choose between a variety of management interfaces including:
- HTML-based easy-to-use Web GUI which allows for configuration of the switch from any web browser
- Robust CLI which provides advanced configuration and diagnostics
- Simple network management protocol (SNMPv1/v2c/v3) which allows the switch to be managed with a variety of third-party management applications
2530 Compatible Transceivers:
- HPE X111 100m Small Form-factor Pluggable (SFP) Lucent Connector (LC) FX transceiver (J9054C)
- HPE X121 1G SFP LC SX transceiver (J4858C)
- HPE X121 1G SFP LC LX transceiver (J4859C)
- HPE X121 1G SFP LC Long Haul (LH) transceiver (J4860C)
- HPE X121 1G SFP RJ45 T transceiver (J8177C)
- Aruba 100 m SFP LC FX 2 km Multi-Mode Fiber (MMF) transceiver (J9054D)
- Aruba 1G SFP RJ45 T 100 m Cat5e transceiver (J8177D)
- Aruba 1G SFP LC SX 500 m Optical Mode OM2 MMF transceiver (J4858D)
- Aruba 1G SFP LC LX 10 km Single-Mode Fiber (SMF) transceiver (J4859D)
- Aruba 1G SFP LC LH 70 km SMF transceiver (J4860D)
- HPE X410 1U Universal 4-post Rack Mounting Kit - Rails (J9583A)
- Accessory Kit - Includes 2 brackets plus screws (5066-2232)
- Universal AC/DC Power Adapter (5066-2164)
- HP 1-15 to C7 Power Cord (8120-6313)
Lifetime Warranty:
Purchase with confidence knowing that your Meraki device comes with a Lifetime Advance Replacement Warranty at no additional cost. We understand that in the event of a product malfunction or failure long downtimes are not an option. If you experience a malfunction or failure with a product at any point during your ownership we’ll ship a replacement the same day you report the issue. We’ll even expedite the shipment if requested, with an effort to provide a delivery date and time that meets your needs. That's Awesome.
Standard Features:
- Simple deployment with Zero-touch provisioning
- Traffic prioritization (IEEE 802.1p) for real-time traffic classification
- Simplified quality of service (QoS) configuration
- Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- Rate limiting establishes per-port ingress-enforced maximums for all traffic or for broadcast, multicast, or unknown destination traffic
- Access control lists (ACLs) accommodate IPv4/IPv6 port and VLAN-based ACLs (IPv6 ACL is supported only on Gigabit Ethernet and 48-port models.)
- 16K MAC address table provides access to many Layer 2 devices
- Secure Sockets Layer (SSL) encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
- IEEE 802.3az reduces power consumption during periods of low data activity on Gigabit Ethernet switches
