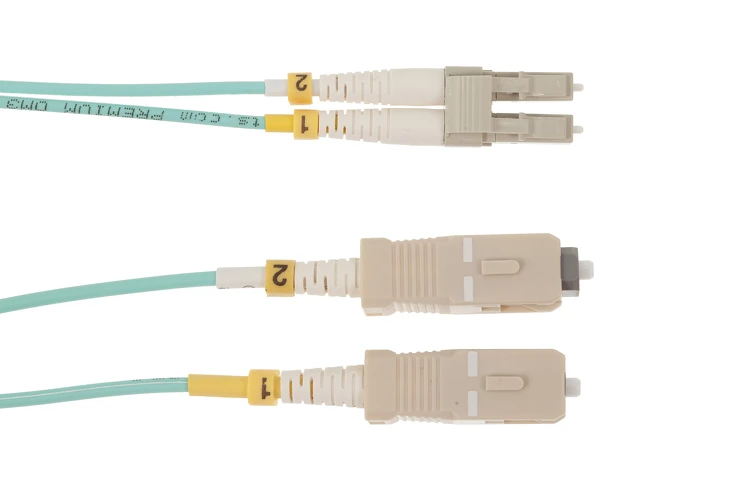

7m LC-SC OM3 Corning Multimode Duplex 50/125 Fiber Optic Cable, 10 Pack
|Length||7 m||Product Type||Corning|
|Connector 1||LC||Connector 2||SC|
|Connector Type||Standard||Fiber Strands||Duplex|
|Core Size||50 Micron||Connectors||LC|
|Polish Type||UPC (Ultra Physical Contact)||Connector Pairs||LC - SC|
|Polish Type 1||UPC (Ultra Physical Contact)||Polish Type 2||UPC (Ultra Physical Contact)|
|Mode Conditioning||No||Jacket Color||Aqua|
|Core Material||Corning Glass||Brand||CablesAndKits|
|Marketplace Package Qty||Pack of 10||Jacket Size||2.0mm|
7 Meters | Premium LC-SC OM3 Fiber Optic Cable | Corning Fiber | Bend Insensitive | Multimode Duplex | LSZH Jacket | 50/125 | Standard Connector | 10 Pack | Lifetime Warranty
Corning Optical Fiber GlassAll of our premium cables are made with Corning ultra-pure glass fibers which ensure the highest degree of strength and purity to give you low attenuation and low signal loss for your whole network. Corning leads the industry in product quality and innovation, and we have brought these strengths into our premium cables.
Bend Insensitive Fiber (BIMMF)Our premium OM3 fiber cables were created with those challenging fiber runs and environments in mind. Bend insensitive fiber (BIF) will transmit light with minimal loss even with bending and twisting beyond the normal bend radius of basic fiber cables. The ring of refraction material around the glass reflects light that is lost back into the core.
LSZH Jacket MaterialThe Low Smoke Zero Halogen (LSZH) jacket material provides you with the safest cabling environment by reducing the amount of toxic and corrosive gas that could be emitted when exposed to extreme heat or during combustion.
Ultra Physical Contact (UPC) PolishWith the Ultra Physical Contact Connectors, these fiber cables will give lower Optical Return Loss (ORL) and Back Reflection than standard PC connectors giving you more reliable signals for data, digital, and telephony applications.
Simple Polarity Reversible FunctionThese OM3 cables allow you to quickly reverse polarity while in the field without the use of any special tools to ensure the correct fiber mapping for optimal data transmission, with fewer cables, in your high-speed, high-density data center space.
2.0mm Unibody CableWith a smaller fiber cable footprint (2.0mm compared to regular fiber cables at 3.0mm), these cables will allow you to optimize your high-density data center environment for better airflow, cooling, and cable management.
|Core Material||Corning Optical Fiber|
|Cladding Size||125 Micron|
|Core Size||50 Micron|
|Max Attenuation @ 850nm||2.8dB|
|Max Attenuation @ 1300nm||1.0dB|
|Insertion Loss:||0.2dB or lower|
|Return Loss:||35db or higher|
|Polish Type||UPC (Ultra Physical Contact)|
|Connection Types||Standard, Push-Pull Tab, & Uniboot|
Connecting 10gig switches and SFP's just got a whole lot easier and faster! Our laser-optimized multimode, 50/125 OM3 fiber cables are the correct choice for longer distances and challenging cabling runs for your network and business. The cables are thinner than basic fiber cables and copper patch cords and they are immune to EMI (Electromagnetic Interference) making them perfect for riser runs and uplink cables. With the high durability, safety and performance you can trust these fiber patch cables to deliver the efficiency and peace of mind that you need for your business.
Our Premium OM3 fiber optic cables are made with Corning optical fiber glass and are designed with superior quality to run your network with the highest performance and reliability. These OM3 fiber patch cables were built to make your network experience lower data transmission loss through less attenuation loss / disruption with more stable speed. Plus, with a 2.0mm outer LSZH (Low Smoke Zero Halogen) jacket, an even safer alternative to only OFNR riser rated cables, these cables are designed to provide the highest protection for businesses, people, and equipment in case of being exposed to high sources of heat, flames, or corrosion.
Premium Fiber Boot Types:
Our premium OM3 fiber cables come in 3 boot/connector types - Standard, Uniboot, and Uniboot Push-Pull Tab, all with LC to LC and LC to SC connections.
The OM3 standard "short boot" and connectors on our premium fiber cables provide you with the normal fiber cable experience with a high quality, unibody connector with the ability to reverse polarity when needed.
OM3 High-density uniboot / unibody fiber optic cables have two fibers carried through a single jacket with a lower profile boot, reducing the size and surface area of the cables when compared to standard fiber optic cables, but continuing to provide the reliable performance from industry standard connectors. Uniboot fiber cables reduce cable management requirements and allow for better airflow. The smaller "short boot" connector on our premium fiber cables makes it easy to reverse the polarity of the cables when needed.
OM3 High-density push-pull tab boots and connectors on these OM3 fiber optic cables have a special tab that will allow easy insertion and removal of the connector without the need to access the boot or connector. The slim, low profile uniboot design allows this high-density installation cabling to be used with minimal cable management and save space in your network setup. These fiber cables have the same type of short boot connector as the regular uniboot/unibody cables, but with the push-pull tab, still allowing you to reverse the polarity when needed.
Our premium fiber cables have been tested and meet the standards for fire rating (OFNR), Riser Rating, IEC, Telcordia, UL and RoHS.
Additional Fiber Products:
Looking for other types of fiber? We offer a wide variety of Fiber Cables including different types of connector pairs, Premium fiber, and Uniboot with Push Pull connectors!
Your Premium Fiber Cable Toolkit
General Fiber Cabling Videos:
|Whats the difference in the Optical Modes?|
|Whats is a fiber cable?|
