Industrial sites now run on Ethernet for automation, safety, and high-power control. One weak cable can take the whole system down. A single missed packet in these zones can stop conveyor belts, disable security systems, or delay production cycles.
In such environments, signal degradation is more dangerous than bandwidth limitations. Electromagnetic interference (EMI), voltage spikes, or improper shielding not only interrupt communication but also compromise safety.
Shielding is no longer optional. It is the baseline requirement for reliability, data integrity, and standards compliance in industrial Ethernet applications.
Understanding FTP, STP, and S/FTP Cables in Industrial Contexts
Different shield types exist for a reason. The right choice depends on the level and type of EMI in your deployment zone. Let’s break them down:
FTP (Foiled Twisted Pair)
A foil shield wraps the entire cable bundle, providing basic EMI protection. It’s useful in environments with mild to moderate interference, such as control panels away from large motors.
STP (Shielded Twisted Pair)
Each twisted pair is individually wrapped in foil or braid, or a combination of both. This isolates pairs from one another and offers targeted EMI protection, ideal for cables routed near VFDs or switchgear.
S/FTP (Shielded Foiled Twisted Pair)
This is the most robust option. Each pair is individually foil-wrapped, and an overall braid shield wraps the entire bundle. This structure provides maximum protection against EMI, making it perfect for noisy or extended industrial runs.
When to use each:
- FTP: Control cabinets with modest interference.
- STP: Installations near motors or pumps.
- S/FTP: Long cable runs, bundling in trays, or zones with overlapping EMI sources.
Expert Note: Don’t select shielding based on catalog specs. Match the shielding topology to your EMI environment and grounding scheme. It prevents both under- and over-shielding.
How Shielding Reduces EMI in Factories, Panels, and Weld Bays
Industrial Ethernet cables must function in hostile EMI zones. Weld bays, relays, motors, and drive cabinets are all frequent offenders. These components emit high-frequency noise that standard UTP cables cannot reject.
Proper shielding defeats this noise through three key factors:
- Twisted Pair Pitch
Consistent, tight twists ensure signal balance and rejection of common-mode interference.
- Shield Continuity
The shield must remain intact from cable to termination. Breaks or gaps reduce its effectiveness.
- Braid Density
Higher coverage provides better blocking of radiated EMI, especially at higher frequencies.
Improper grounding undermines shielding. Instead of blocking EMI, a floating or unterminated shield can amplify interference.
Troubleshooting Insight: Random device disconnects, camera feed jitter, or sensor dropouts often trace back to ungrounded shielded cables in EMI-rich environments, not to software or switches.
Industrial PoE Cabling: Managing Heat and Shield Integrity
With PoE standards now reaching up to 802.3bt (90W), industrial deployments involve high current flows over long distances. PoE cables are tightly bundled in metal trays, increasing ambient heat and EMI.
Shielded cables must do more than just carry power. They must resist temperature, prevent contact degradation, and avoid grounding faults:
- Heat Dissipation
Shielding materials and jacket types affect thermal flow. PE or LSZH jackets with internal foil can retain heat, increasing attenuation.
- Contact Stability
High-wattage PoE demands strong plug retention and gold-plated contacts. This minimizes arc risk under load.
- Grounding Loop Risk
Metal trays may connect shields from different devices. If grounding is not centralized, this creates ground loops and unexpected currents.
Use 23AWG or 22AWG solid copper conductors in PoE zones. Choose S/FTP structures with bonded foil to keep the signal clean under power load.
Field Example: In overhead tray runs powering PTZ cameras, shielded Cat6a S/FTP cables prevent arc spikes that trip power injectors under thermal strain.
Maintaining Signal Integrity Over Long Industrial Runs
While shielding is often linked to noise rejection, it also preserves signal clarity over longer distances, especially beyond 50 meters.
Unshielded cables risk:
- Signal attenuation
- Crosstalk accumulation
- Impedance mismatch at shield terminations
When to Use Bulk Cable vs Patch Cords
- Bulk cable: Runs over 30m with customized termination.
- Patch cords: Short, flexible segments with factory-tested performance.
Use isolated shielded keystone jacks and grounded metal faceplates to maintain shield continuity. Floating or clipped shields introduce resistance mismatches that degrade performance.
Deployment Tip: For factory runs over 60m, choose S/FTP cable with controlled impedance rating and test both DC resistance and NEXT loss during commissioning.
Use Case-Based Cable Recommendations
Shielded Ethernet cabling performs best when selected for real-world application zones. Below are four cable solutions trusted by experienced teams for durability, EMI protection, and long-term compliance.
- For Motor Cabinets and Drive Panels
In high-interference zones like steel conduit banks or VFD motor cabinets, clarity hinges on shielding. That’s why more teams rely on booted Cat6a S/FTP patch cables with 23AWG conductors. Its double-layer shield structure, foil around each pair plus an overall braid, delivers continuous protection against induced noise, even inside dense cable trays.
- For Long Runs Between Equipment Bays

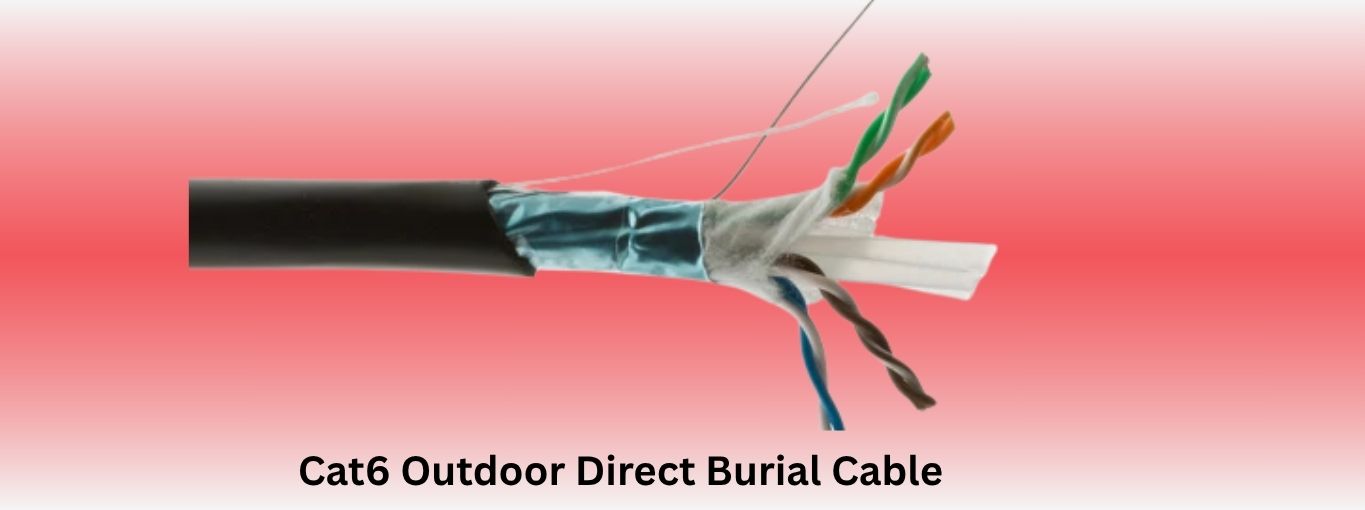

When trenching or outdoor rooftop links are part of the deployment, copper needs more than speed; it needs armor. This direct burial Cat6 outdoor shielded bulk cable includes a gel-filled core, aluminum foil shield, and UV-rated PE jacket. These features prevent signal bleed and block soil acidity and moisture from creeping into conductors.
- For Industrial PoE Uplinks That Need Speed and Protection

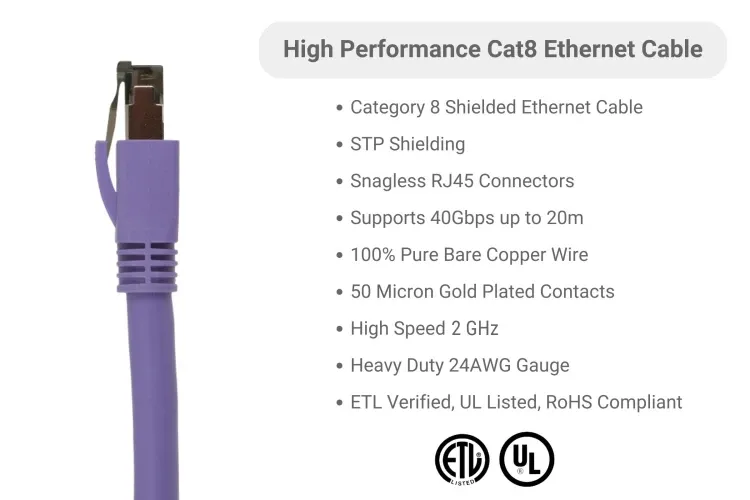

Switch-to-device PoE drops near welders or HVAC controls demand both high throughput and noise immunity. That’s where the Cat8 S/FTP shielded patch cable with 40Gbps capacity performs best. With a 24AWG S/FTP build and 2GHz bandwidth, it’s made for industrial PoE where EMI and heat pressure collide.
- For Cabinets Requiring Full Shield Termination

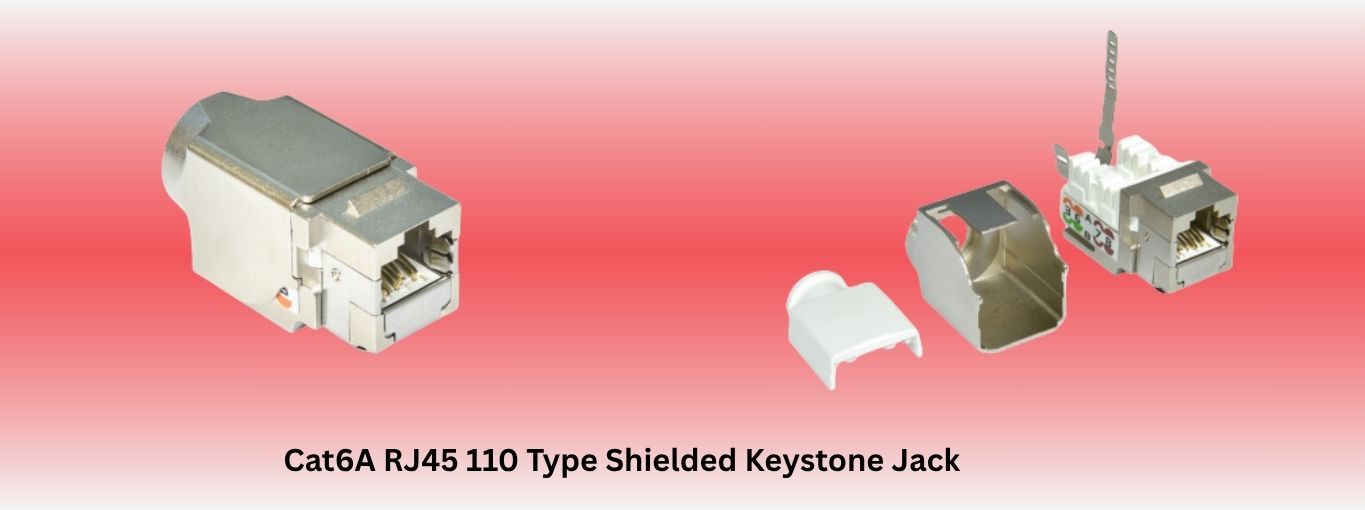

In EMC-sensitive enclosures, continuity isn’t optional; it’s critical. That’s why grounded installations favor the toolless shielded keystone jack with grounding tab. It ensures full shield transfer from cable to panel without floating ground risk, especially when paired with metal wall plates or junction boxes.
Smart Spec Insight: Shield level and conductor gauge matter more than catalog speed ratings. Well-grounded shielded cabling prevents more system downtime than any firewall rule or patch update.
Final Thoughts: Build Shielding Into Your Planning, Not As a Patch
Shielded cabling is not a luxury in industrial networks; it is a design essential that prevents costly failure. The right shielded Ethernet cable keeps automation running, equipment protected, and downtime to a minimum.
In industrial environments, the real threat is not performance lag but lost uptime, safety risks, and hours of troubleshooting, most often traced back to signal degradation rather than the switch.
That’s why smart IT teams spec shielded cables from sources that already meet their standards. CablesAndKits earns that trust by building exactly what experienced pros expect; tested performance that holds up in real industrial conditions.
If reliability matters, shielding should be part of your plan from the start – not a fix after things go wrong!
