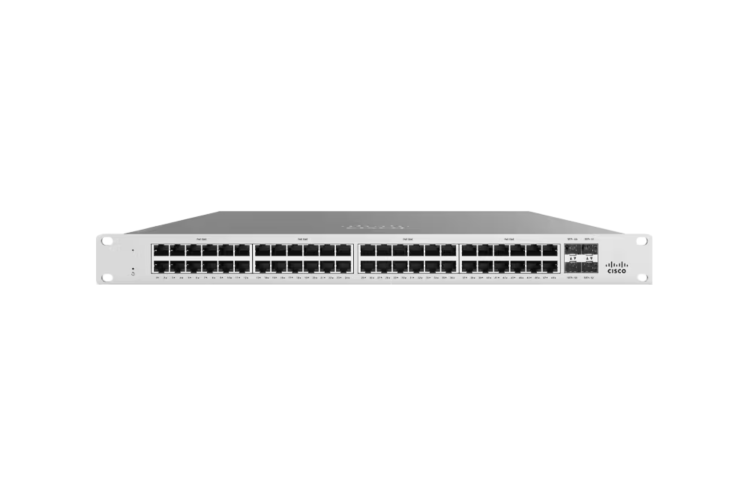

Cisco Meraki Cloud Managed Switch, 48 Gigabit Ethernet Ports, 4 SFP+ Uplinks, PoE/PoE+, MS125-48LP-HW, Unclaimed, Refurbished, Original
| Port Quantity | 48 | Series | - |
| Rack Units | 1RU | Software | Meraki |
| OSI Layer | L2 | Stacking | Virtual Stacking |
| Deployment Pack | No | Hot Swappable Modules | No |
| Hot Swappable Fans | No | Hot Swappable Power Supply | No |
| Energy Efficient | No | Port Speed | 10/100/1000 |
| Ram | - | Flash | - |
| Ports | 48 10/100/1000 + 4 SFP+ | Min Operating Temp | 32°F |
| Max Operating Temp | 113°F | Jumbo Frame Support | 9,578 bytes |
| Predicted Reliability | 287,429 hours | Mac Addresses | 32K |
| Vlan Ids | 4094 | Min Storage Temp | -4°F |
| Max Storage Temp | 158ºF | Operating Humidity | 5 to 95% (non-condensing) |
| Storage Humidity | 5 - 95% (non-condensing) | Ac Input Voltage | 110 to 240 VAC |
| Fans | Internal | Stacking Bandwidth | - |
| Available PoE Power | 370W | Forwarding Rate Based On 64-Byte Packets | - |
| Power Specifications | 100-240VAC, 47-63 Hz | Uplink Interfaces | 4 x 10G SFP+ |
| Brand | Meraki | Total Multi-Gigabit Ethernet Ports | None |
| Switching Capacity | 176 Gbps |
Overview:
- Non-blocking switch with up to 176 Gbps bandwidth support
- 48 ports for gigabit access switching
- 4 x 1G SFP+ uplink interface
- PoE/PoE+ Capable 370W
- 6 configurable QoS queues
- Dynamic power allocation for APs, phones, cameras and virtually any other PoE enabled devices
- Zero-touch provisioning for rapid deployment
- Complimentary advanced replacement and lifetime warranty with purchase
- Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
- Integrated Fan, designed with a fixed internal fan to maintain optimal performance and cooling efficiency.
Tech Specs:
| Ports | (48) x 10/100/1000 + (4) SFP+ |
|---|---|
| Switching Capacity | 176 Gbps |
| Form Factor | Desktop, Rack Mountable |
| Rack Units | 1RU |
| Software | Meraki |
| Subtype | Gigabit Ethernet |
| Fans | Fixed Internal |
| Flow Control Support | Yes |
| Dimensions | 1.73 x 17.32 x 13.38 in |
| Manufacturer | Meraki |
|---|---|
| Power Over Ethernet (PoE) | PoE/PoE+ |
| Jumbo Frame Support | 9,578 bytes |
| Stackable | Virtual Stacking |
| Forwarding Rate | 130 mpps |
| MTBF | 287,429 hrs |
| Available PoE | 370W |
| Weight | 11.9 lbs |
| Warranty | Lifetime |
Standard Features:
- Auto-negotiation and crossover detection
- Zero-touch remote provisioning
- Detailed historical per-port and per-client usage statistics
- Operating system, device, and hostname fingerprinting
- SNMP and Syslog support for integration with other network management solutions
- Automatic firmware upgrades with scheduling control
- Email, SMS, and mobile push notification alerts
- Ping, traceroute, cable testing, and link failure detection with alerting
- Remote packet capture
- Dynamic and interactive network discovery and topology
- Combined event and configuration change logs with instant search
- Integrated multi-factor authentication for cloud management platform
- Role-based access control (RBAC) with granular device and configuration control
- Corporate-wide password policy enforcement
- IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
- Single-Host/Multi-Domain/Multi-Host/Multi Authentication
- Port security: Sticky MAC, MAC whitelisting
- DHCP snooping, detection and blocking
- IPv4 and IPv6 ACLs
Lifetime Warranty:
Purchase with confidence knowing that your Meraki device comes with a Lifetime Advance Replacement Warranty at no additional cost. We understand that in the event of a product malfunction or failure long downtimes are not an option. If you experience a malfunction or failure with a product at any point during your ownership we’ll ship a replacement the same day you report the issue. We’ll even expedite the shipment if requested, with an effort to provide a delivery date and time that meets your needs. That's Awesome.
