Cisco Meraki Cloud Managed Switch, 24 Gigabit Ethernet Ports, 4 SFP Uplinks, PoE, MS210-24P-HW, Unclaimed, Refurbished, Original
| Port Quantity | 24 | Series | MS210 |
| Rack Units | 1RU | Software | Meraki |
| OSI Layer | L2 with L3 Static Routing | Stacking | Virtual & Physical Stacking |
| Deployment Pack | No | Hot Swappable Modules | Yes |
| Hot Swappable Fans | No | Hot Swappable Power Supply | No |
| Energy Efficient | No | Port Speed | 10/100/1000 |
| Ram | - | Flash | - |
| Ports | 24 10/100/1000 + 4 SFP | Min Operating Temp | 23° F |
| Max Operating Temp | 122°F | Jumbo Frame Support | 9,578 bytes |
| Predicted Reliability | 391,648 hours | Mac Addresses | 16K |
| Vlan Ids | 4094 | Min Storage Temp | -4°F |
| Max Storage Temp | 158ºF | Operating Humidity | 5 to 95% (non-condensing) |
| Storage Humidity | 5 - 95% (non-condensing) | Ac Input Voltage | 100 to 240 VAC |
| Fans | Internal | Stacking Bandwidth | 80 Gbps |
| Available PoE Power | 370W | Forwarding Rate Based On 64-Byte Packets | 41.67 mpps |
| Power Specifications | 100-240VAC, 47-63 Hz | Uplink Interfaces | 4 SFP |
| Brand | Meraki | Total Multi-Gigabit Ethernet Ports | None |
| Switching Capacity | 128 Gbps |
Meraki | Cloud Managed | 24 Port | 10/100/1000 | 4 SFP | PoE/PoE+ | 370W | Unclaimed | Refurbished | Lifetime Warranty | MS210-24P-HW

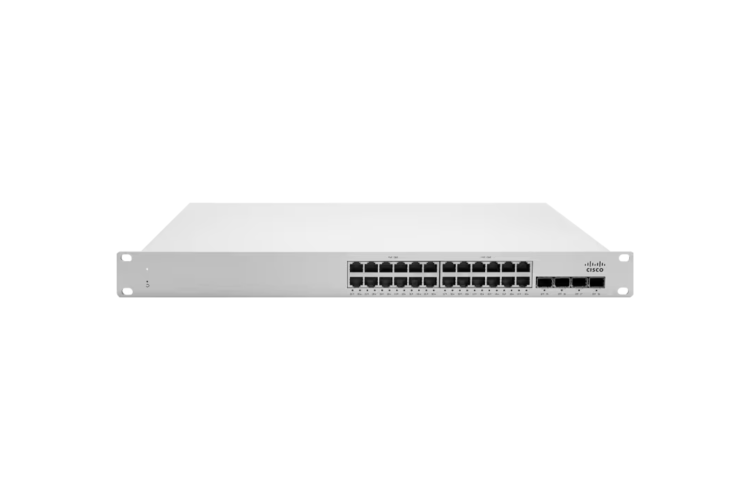

The Meraki MS210-24P-HW is a cloud-managed access layer switch equipped with (24) 10/100/1000 Gigabit Ethernet ports and (4) 1G SFP uplinks for seamless connectivity. It supports both virtual and physical stacking, with compatibility for MS225 series switches and dual stacking interfaces providing up to 80 Gbps of bandwidth. Like all Meraki switches, it offers easy cloud-based management, zero-touch provisioning, and advanced security features. With a switching capacity of 128 Gbps, this refurbished model ensures reliable, high-performance networking.
Highlights:
- Effortless Management with Meraki Dashboard - Easily oversee this switch using Meraki’s cloud-based management platform. The centralized dashboard provides full visibility for monitoring and managing all Meraki devices. With a cloud-driven architecture, provisioning is simplified, enabling zero-touch setup. Configuration templates let administrators define a single switch profile and apply it across multiple devices, reducing manual work while enhancing network security.
- Seamless Virtual Stacking - This switch supports virtual stacking, allowing thousands of ports to be managed as a single logical stack without requiring physical connections. This ensures streamlined monitoring, management, and configuration.
- Advanced Security Features - Equipped with robust security functionalities, this switch includes integrated multi-factor authentication for cloud access, role-based access control (RBAC) with detailed permission settings, corporate-wide password policy enforcement, and more to ensure network integrity.
- Integrated Internal Fan - Designed with a fixed internal fan to maintain optimal performance and cooling efficiency.
Tech Specs:
| Ports | (24) x 10/100/1000 + (4) SFP |
|---|---|
| Switching Capacity | 128 Gbps |
| Form Factor | Desktop, Rack Mountable |
| Rack Units | 1RU |
| Software | Meraki |
| Subtype | Gigabit Ethernet |
| Fans | Fixed Internal |
| Flow Control Support | Yes |
| Dimensions | 1.72 x 19 x 9.05in |
| Manufacturer | Meraki |
|---|---|
| Power Over Ethernet (PoE) | PoE/PoE+ |
| Jumbo Frame Support | 9,578 bytes |
| Stackable | Virtual & Physical Stacking |
| Forwarding Rate | 41.67 mpps |
| MTBF | 391,648 hrs |
| Available PoE | 370W |
| Weight | 8.18 lbs |
| Warranty | Lifetime |
Standard Features:
- Auto-negotiation and crossover detection
- Zero-touch remote provisioning
- Detailed historical per-port and per-client usage statistics
- Operating system, device, and hostname fingerprinting
- SNMP and Syslog support for integration with other network management solutions
- Automatic firmware upgrades with scheduling control
- Email, SMS, and mobile push notification alerts
- Ping, traceroute, cable testing, and link failure detection with alerting
- Remote packet capture
- Dynamic and interactive network discovery and topology
- Combined event and configuration change logs with instant search
- Integrated multi-factor authentication for cloud management platform
- Role-based access control (RBAC) with granular device and configuration control
- Corporate-wide password policy enforcement
- IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
- Multi-Domain/Multi-Host/Multi Authentication
- Port security: Sticky MAC, MAC whitelisting
- DHCP snooping, detection and blocking
- IPv4 and IPv6 ACLs
